13 Jazzy 1143
TURN THIS SCREW TO RAISE OR LOWER ARMREST
I V . C O M F O R T A D J U S T M E N T S

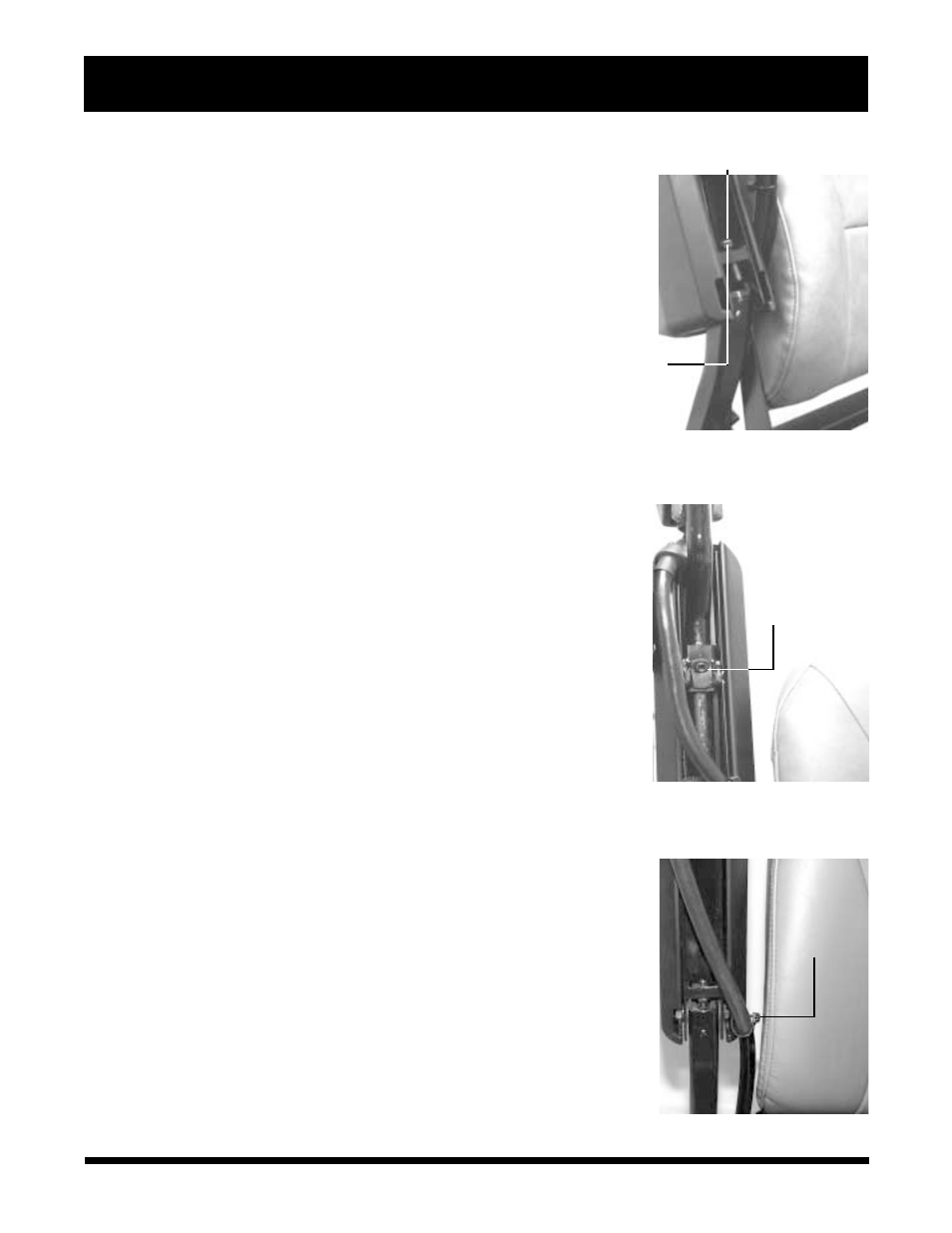

Figure 10. Wire Tie Location
USE A WIRE
TIE TO
SUPPORT THE
CONTROLLER
CABLE
Figure 9. Joystick Extension
LOOSEN THIS
SETSCREW TO
ADJUST
JOYSTICK
LOCKING NUT
LOCKS ADJUST-
MENT
SCREW IN PLACE
Figure 8. Armrest Angle
ARMREST ANGLE
You can adjust the armrest angle to fit your specific needs.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the floor.
2. Use a 7/16-in. wrench to loosen the locking nut. See figure 8.
3. Use a 5/32-in. hex key to loosen the height adjustment screw. Turn
the screw clockwise to raise the front of the armrest and counter-
clockwise to lower the front of the armrest.
4. Lock the adjusting screw into place by tightening the locking nut.
JOYSTICK EXTENSION
The joystick control can easily slide out away from the armrest, or in
toward the armrest.
To extend the joystick:
1. Use a 3/16-in. hex key to loosen the setscrew. See figure 9.
2. Slide the joystick mounting bracket into or out of the armrest to the
desired position.
3. Retighten the setscrew by turning it clockwise.
JOYSTICK POSITION
You can position the joystick for either left-hand or right-hand use.
To change the joystick position:
1. Disconnect the joystick controller harness connectors. Refer back
to figure 3.
2. Cut the wire tie that attaches the controller cable to the armrest.
See figure 10.
3. Use a 3/16-in. hex wrench to loosen the setscrew. See figure 9.
4. Slide the joystick mounting out of the armrest.
5. Loosen the setscrew in the other armrest.
6. Place the joystick bracket in the other armrest.
7. Tighten the setscrew.
8. Connect the controller cable to the armrest with a wire tie. See
figure 10.
ELEVATING LEG RESTS
Elevating Leg Rests (ELRs) provide the Jazzy with the ability to sup-
port each leg individually. Each ELR has a wide range of angle adjust-
ments as well as a foot plate length.
SWING-AWAY LEG RESTS
Swing-away Leg Rests provide the Jazzy with the ability to swing each
leg rest to the side for an easier transfer.
