Pride Mobility Jazzy 1143 User Manual
Page 10
Jazzy 1143
10

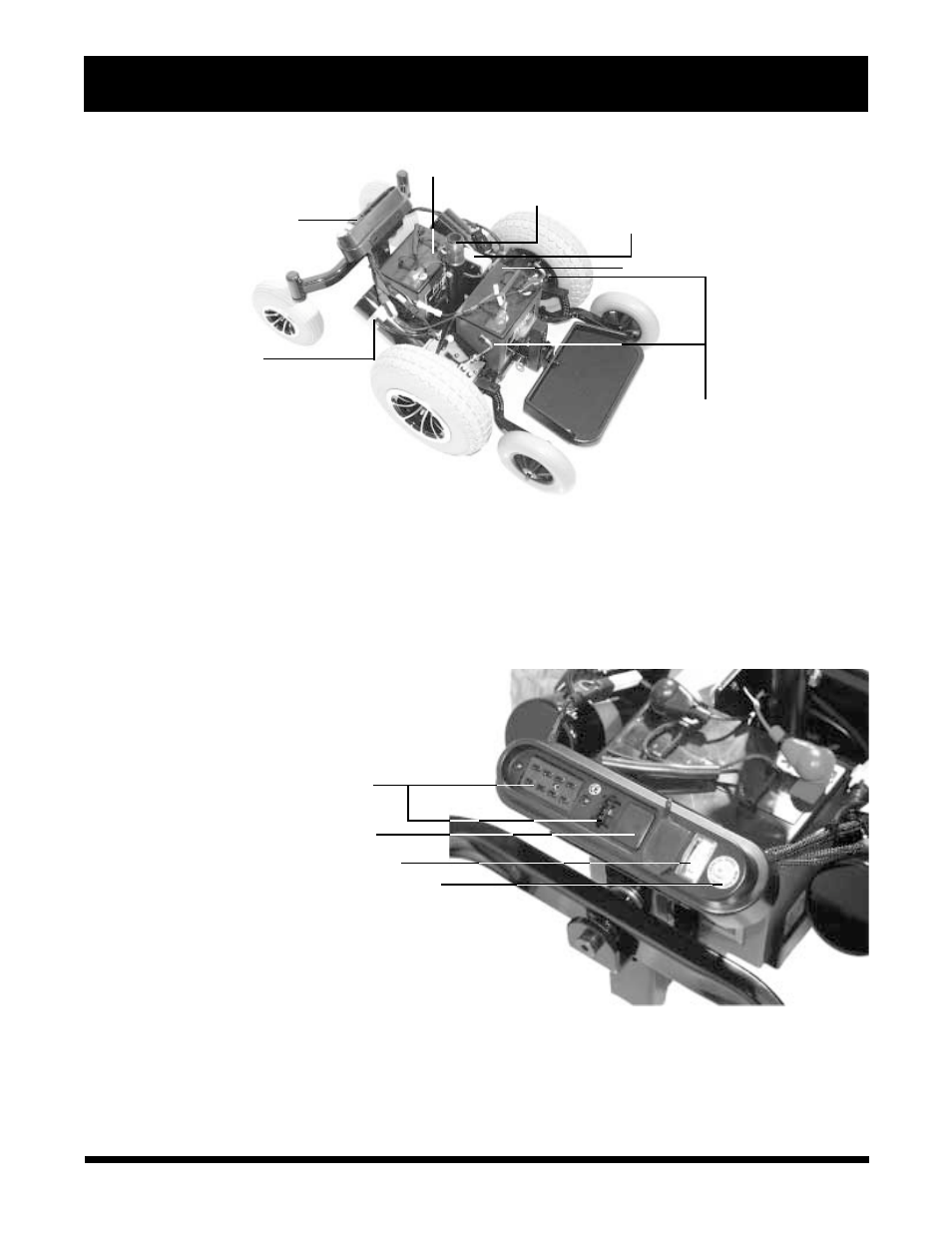

Figure 2. Power Base (Shroud Removed)
I I I . T H E J A Z Z Y 1 1 4 3
MOTOR/BRAKE
ASSEMBLY
CONNECTOR HOUSING
SEAT POST
BATTERY
BATTERY CHARGER
FREEWHEEL LEVERS
(DISENGAGED POSITION)
BATTERY
ELECTRONICS CONNECTOR HOUSING
The electronics connector housing is located on the rear of the Jazzy. See figure 3. This housing holds the ammeter,
the battery charger power lead outlet, the main circuit breaker, and controller harness connectors.
Figure 3. Electronics Connector Housing (Non Power Seat)
AMMETER
JOYSTICK CONTROLLER
HARNESS CONNECTORS
MAIN CIRCUIT BREAKER
BATTERY CHARGER POWER LEAD OUTLET
(CHARGER CONNECTOR)
