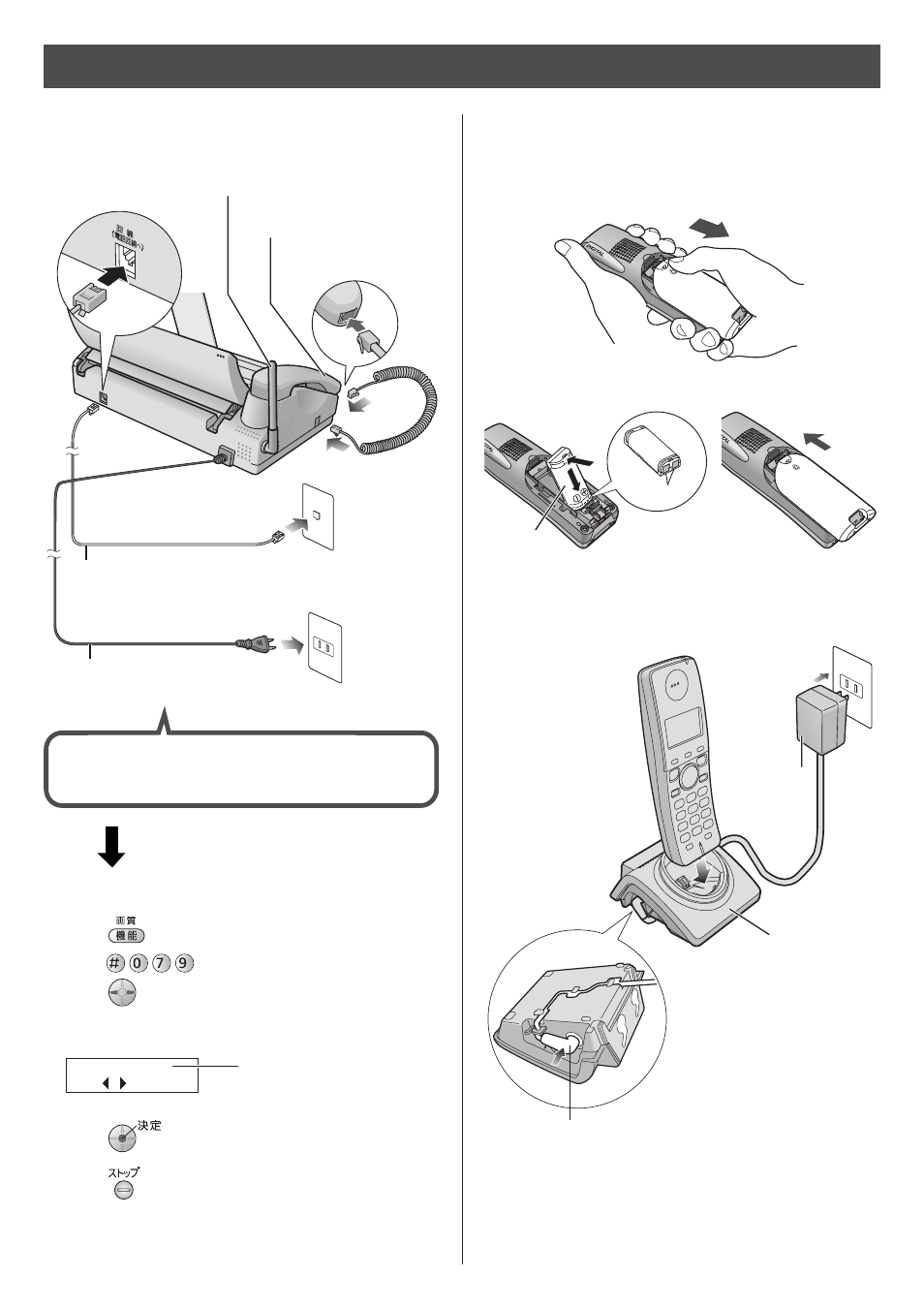

Connecting the main unit
Installations and connections
Setting up the portable handset
(KX-FKN524)
1
Raise the antenna.
Power cord
Telephone line cord
(supplied accessory)
Wall jack
Power outlet
(AC 100 V)
3
Connect the telephone line cord.
4
Connect the power cord.
2
Connect the cord and
place the handset on
the main unit.
After the Power On...
This unit will automatically select the dialing mode
(Tone/Pulse).
4
Charge the battery in the charger for 6 hours.
1
2
 After your Panasonic battery is fully charged,
it will last up to about 5 hours of conversation.
Ni-MH
Ni-MH
Terminals
Battery
If you can not make a call...
Set the dialing mode with the main unit.
1. Press (Resolution/Function).
2. Press .
3. Press (Search button) repeatedly until the desired
setting is displayed.
4. Press (Set).
5. Press (Stop).
Example :
 : Tone
: Pulse (20 PPS)
: Pulse (10 PPS)
Charger
Plug
Power outlet
(AC 100 V)
AC adaptor
3
