Paradyne IP Broadband Loop Carrier 4000E User Manual
Page 8
8
July
2005
IPD4-A2-GZ40-10
Procedure
1. Select a Slot for Installation.
Although the 4000E is factory shipped with Slot 1 open, interface modules
may be installed in any slot, 1–4.
2. Align the interface module with the slot module guides. With the interface
module PCB facing up and the interface module model name on the right side
of the module faceplate (facing towards you), align the left and right edges of
the PCB with the slot module guides of the chosen slot on the 4000E.
3.
Slide the interface module fFirmly into the chassis. Tighten the fastening
screws on the interface module faceplate.

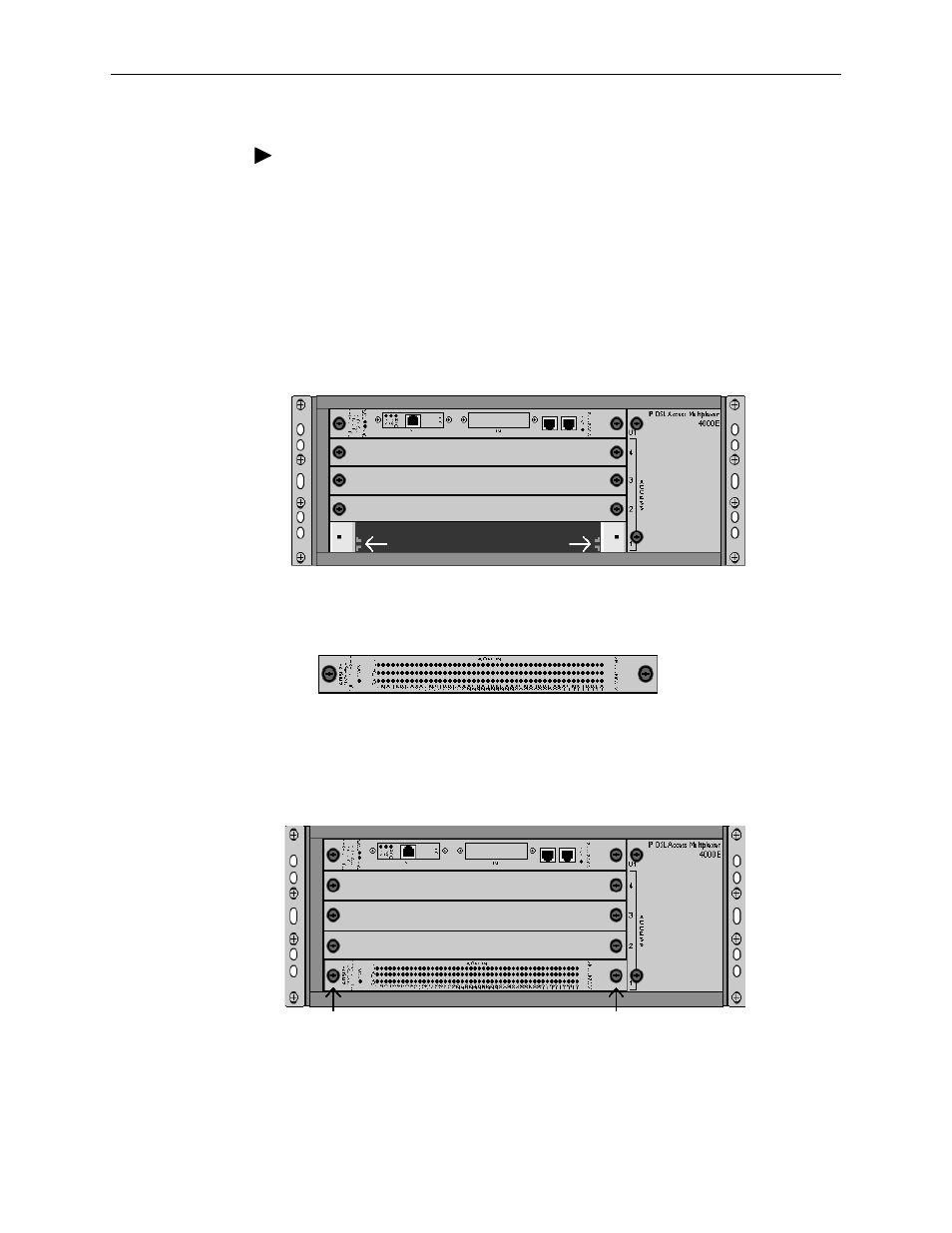

Slot Module Guides
INTERFACE MODULE
Fastening Screws
