Panasonic PT-AE900U - Manual (Page 10)

L
L
SH
SW
82.9 mm (3-1/4
˝ )
E NGLISH -19
Projection distances
NOTE:
B The dimensions in the table above are approximate.
B For details about projected image distances, refer to page 69.
NOTE:
B Place the projector so that it is vertical to the screen.
Getting
s
tar
ted
Setting-up

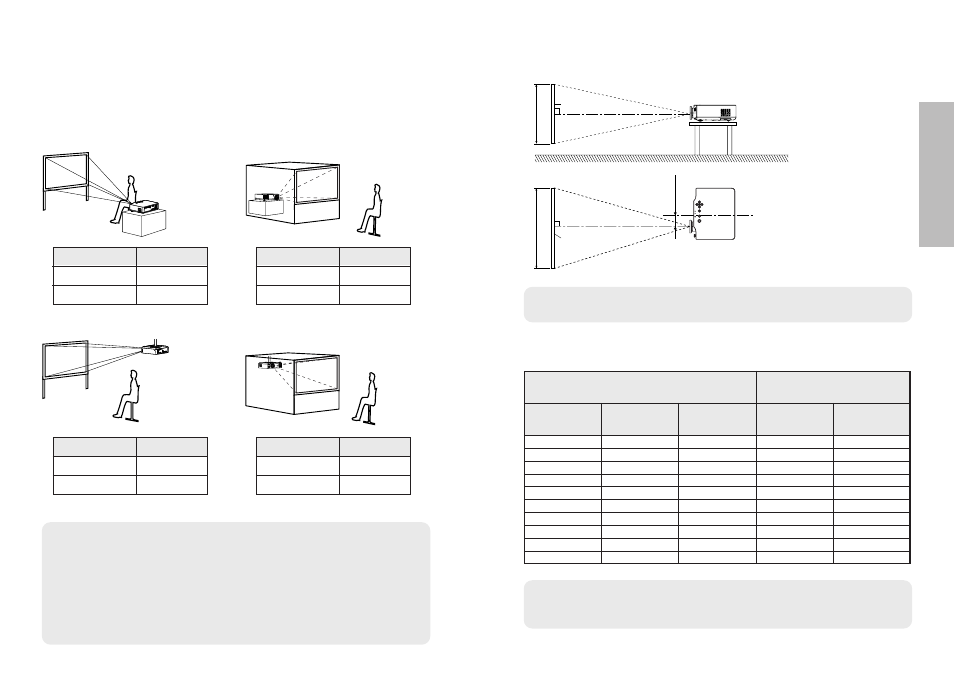

Projection methods
In way of installing projector, any one of the following four projection methods
are used. Select whichever projection method matches the setting-up
method. (The projection method can be set from the “OPTION” menu. Refer
to page 52 for details.)
BFront-desk projection
BRear-ceiling projection
(Using a translucent screen)
Menu items Setting
DESK
FRONT
DESK/CEILING
FRONT/REAR
Menu items Setting
CEILING
REAR
DESK/CEILING
FRONT/REAR
NOTE:
B You will need to purchase the separate ceiling bracket (ET-PKE300/
ET-PKE700) when using the ceiling installation method.
B Do not set up the projector vertically or tilted horizontally, otherwise it
may cause damage to the projector.
B It is recommended that you set up the projector in a place that is tilted
at less than ±30° vertically. Setting up the projector in places that are
tilted at more than ±30° vertically may shorten component life.
18-E NGLISH
Projector position
L: Projection distance
SH: Image height
SW: Image width
Screen
1.01 m(40˝) 0.50 m(1´7˝) 0.89 m(2´11˝) 1.2 m(3´11˝) 2.4 m(7´10˝)
1.27 m(50˝) 0.62 m(2´) 1.11 m(3´7˝) 1.5 m(4´11˝) 3.0 m(9´10˝)
1.52 m(60˝) 0.75 m(2´5˝) 1.33 m(4´4˝) 1.8 m(5´10˝) 3.7 m(12´1˝)
1.77 m(70˝) 0.87 m(2´10˝) 1.55 m(5´1˝) 2.1 m(6´10˝) 4.3 m(14´1˝)
2.03 m(80˝) 1.00 m(3´3˝) 1.77 m(5´9˝) 2.4 m(7´10˝) 4.9 m(16´)
2.28 m(90˝) 1.12 m(3´8˝) 1.99 m(6´6˝) 2.7 m(8´10˝) 5.5 m(18´)
2.54 m(100˝) 1.24 m(4´) 2.21 m(7´3˝) 3.1 m(10´2˝) 6.2 m(20´4˝)
3.05 m(120˝) 1.49 m(4´10˝) 2.66 m(8´8˝) 3.7 m(12´1˝) 7.4 m(24´3˝)
3.81 m(150˝)
5.08 m(200˝)
1.87 m(6´1˝)
2.49 m(8´2˝)
3.32 m(10´10˝)
4.43 m(14´6˝)
4.6 m(15´1˝)
6.2 m(20´4˝)
9.3 m(30´6˝)
12.4 m(40´8˝)
Screen size (16:9)
Diagonal
length
Height
(SH)
Width
(SW)
Projection distance (L)
Wide
(LW)
Telephoto
(LT)
Screen
BFront-ceiling projection
Menu items Setting
CEILING
FRONT
DESK/CEILING
FRONT/REAR
BRear-desk projection
(Using a translucent screen)
Menu items Setting
DESK
REAR
DESK/CEILING
FRONT/REAR
