Installation
I n s t a l l i n g t h e U P S
The following steps explain how to install the UPS. Figure 2 shows a typical installation
only. See “UPS Rear Panels” on page 6 for the rear panel of each model.
1.
If you are installing power management software, connect your computer
to the USB port of UPS communication port using the supplied
communication cable.
2.
Plug the power cord supplied into the input connector on the UPS rear
panel.
3.
Plug the UPS power cord into a power outlet.

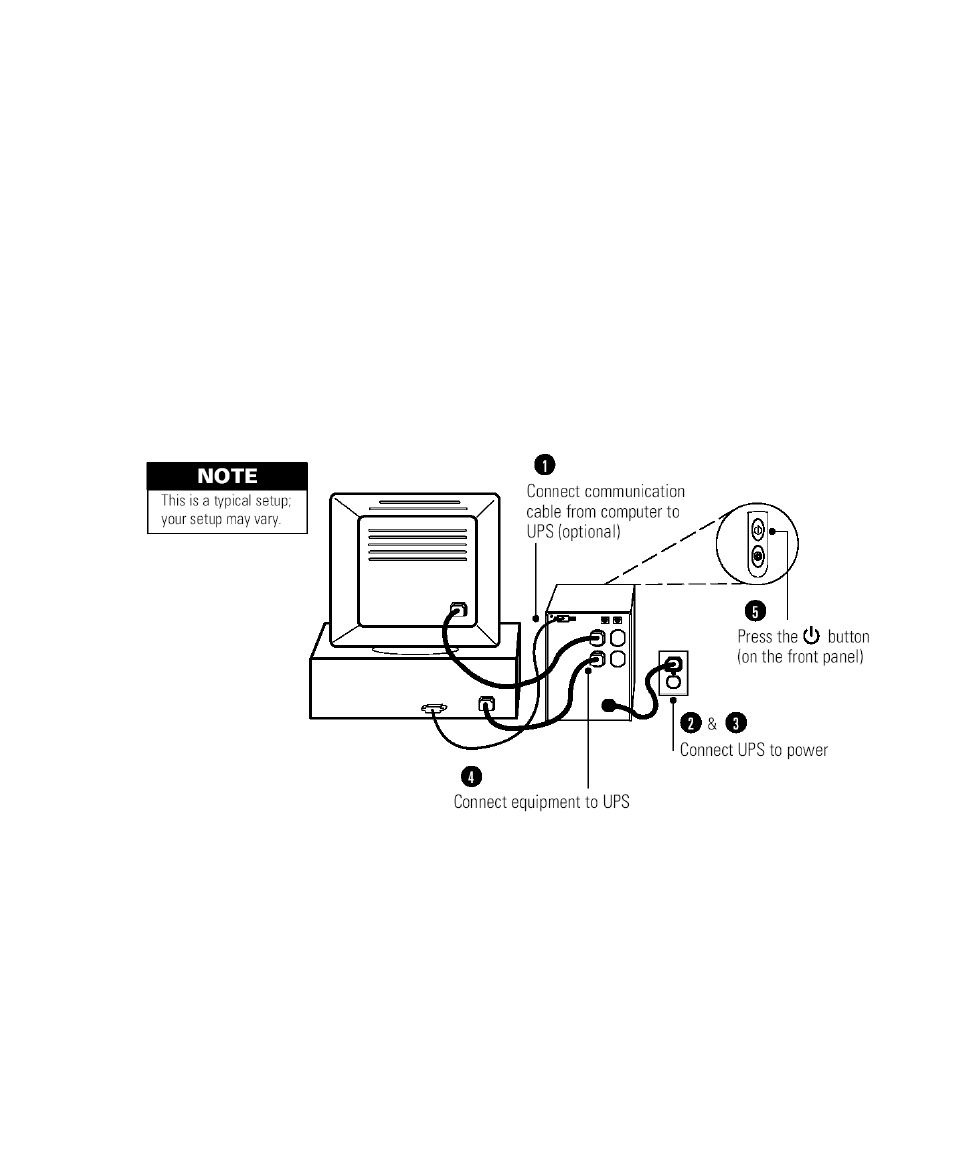

Figure 2. Typical UPS Installation
