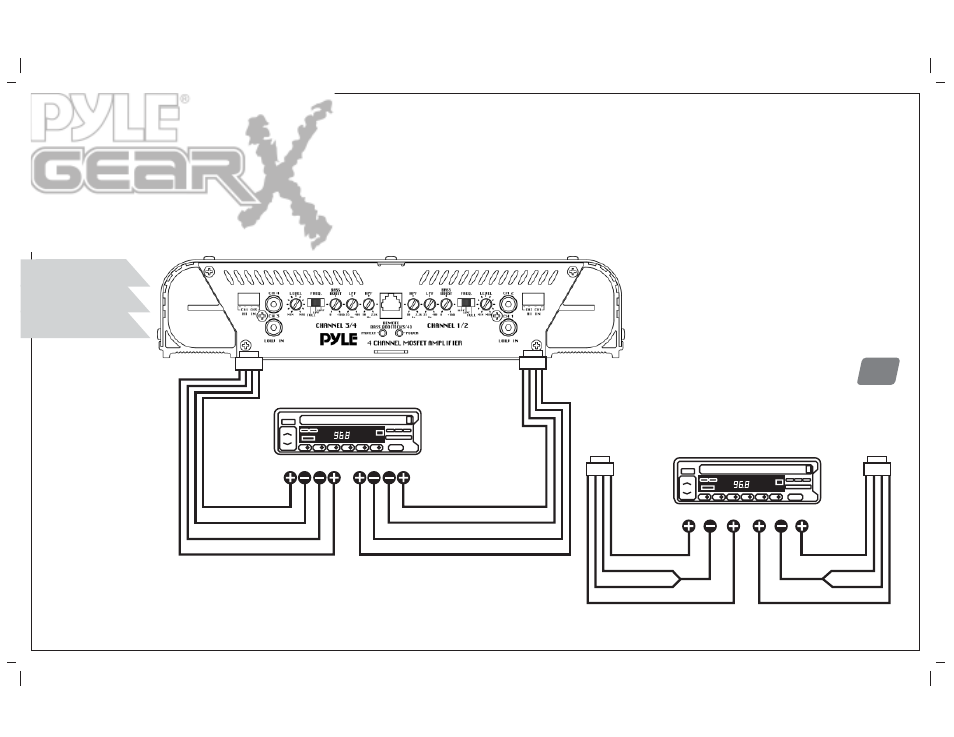

4 CH floating ground connections
from speaker terminals
L R FRONT L R REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK
BLACK
BLACK
PLEASE NOTE! If using high level inputs,
do not use the low level RCA inputs at
the same time!
CH 1/2
4 CH harness wiring for common ground connections
from speaker terminals
L R FRONT R L REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK
BLACK
BLACK
CH 3/4
high level Stereo input connections
4 ch amp PLA-4150 • PLA-4250 • PLA-4350
