Installation/Troubleshooting
37
1.13.1 Wiring the Camera
Check the location where the camera will be installed. Select the proper cable
suited to the camera location. Consult an authorized wiring electrician for cabling.
The camera can be mounted in the following ways.
1.

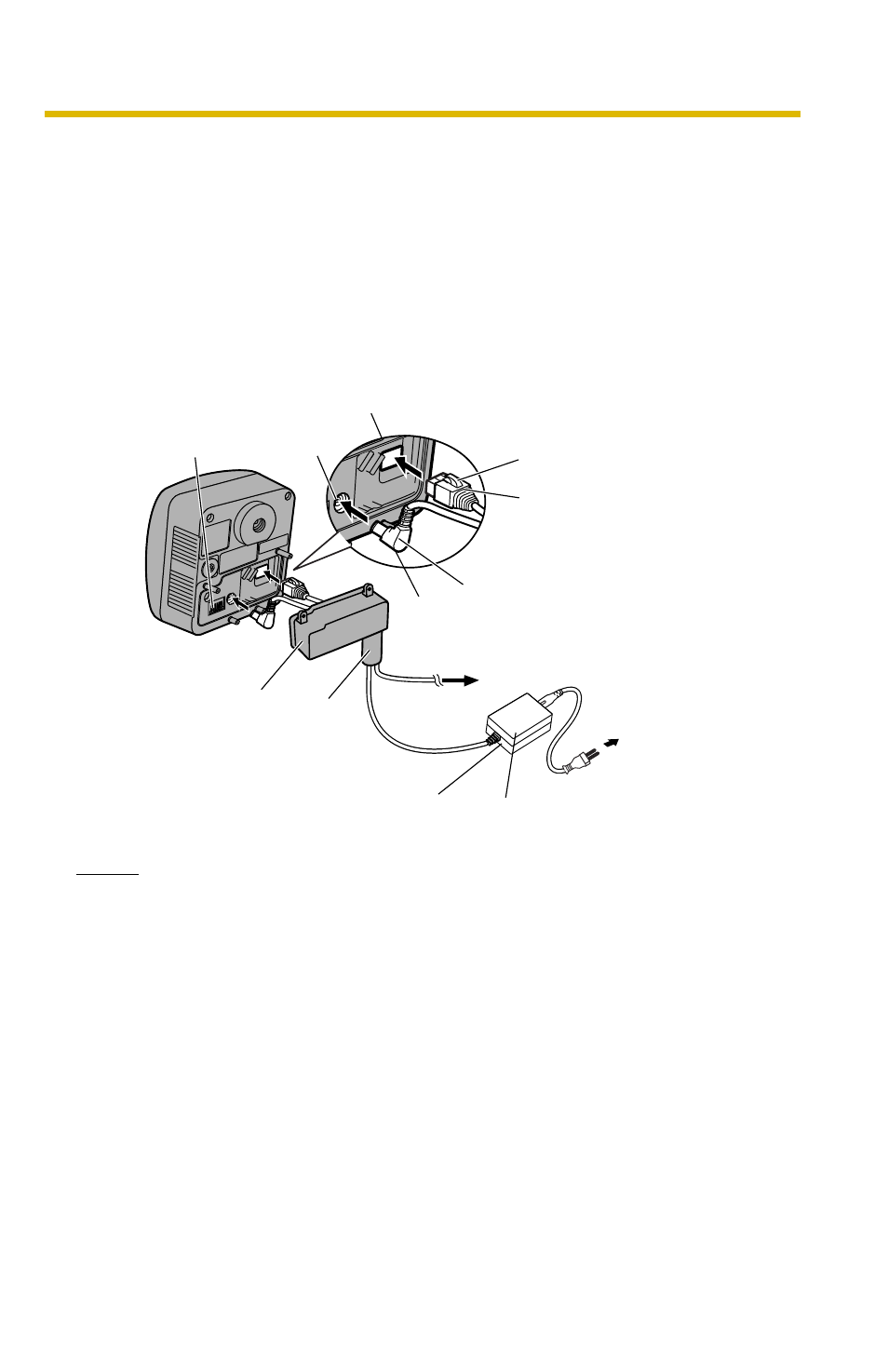

Put the cables through the connector cover (1.). Connect the DC plug of the
AC adaptor to the DC IN jack (2.) and Ethernet cable to the Ethernet port (3.).
Connect the AC plug of the AC cord to the outlet (4.).
•
If you use External I/O, external speaker or external microphone, put the
cables through the connector cover.
Notes
• Confirm that the indicator lights green.
• Check the location of the camera, the type and the length of the Ethernet
cable (Max. 100 m). Use an Ethernet cable as short as possible for
outdoor use. Lightning may cause serious damage to the camera or the
connected devices.
To Network
AC adaptor
Outlet
(4.)
(1.)
Connector
Cover
(2.)
DC Plug
Ethernet cable
(3.)
Ethernet port
DC IN jack External I/O
