13
4.0 CONFIGURATION
You may use the DIP switch included in the Model 1069 for configuring
the CO or CPE mode. All other configurations for the Model 1069 VDSL2
CPE should be made through the VDSL2+ DSLAM.
4.1 CONFIGURING SWITCH S1-1: CO/CPE
The DIP switches are externally accessible from the underside of the
Model 2174. Figure 7 on page 13 shows the orientation of the DIP
switches in the On and Off positions.

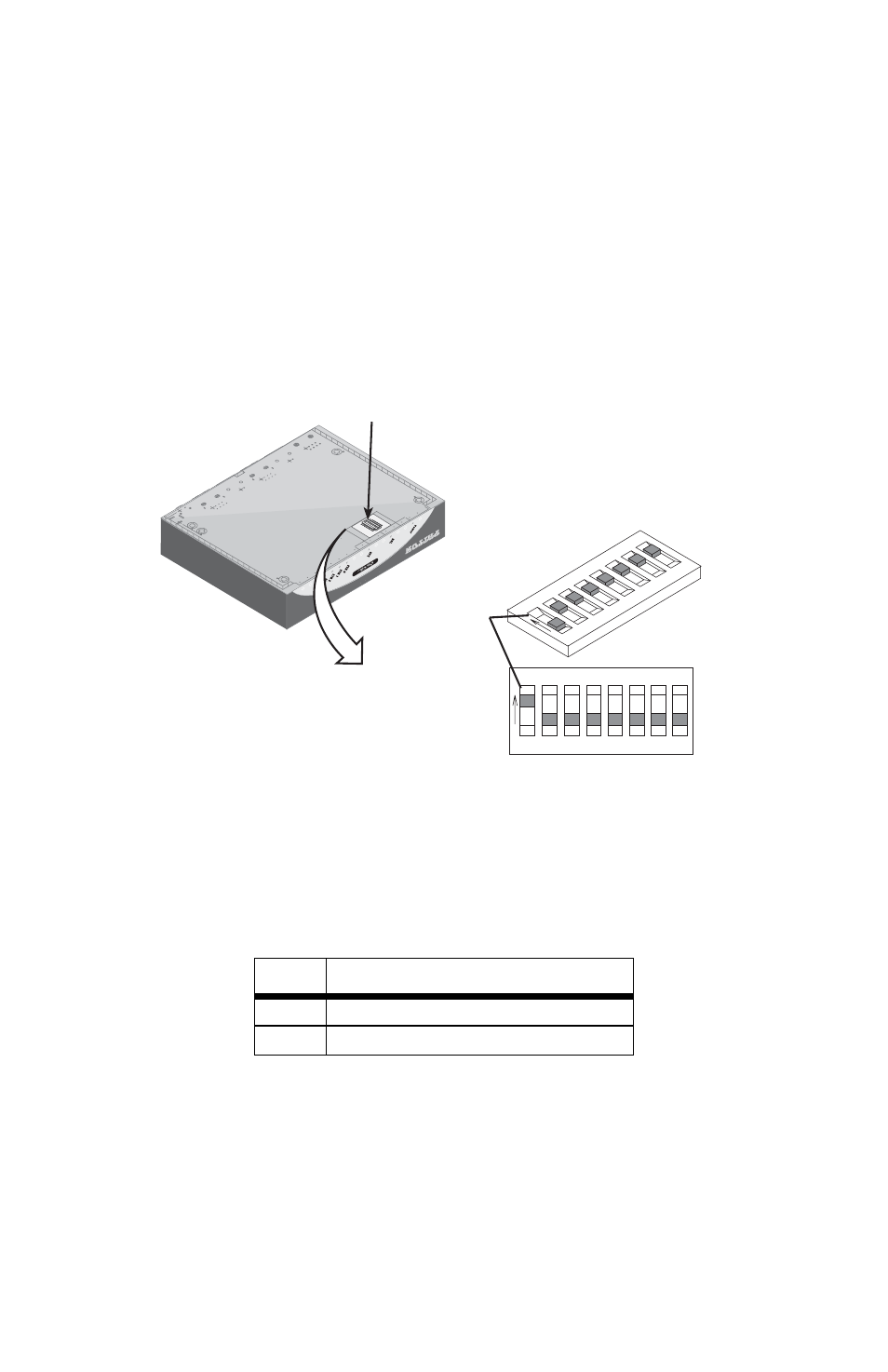

Figure 7. DIP switch orientation
Use switch S1-1 to configure the unit as a CPE (Remote unit) or CO
(Local unit).
Table 1: Local/Remote Unit Configuration
S1-1 Setting
ON CPE/Remote
OFF CO/Local
Push toggle up
for ON position
Switch toggle
Push toggle
down for
OFF position
S1
1 2 3 4
ON
1 2
3 4
ON
S1
S1
5 6 7 8
5 6
7 8 ™
