Connections

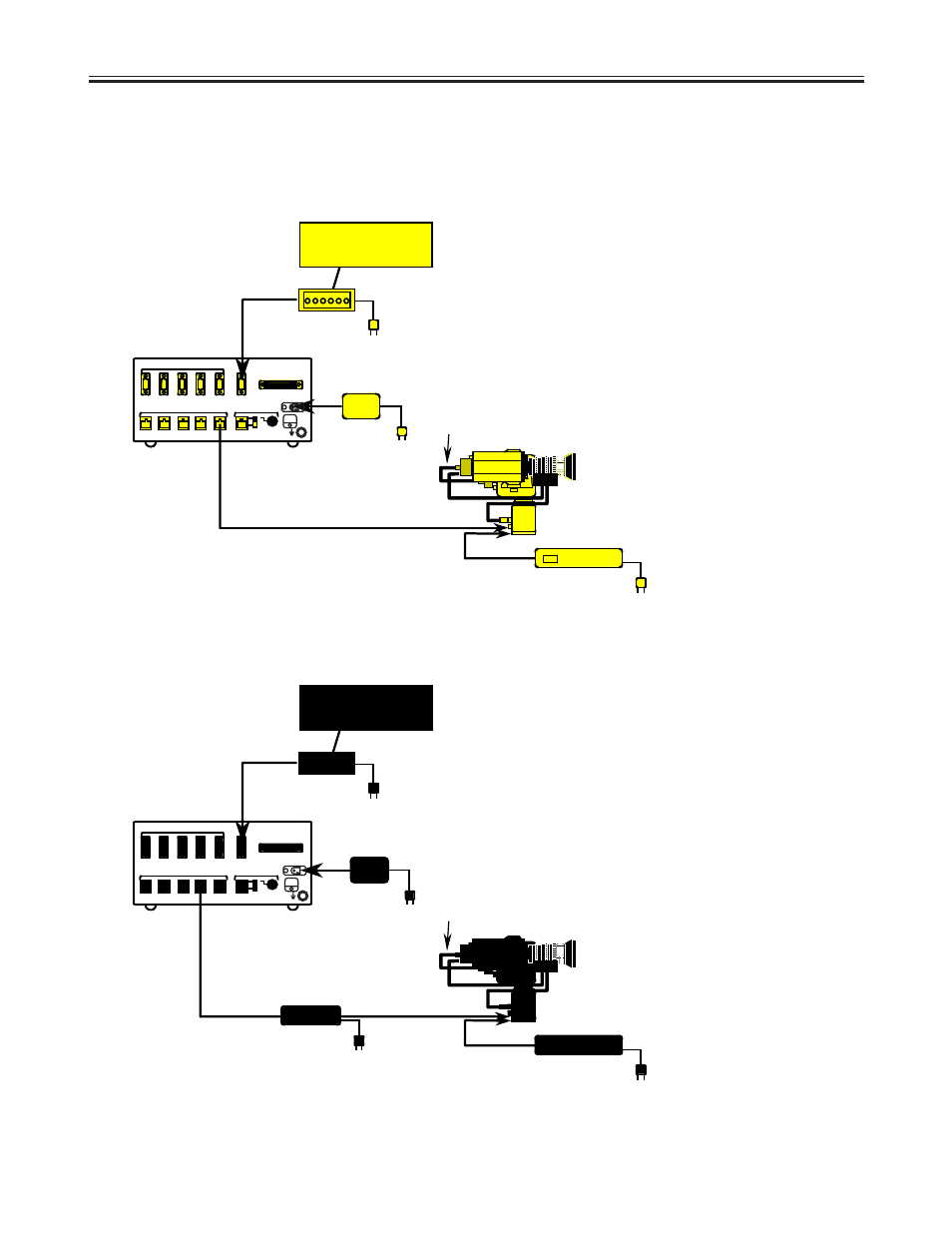

$ Connect the pan-tilt head system to the RS-422 CONTROL OUT connector:
Use the RS-422 connector when the AW-PH350 is to be used as the pan-tilt head or when the connection distance
between this adapter and the pan-tilt head is to exceed 10 m.
When an AW-PH350 is used:
When an AW-PH300A is used and the connection distance is more than 10 m:
Telephone line
Modem
AW-DU600
AW-PS301
Convertible camera
Convertible camera
AW-PH350
AW-PS300
10 Base-T cable
10 Base-T cable
Telephone line
Modem
AW-DU600
AW-PS301
AW-CA50A15
AW-PH300A
AW-PS300
AC adapter
AW-CA28T9
RS-232C/RS-422
converter
AW-CA50C29 (component)
AW-CA50T29 (composite)
