Baxi Potterton BERMUDA BBU HE - Manual (Page 13)

Valor Fire, Surround, Back Panel
and Hearth Technical Specification
Spacers and Rebated Surrounds
When fitting a BBU HE unit with a Valor Dimension TM fire engine, both the unit and the back of the fire need to be contained within
the chimney space. For installations where this space is not sufficient there are two options available:
1. Using a rebated surround: This is the simplest and most discrete solution. Rebated surrounds have a smaller inside return on
both the legs and top panel. This allows the back panel to sit further forward, away from the wall, creating a larger space for the
BBU HE and Dimension
TM fire engine.
2. Using spacer kits: If a rebated surround is not an option, either because the customer wishes to keep their existing surround,
or has selected a surround that is not available with a rebate, an additional spacer kit can be used. In these instances, the back
panel is fitted as normal, and the Dimension
TM fire engine which is visible beyond the back panel is covered with an additional
spacer kit. The BBU HE spacer kits are 50mm deep, and can be joined together to achieve the required depth.
Controls
A remote control is supplied with the Classica, Innova, Regalia and Dream fires. The
Lyrica and Nano models have built in manual controls. Both the remote control and
the manual control allow settings for 'On/Off', ‘Effect Only’, ‘Low 1kW heating’ and
‘High 2kW heating’.
13

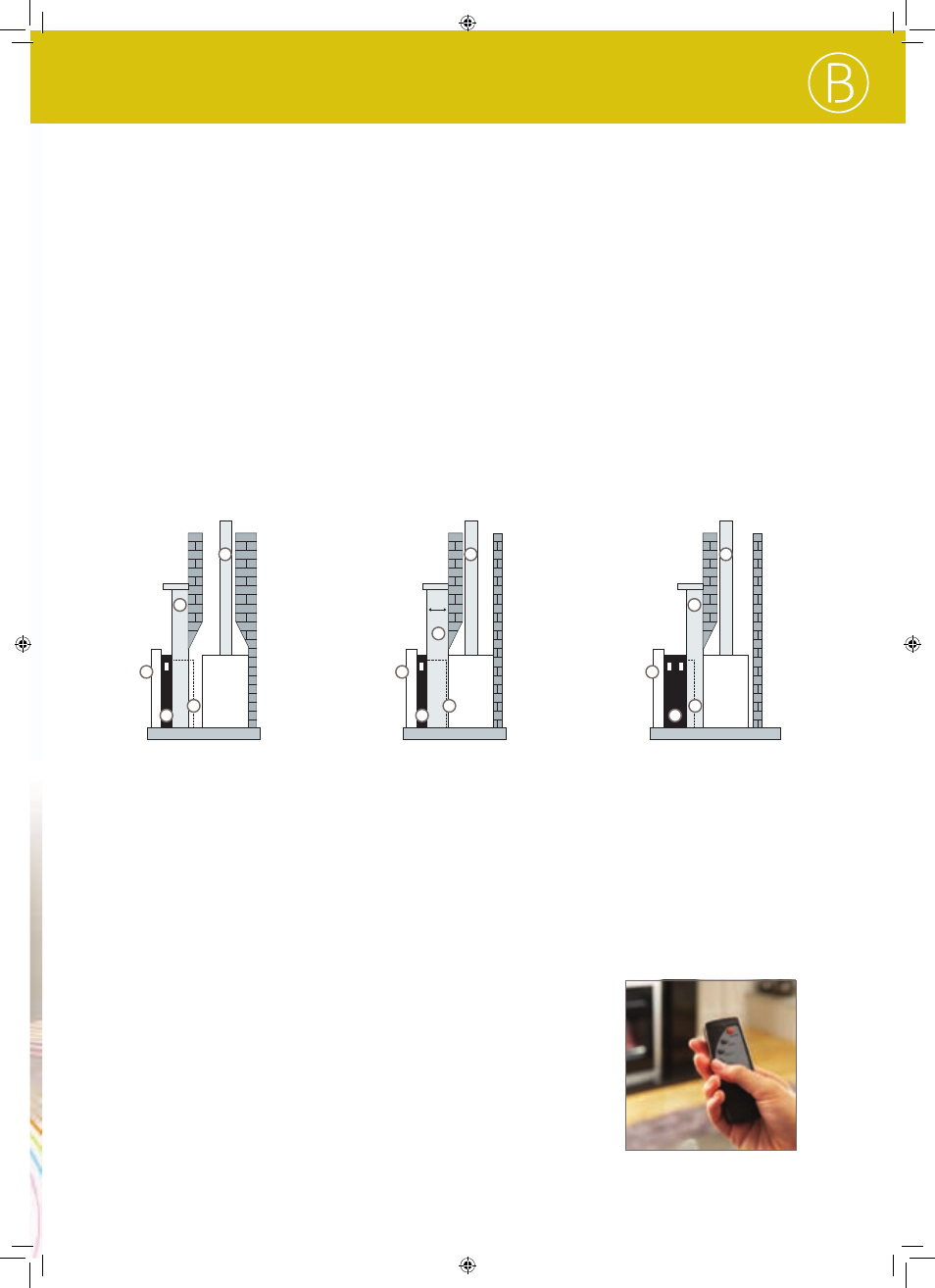

1. Standard surround 3. Spacer frame 5. Rebated surround
2. Valor Dimension TM firefront 4. Valor Dimension TM fire engine 6. Flue
BBU HE with
additional spacers
BBU HE
Standard BBU HE
installation
BBU HE
3
2
1
6
4
BBU HE with
rebated surround
BBU HE
3
2
5
6
4
3
2
1
6
4
