Personal computer to the home network connector EN
54

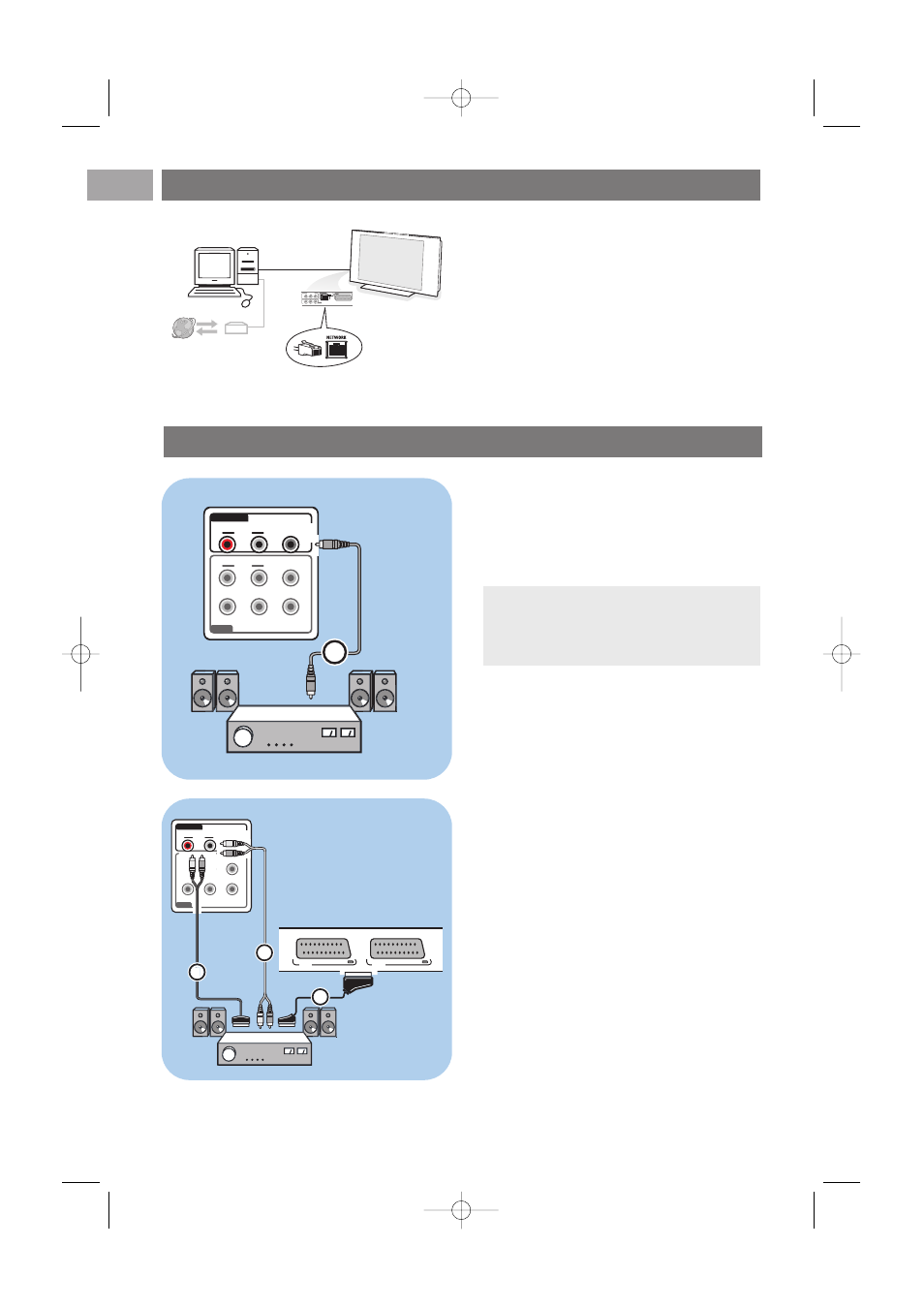

Connect a Home Cinema amplifier
Digital Home Cinema amplifier
< Connect a digital Home Cinema amplifier to
the
DIGITAL AUDIO OUT connector 1 at
the bottom of the TV.
Analogue Home Cinema amplifier
< According to the type of connector cables and
the connector input available on your Home
Cinema amplifier, connect your receiver to the
AUDIO OUT L and R connectors 3 or to
EXT1 or 2 2 at the bottom of the TV.
Tip: to avoid visible delay between picture
and sound, use this
DIGITAL AUDIO OUT
connector to connect your Home Cinema
amplifier.
INTERNET
EXT 1 NETWORK
EXT 4
DIGITAL AUDIO
Pr Pb Y
IN1 IN2 OUT
Pr Pb Y
DIGITAL
AUDIO AUDIO
HDTV & Progressive
DISPLAY SYNCHRONIZED
480p, 576p, 720p, 1080i
IN
IN
L R
EXT3
AUDIO OUT
AUDIO
OUT L R
DIGITAL
AUDIO
OUT
AUDIO OUT
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
Pr Pb Y
DIGITAL
AUDIO AUDIO
HDTV & Progressive
DISPLAY SYNCHRONIZED
480p, 576p, 720p, 1080i
IN
IN
L R
EXT3
AUDIO OUT
AUDIO
OUT L R
DIGITAL
AUDIO
OUT
EXT2 EXT1
EXT2 EXT1
1
EXT 1 / 2
2
AUDIO
OUT
3
AUDIO
OUT
3
Your TV is equipped with the possibility to connect
to your computer or home network.
See the supplied separate Connected Planet guide
for further explanation of this functionality.
