Connect a DVD player or HD receiver
Connect a DVD player, HD receiver or game console
EN
51

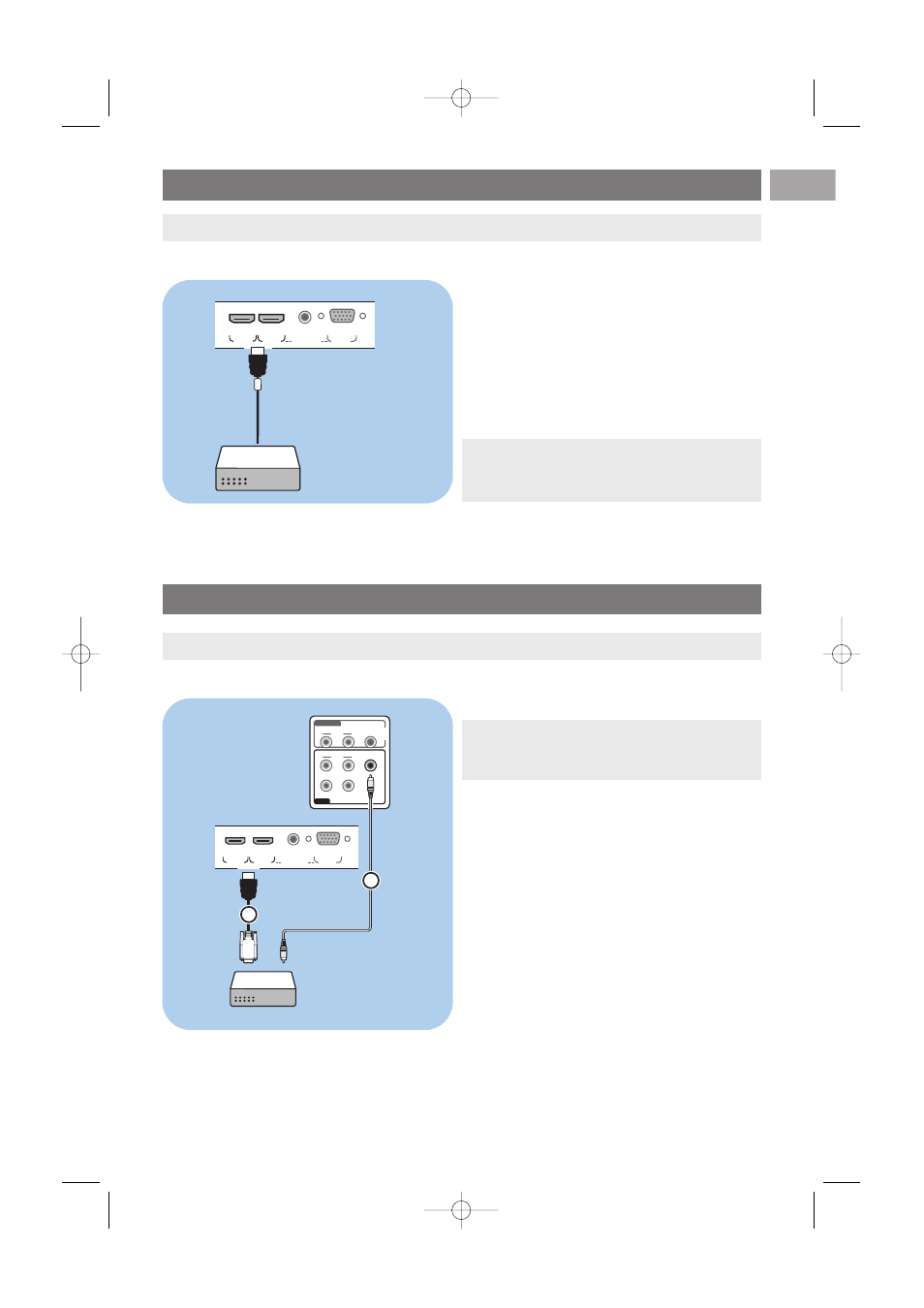

With a DVI connector
1. Connect the DVI to HDMI cable to one of the
HDMI connectors of your TV 1.
2. Connect the audio cable 2 to the
DIGITAL
AUDIO IN
connector of the TV.
3. Select the equipment you have connected in
the Installation menu, Select your connections,
p. 33, and link it to
HDMI 1
or
2
.
4. Also select
DIGITAL AUDIO IN
in the same
Connections menu.
Pr
Pb
Y
DIGITAL
AUDIO
AUDIO
HDTV & Progressive
DISPLAY SYNCHRONIZED
480p, 576p, 720p, 1080i
IN
IN
L
R
EXT3
AUDIO
OUT
AUDIO
OUT
L
R
DIGITAL
AUDIO
OUT
HDMI 1
HDMI
DIGITAL
AUDIO
IN
HDMI 2
o
o
PC-VGA
AUDIO
IN
L/R
o
o
EXT3
HDMI
DVI
DIGITAL
AUDIO
IN
1
2
Note: in case of any problems, see Annex 4:
Issues referring to connected peripherals with a
HDMI connector, p. 66.
With a HDMI connector
HDMI is the leading new standard for Digital video
and audio interconnection.
1. Connect your equipment with the
HDMI
connector.
2. Select the equipment you have connected in
the Installation menu, Select your connections,
p. 33 and link it to
HDMI 1
or
2
.
Tip: if necessary, you can adjust the picture position to the centre of the screen with the cursor keys.
Tip: if necessary, you can adjust the picture position to the centre of the screen with the cursor keys.
Note: only a DVD player with DVI with digital
sound can be connected to the HDMI
connector.
HDMI 1/2
HDMI 1
HDMI 2
o
o
PC-VGA
AUDIO
IN
L/R
o
o
HDMI
