once audio is present. As mentioned previously, the level of
these two indicators will indicate their signal strength at the
receiver. When the microphone is not in use, please switch
it off to conserve the battery
BELT PACK TRANSMITTER

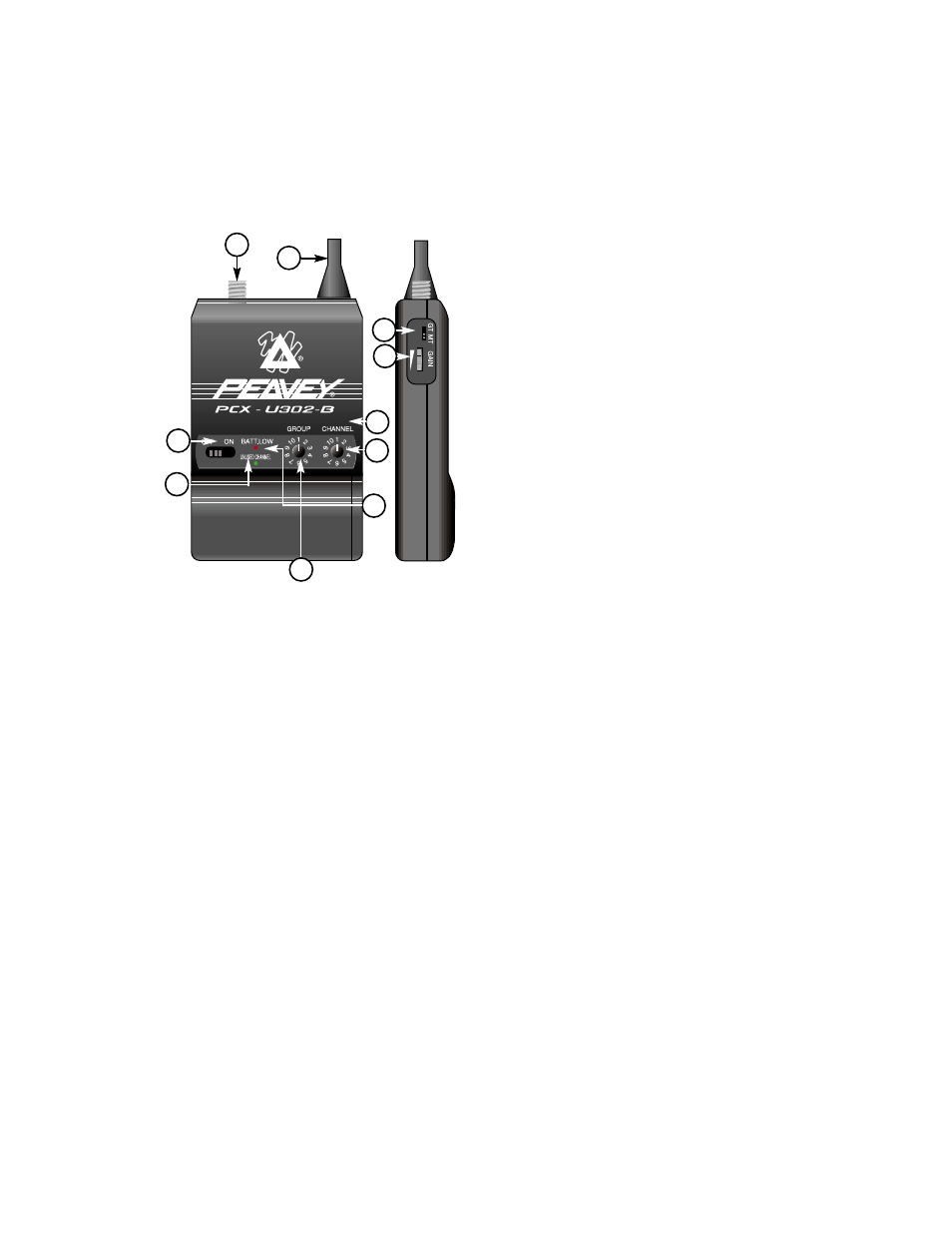

Figure 14
Like the receiver, the belt pack transmitter features
advanced synthesized PLL design. It is preprogrammed
with 30 user selectable frequencies and incorporates
Pilotone and Noise Lock dual squelch circuitry. The
transmitter is capable of connection to a variety of input
sources including lapel microphones, headworn
microphones, guitars and other line level output devices.
1.
Audio input connector. This accepts a variety
of input levels and types. Please refer to page
21 for details of the various connections
options available. It is important that the right
