SPECS
P E A V E Y E L E C T R O N I C S
SP ™ Subcompact
18 Subwoofer
Loudspeaker System
Specifications
Frequency Response, 1 meter
on-axis, swept-sine in anechoic
environment:
47 Hz - 190 Hz,
±
3 dB
Low Frequency Cut-off
(-3 dB point):
47 Hz
Usable Low Frequency Limit
(-10 dB point):
39 Hz
Power Handling:
350 W continuous (52.9 V RMS)
700 W program
1,400 W peak
Sound Pressure Level, 2.8 V
(1 Watt), 1 meter in anechoic
environment:
99 dB SPL
Maximum Sound Pressure Level
(1 meter):
122 dB
Transducer Complement:
One 1801-8 Black Widow ® 18"
woofer with Kevlar ® impregnated
cone
Tuning Frequency (Fbox):
35 and 92 Hz
Impedance (Nominal):
8
Ω
Impedance (Minimum):
6.7
Ω
Input Connections:
Two parallel 1/4" female connectors,
one full range input, one full range
satellite output
Enclosure Materials and Finish:
High density, 7-ply, 3/4" plywood
covered with heavy-duty black
carpet, reinforced with black corners.
Vents are protected by black metal
grilles.
Mounting Provisions:
Four rubber feet for floor use
Dimensions (H x W x D):
23.75" x 28" x 23.75"
60.33 cm x 71.12 cm x 60.32 cm
Net Weight:
109 lbs. (49.44 kg)
Additional Remarks:
When used with biamplification, a
crossover frequency of 200 Hz or
lower is recommended.
DESCRIPTION

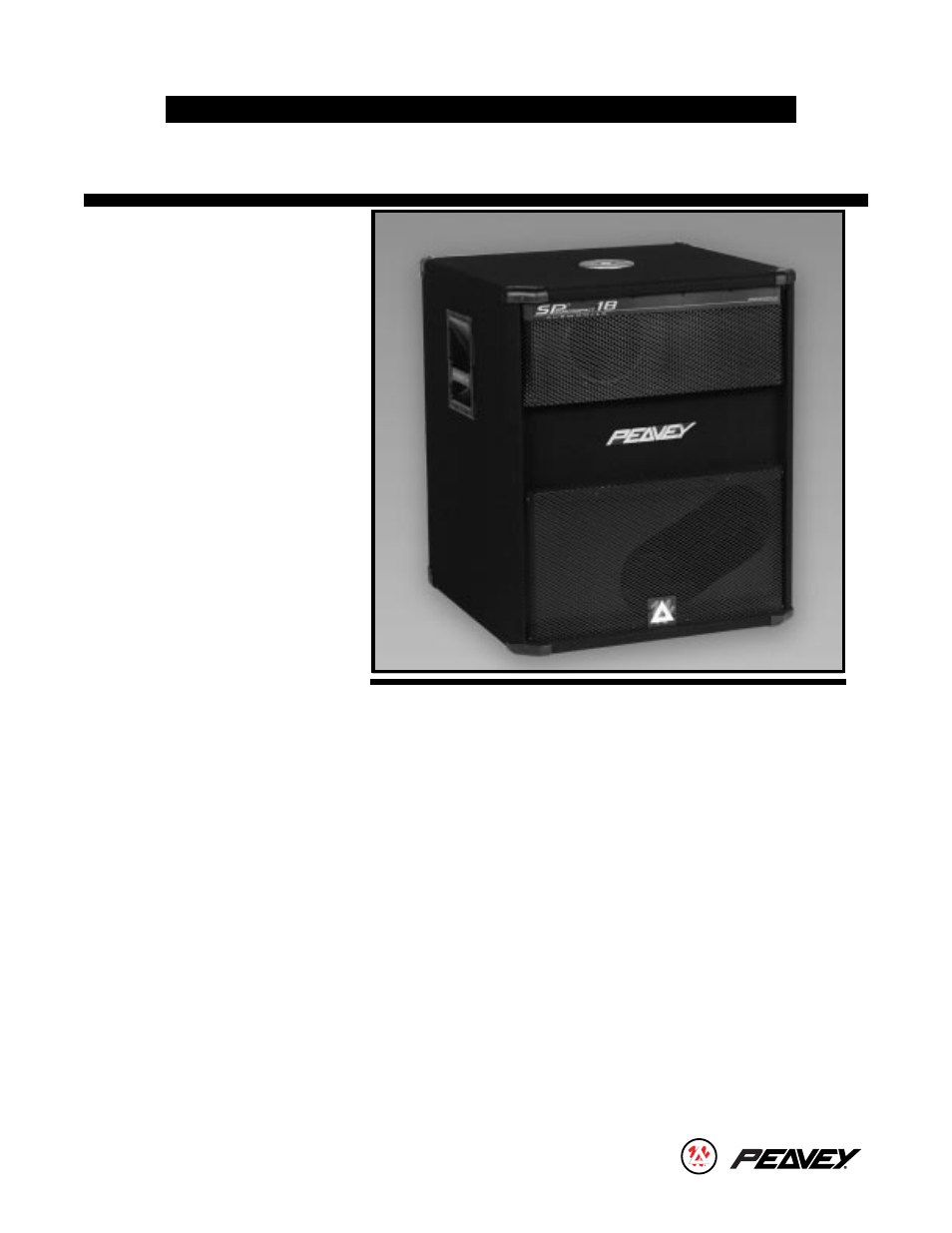

The SP ™ Subcompact 18 is a small,
lightweight add-on subwoofer designed to
make it easy to add more low end to the
SP ™ Series or other full-range speaker
systems. Other uses include bass guitar
and drum monitoring.
The enclosure is constructed of
7-ply 3/4" high density plywood covered
with a heavy-duty black carpet and
reinforced with corners. Black metal
grilles cover the vent openings. A
recessed handle on either side eases
carrying. This low-frequency enclosure is
comprised of an 18" Black Widow woofer
with a Kevlar impregnated cone mounted
in a dual resonant chamber configuration,
providing high output at low distortion by
controlling speaker excursion and
acoustically filtering out high frequencies.
The SP
™ Subcompact 18 now features
a stand adapter which allows any SP
Series enclosure to be used on a (Peavey
part number 00326540) pole. Top cabinet
weight should not exceed 100 lbs. Pole
length should not exceed 36" for other
applications.
