Pioneer DVR-433H-K - Manual (Page 15)

Connecting up 02
15
En

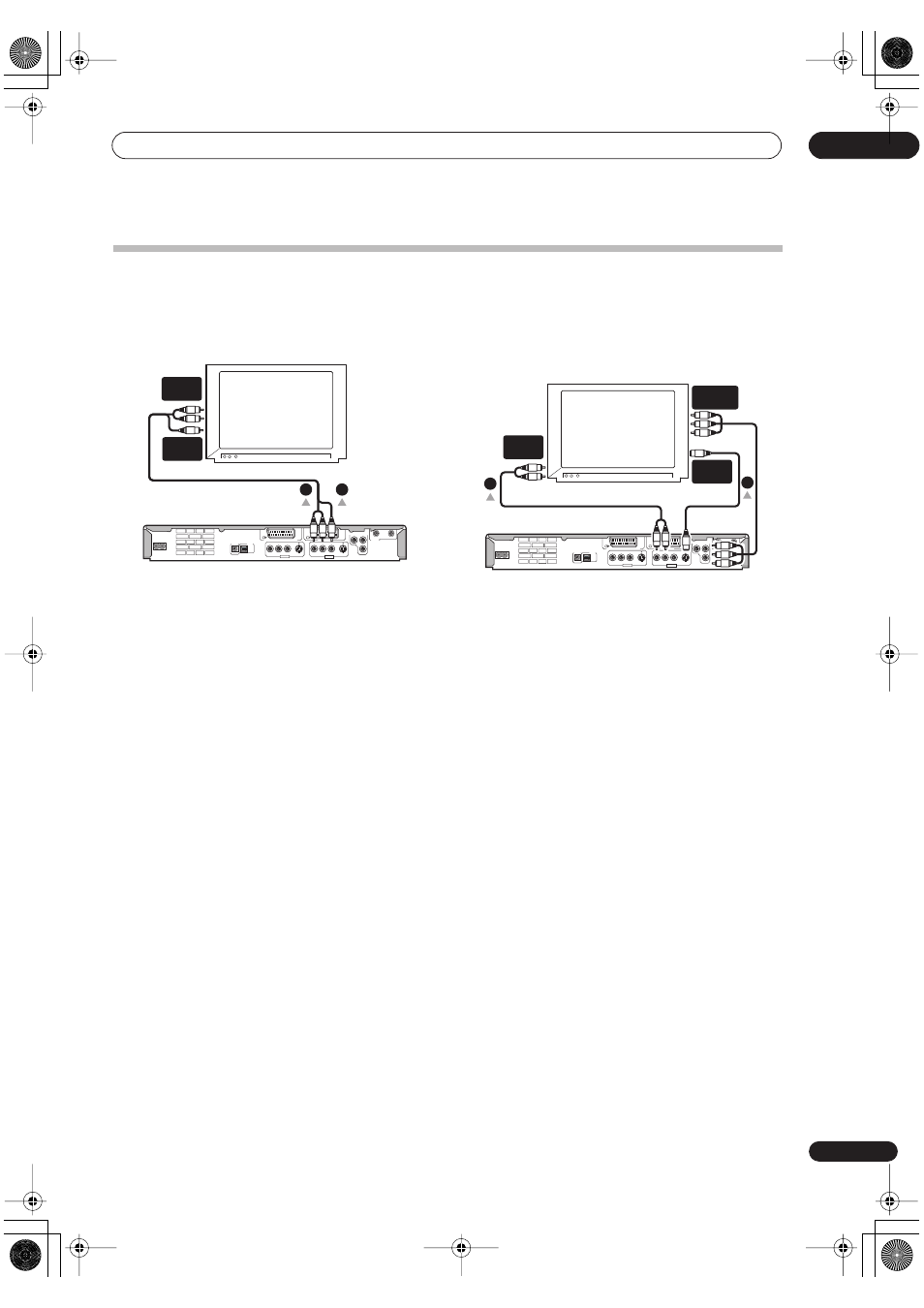

Using other types of audio/video output
If you can’t use the SCART AV connector to connect your TV to this recorder, there are standard audio/video output
jacks, as well as an S-video and component video output.
Using the supplied audio/video cable
1 Connect the VIDEO OUTPUT jack to a video input
on your TV.
Use the yellow jack of the supplied audio/video cable for
the video connection.
2 Connect the AUDIO OUTPUT jacks to the
corresponding audio inputs on your TV.
Use the red and white jacks of the supplied audio/video
cable for the audio connection. Make sure you match up
the left and right outputs with their corresponding inputs
for correct stereo sound.
Using the S-video or component video
output
1 Connect the S-video or component video output
to a similar input on your TV.
For an S-video connection, use an S-video cable (not
supplied) to connect the
S-VIDEO OUTPUT jack to an S-
video input on your TV
For a component video connection, use a component
video cable (not supplied) to connect the
COMPONENT
VIDEO OUT jacks to a component video input on your TV.
See also Component Video Out on page 94 for how to set
up the component video output for use with a progressive
scan-compatible TV.
2 Connect the AUDIO OUTPUT jacks to the
corresponding audio inputs on your TV.
You can use the supplied audio/video cable, leaving the
yellow video plug disconnected. Make sure you match up
the left and right outputs with their corresponding inputs
for correct stereo sound.
TV
DIGITAL OUT CONTROL
IN
OPTICAL
AV 1 (RGB) – TV AV 2/AUTO START REC (INPUT 1/DECODER)
S-VIDEO VIDEO AUDIO
L R
COMPONENT VIDEO OUT Y P B
P R
IN OUT AC IN
OUTPUT S-VIDEO VIDEO AUDIO
L R
INPUT 3
ANTENNA
VIDEO
INPUT
AUDIO
INPUT
1 2 TV
DIGITAL OUT CONTROL
IN
OPTICAL
AV 1 (RGB) – TV AV 2/AUTO START REC (INPUT 1/DECODER)
S-VIDEO VIDEO AUDIO
L R
COMPONENT VIDEO OUT Y P B
P R
IN OUT AC IN
OUTPUT S-VIDEO VIDEO AUDIO
L R
INPUT 3
ANTENNA
S-VIDEO
INPUT
COMPONENT
VIDEO INPUT
AUDIO
INPUT
1 2
