Connecting up
02
12
En
Chapter 2
Connecting up

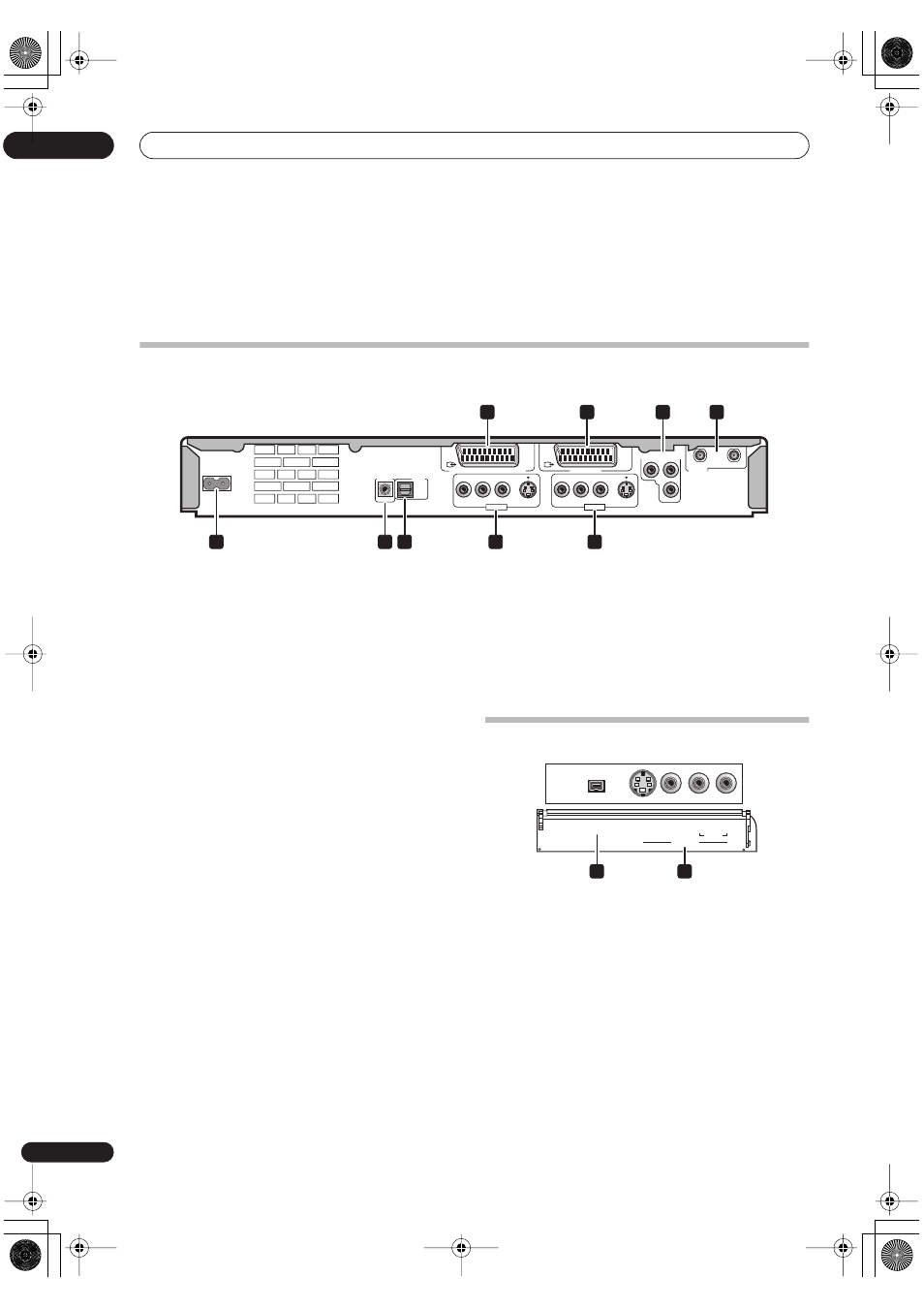

Rear panel connections
1
AV2/AUTO START REC(INPUT 1/DECODER) AV
connector
Audio/video input/output SCART-type AV connector for
connecting to a VCR, or other equipment with a SCART
connector. The input accepts video, S-video and RGB.
See
AV2/L1 In
on page 94 for how to set this up.
2
AV1(RGB)-TV AV connector
Audio/video output SCART-type AV connector for
connecting to a TV or other equipment with a SCART
connector. The video output is switchable between video,
S-video and RGB. See page
AV1 Out
on page 94 for how
to set this up.
3
COMPONENT VIDEO OUT
A high-quality video output for connecting to a TV or
monitor with a component video input.
4
ANTENNA IN (RF IN)/OUT
Connect your TV antenna to the
ANTENNA IN (RF IN)
jack. The signal is passed through to the
ANTENNA OUT
jack for connection to your TV.
5
AC IN – Power inlet
6
CONTROL IN
Use to control this recorder from the remote sensor of
another Pioneer component with a
CONTROL OUT
terminal and bearing the Pioneer
mark. Connect the
CONTROL OUT
of the other component to the
CONTROL
IN
of this recorder using a mini-plug cord.
7
DIGITAL AUDIO OUT
Optical digital audio jack for connecting to an AV
amplifier/receiver, Dolby Digital/DTS/MPEG decoder or
other equipment with a digital input.
8
INPUT 3
Stereo analog audio, video and S-video inputs for
connection to a VCR or other source component.
9
OUTPUT
Stereo analog audio, video and S-video outputs for
connection to a TV or AV amplifier/receiver.
Front panel connections
On the right side of the front panel a flip-down cover
hides more connections.
10 DV IN
A DV input i.LINK connector, suitable for connecting a
DV camcorder.
11 Audio/video input 2
Audio/video input (stereo analog audio; composite and
S-video video), especially suitable for camcorders, game
consoles, portable audio, etc.
DIGITAL
OUT
CONTROL
IN
OPTICAL
AV 1 (RGB) – TV
AV 2/AUTO START REC (INPUT 1/DECODER)
S-VIDEO
VIDEO
AUDIO
L
R
COMPONENT VIDEO OUT
Y
P
B
P
R
ANTENNA
IN
OUT
AC IN
OUTPUT
S-VIDEO
VIDEO
AUDIO
L
R
INPUT 3
1
5
6
7
8
9
2
3
4
VIDEO
L(MONO)
AUDIO
INPUT 2
R
S-VIDEO
DV IN
10
11
