Pelco Manual C306M-K (4/05) 9

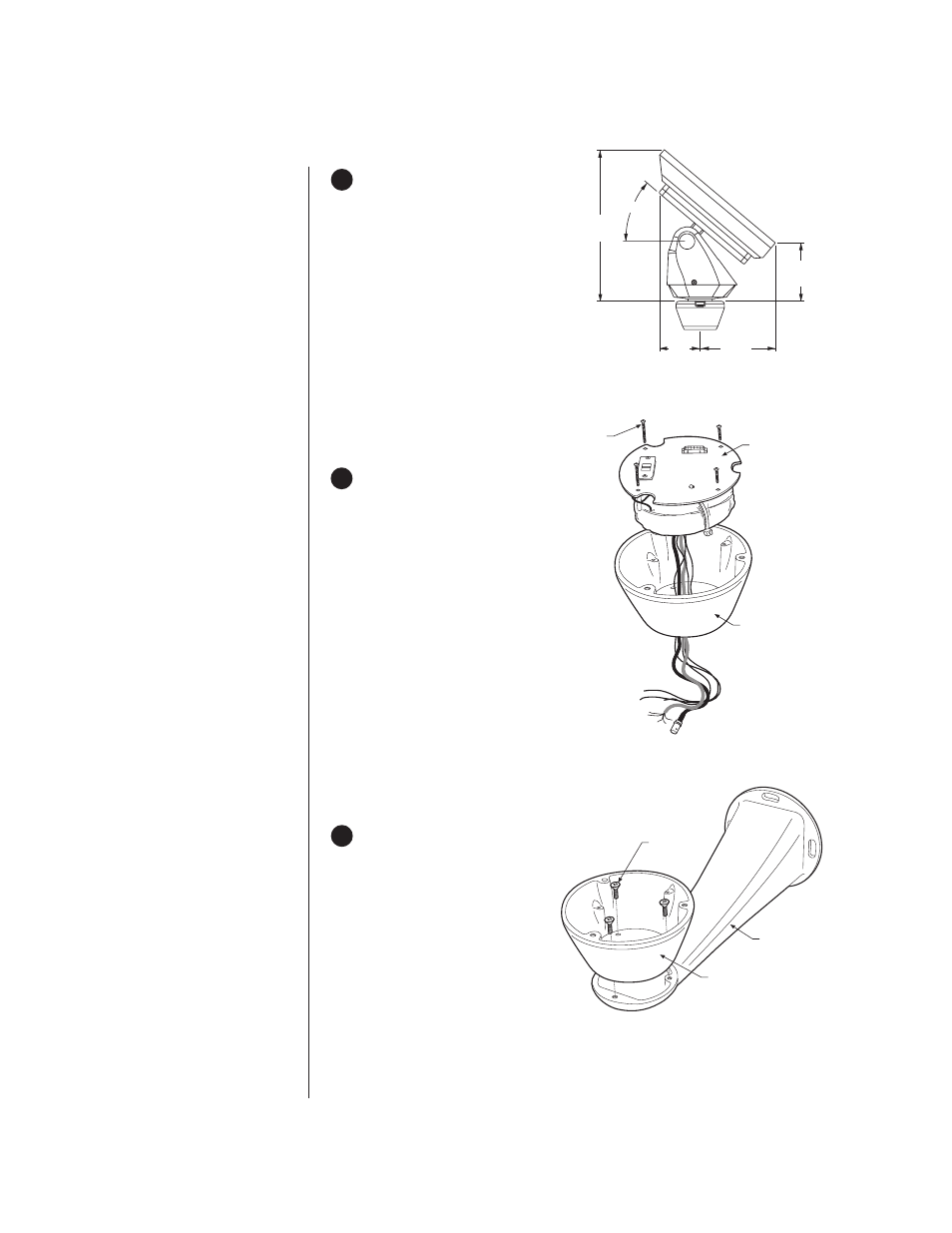

PAN AND TILT INSTALLATION
1
When installing the ES3012 Esprit
system, allow for sufficient clear-
ance between the top of the unit
and overhead obstructions. This will
prevent interference when the en-
closure is driven to its maximum el-
evation of 40 degrees.
2
Remove the transformer module
from the base of the system by
loosening the four Phillips screws
and lifting the module.
3
Attach the base of the system to an
Esprit mount (EWM or EPP) with
the three flathead 10-32 x 1/2-inch
screws and washers (supplied).
17.06
(43.33)
6.77
(17.20)
40°
8.30
(21.08)
4.67
(11.86)
NOTE: The illustrations show
the ES3012 Esprit mounted
to an EWM wall mount.
01475
BASE
MOUNTING
SCREWS
MOUNT
LOOSEN
PHILLIPS
SCREWS
TRANSFORMER
MODULE
BASE
