10 Pelco Manual C306M-K (4/05)
4

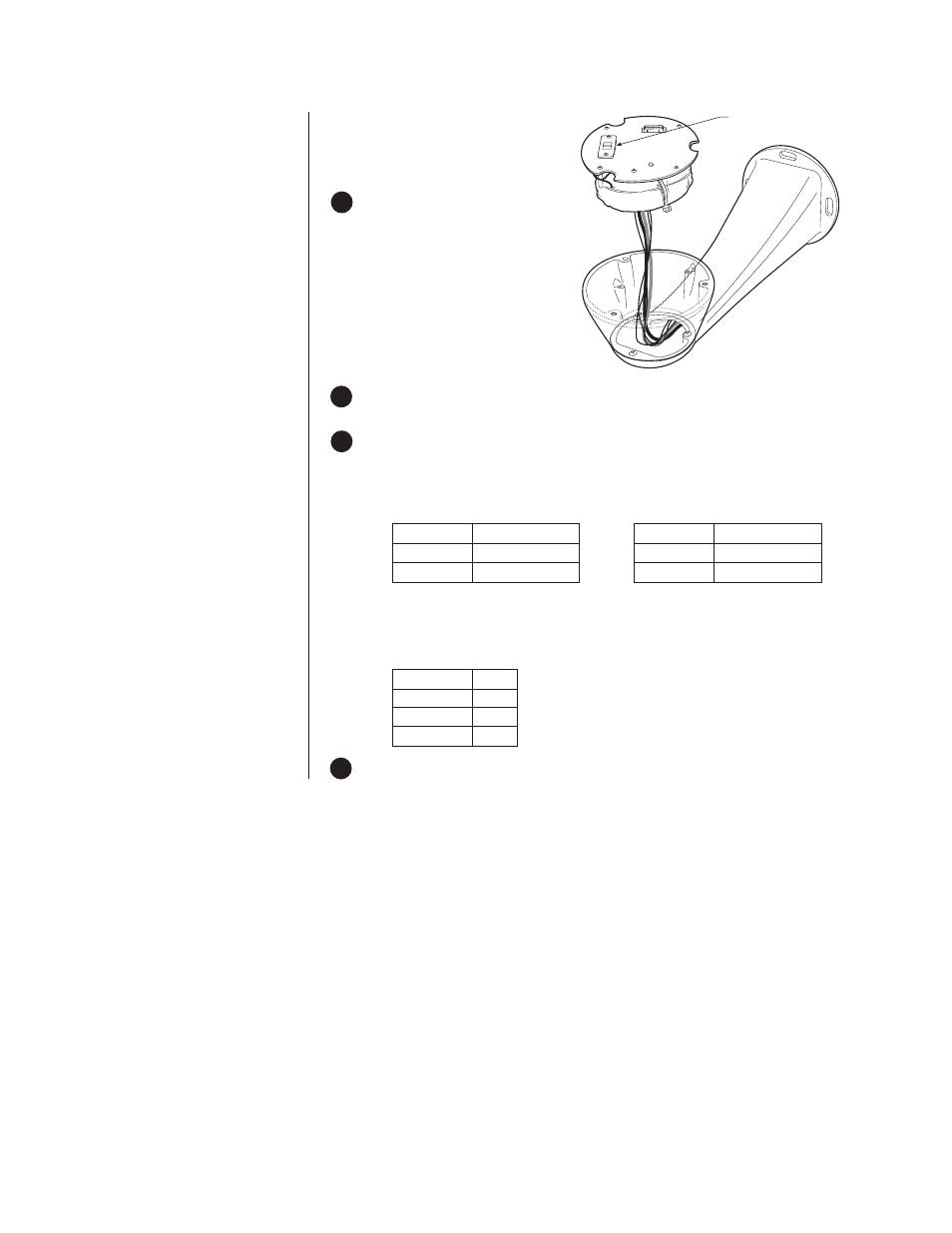

Route the wires and cables through
the center of the Esprit mount. Re-
install the transformer module into
the base. The transformer module
can be positioned in the mount
base in only one orientation.
5
ES3012-5 Model Only – Set the 120/230 voltage selector switch on the trans-
former to the appropriate voltage.
6
Connect wires and cables.
a. Connect to power. Use the two supplied clamp connectors to connect the AC line
and neutral.
120/230 VAC 24 VAC
Black wire Input (AC Line) White wire Input (AC Line)
White wire AC Neutral White wire AC Neutral
Green wire Ground Green wire Ground
b. Connect the video coaxial cable to the BNC connector.
c. Connect the wiring for a two-wire or four-wire control system. This step does not
apply to Coaxitron
® control systems.
Green wire RX-
Red wire RX+
Black wire TX-
White wire TX+
7
Install mount; refer to the installation manual supplied with the mount for instructions.
120/230 VOLTAGE
SELECTOR SWITCH
