PCAN-USB Hub – User Manual
14

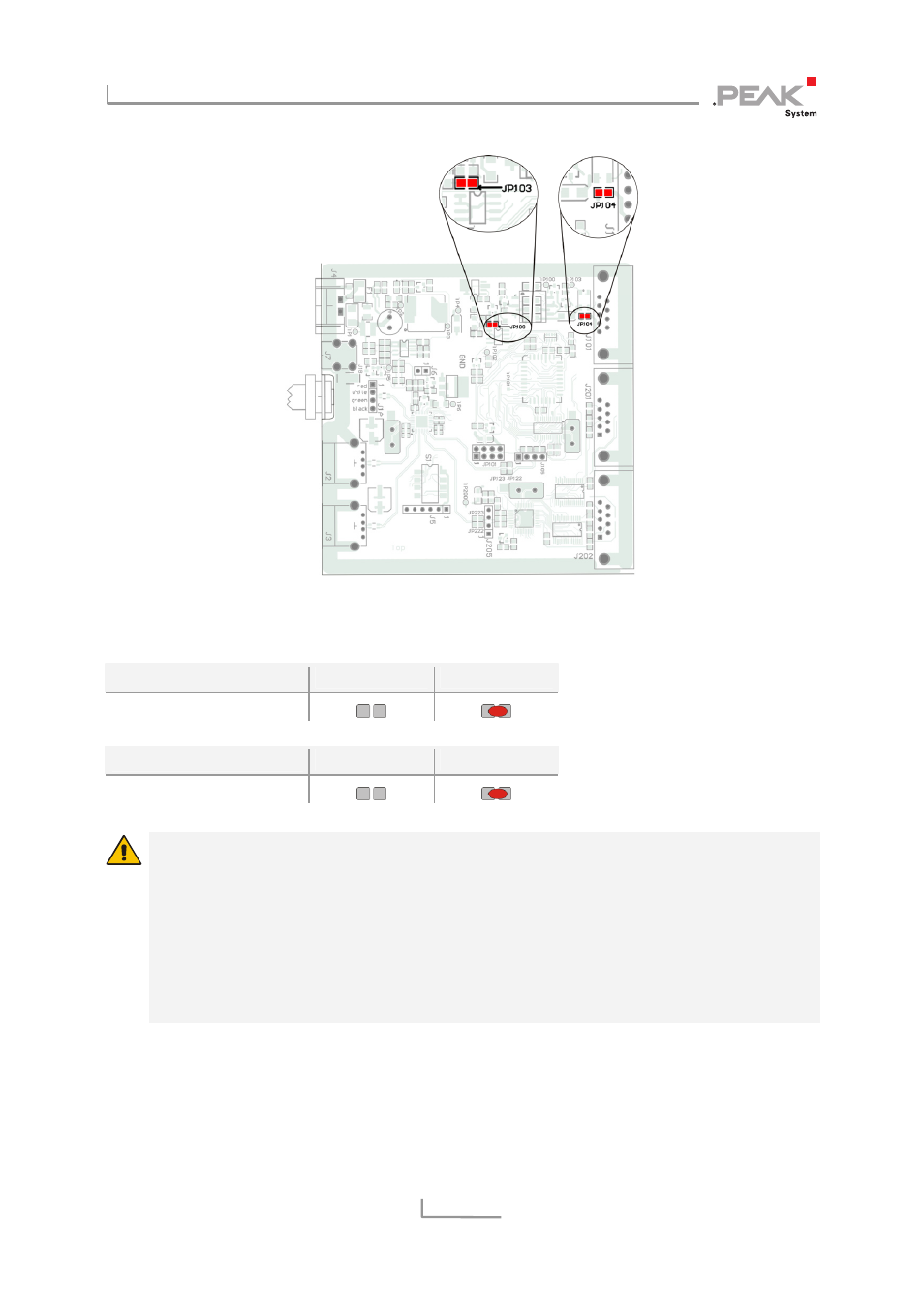

Figure 3: Positions of the solder fields JP103 and JP104
on the PCB of the PCAN-USB Hub
5-Volt supply →
None
Pin 1
JP104
External supply →
None
Pin 9
JP103
Attention! Risk of short circuit! If the option described in this
section is activated, you may only connect or disconnect CAN
cables or peripheral systems (e.g. external bus converters) to or
from the PCAN-USB Hub while it is de-energized (the hub is not
connected to the computer). Consider that some computers still
supply the USB ports with power even when they are turned off
(standby operation).
