20-E NGLISH E NGLISH -21
Preparation
Setting-up
Projection methods
The projector can be set up so that any one of the following four projection
methods can be used. Select whichever projection method matches the
setting-up method. (The projection method can be set from the OPTION
menu. Refer to page 40 for details.)
FRONT/REAR
FRONT
REAR
(Factory default setting)
NOTE:
B You will need to purchase the separate ceiling bracket (ET-PKE300) when
using the ceiling installation method.
Projector position
The projection range of this projector is 1.2 m – 7.4 m.
The lower edge of the projected image falls about 0.1 m from the center of
the lens.
For details about projected image distances, refer to page 65.
DESK/CEILING
DESK CEILING
NOTE:
B It is better to shut down the computer before turning off the MAIN POWER
switch of the projector.
B Refer to the list of compatible signals on page 61 for the types of RGB
signals which can be input to the projector by connecting a computer.
B Only one audio system circuit is available for the AUDIO IN L-R jacks, so if
you wish to change the audio input source, you will need to remove and
insert the appropriate plugs.
B The PT-AE200U does not have a DVI-D input (DVI-D IN) connector.

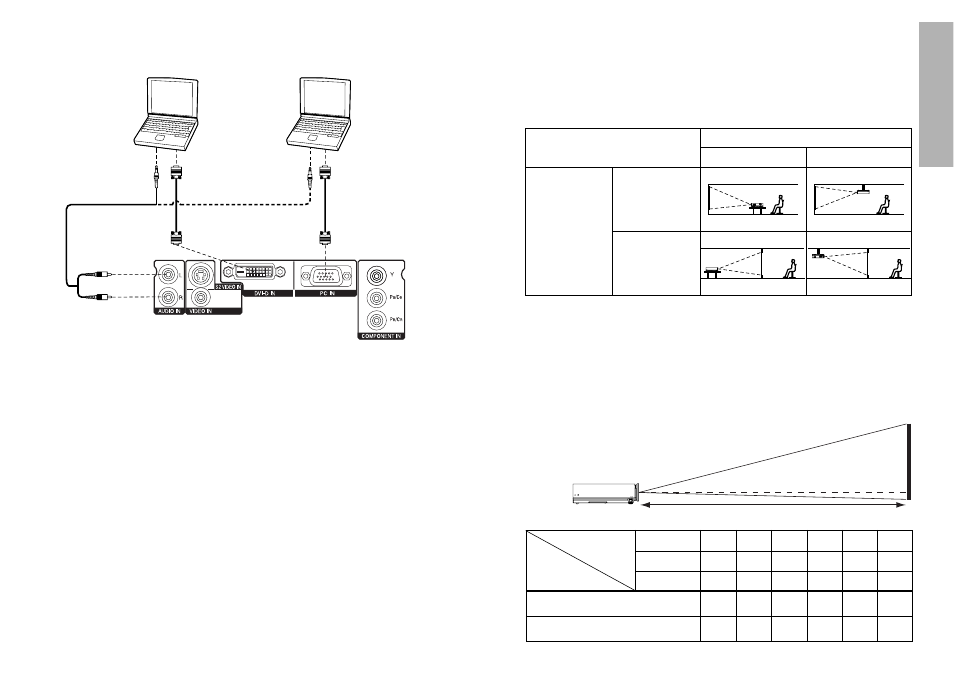

Example of connecting to computer
Computer Computer
To RGB
output To audio
output To audio
output To DVI-D
output
* This illustration is an example of
connection for the PT-AE300U.
Projection Distance
Projection
Distance
0.9 m
(2´11˝)
1.2 m
(3´11˝)
1.4 m
(4´7˝)
1.9 m
(6´2˝)
2.2 m
(7´2˝)
2.5 m
(8´2˝)
2.9 m
(9´6˝)
3.1 m
(10´2˝)
3.7 m
(12´1˝)
4.7 m
(15´5˝)
5.6 m
(18´4˝)
6.2 m
(20´4˝)
7.4 m
(24´3˝)
Minimum Distance
Maximum Distance
Screen Size
(16:9) 0.5 m
(1´7˝)
1.3 m
(4´3˝)
0.8 m
(2´7˝)
1.8 m
(5´10˝)
1.0 m
(3´3˝)
2.2 m
(7´2˝)
1.3 m
(4´3˝)
3.3 m
(10´9˝)
1.9 m
(6´2˝)
4.4 m
(14´5˝)
2.5 m
(8´2˝)
40 ˝ 60 ˝ 80 ˝ 100 ˝ 150 ˝ 200 ˝ Diagonal length
Height
Width
