MAINTENANCE

General Maintenance

Drive Belt Installation

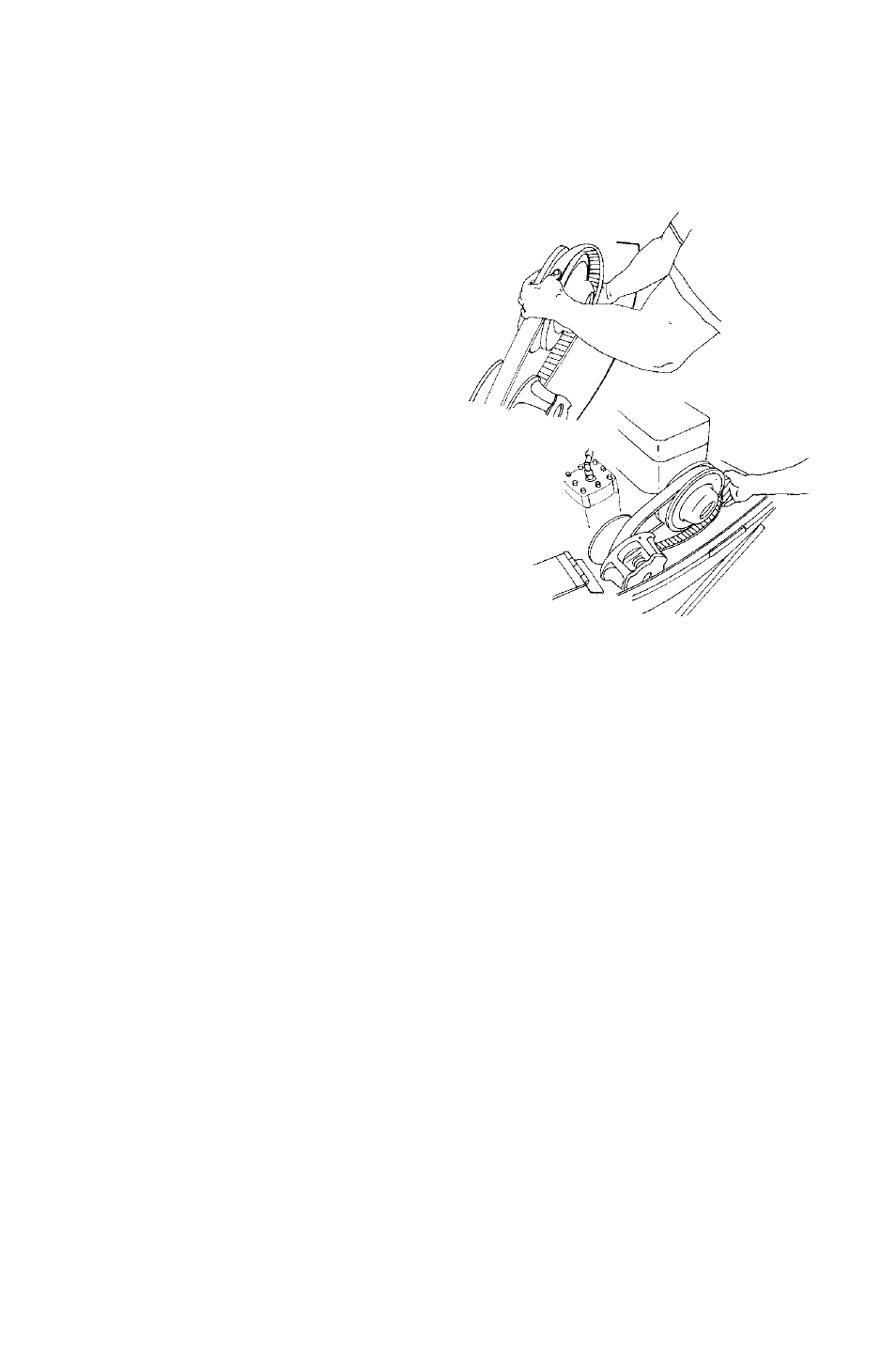

1. Drop the drive belt over the

drive clutch and pull back the

slack (A). NOTE: To ensure

satisfactory belt life, install

belts so they operate in the

same direction of rotation by

positioning the identification

numbers so that you can read

them. If required, separate the

sheaves as outlined in the belt

removal procedures.

2. Turn the driven clutch

moveable sheave clockwise

while pushing inward and

forcing the belt down between

the sheaves.

3. Hold the belt down between the sheaves and roll the bottom

portion over the outer clutch sheave (B). Work the belt to the outer

edge of the sheave.

4. Close the clutch guard and reinstall the retaining pin.
5. Close and secure the hood and release the parking brake.
