Page 12

Chapter 1-Hardware Description

1-8

Connecting Cables on the RMX 1500

To connect the cables:
•

For the RTM-IP 1500 module:
—

Connect the Media cable to LAN 2 port.

—

Connect the Network cables to the MNG (Signaling) port &

MNGB (Management Network) port.

—

(Optional) Connect the Shelf Management cable to the Shelf port.

•

For the RTM ISDN 1500 module:
—

Connect the E1/T1 cables to their PRI (1-4) ports.

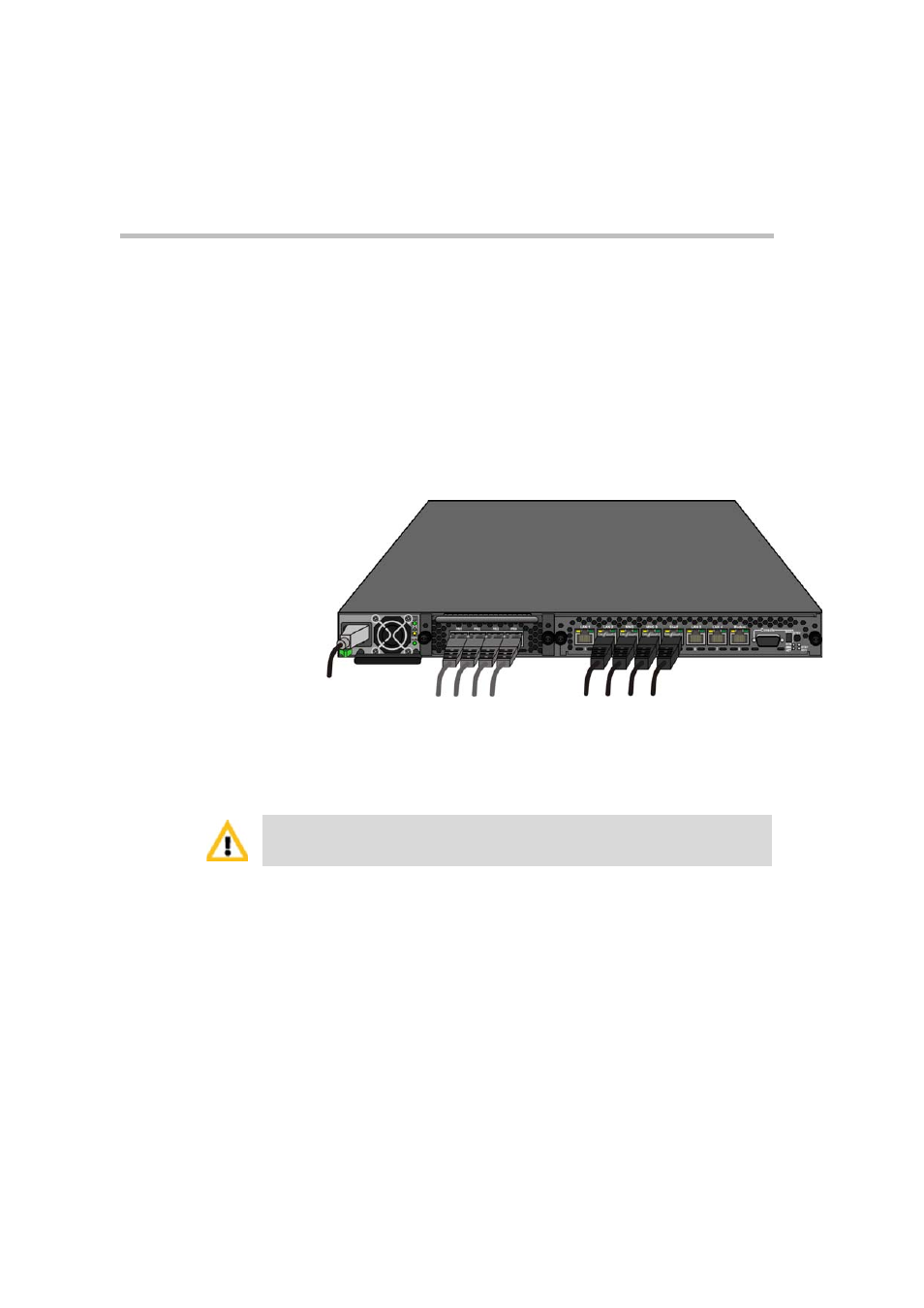

Figure 1-1

RMX 1500 Rear Panel View with AC Power and Communication

Cables

First-time Power-up

For first entry installation, you must insert the USB key containing the

modified IP addresses in USB slot on the RMX’s front panel. For more

information see, the RMX 1500/2000/4000 Getting Started Guide,

"Procedure 1: First-time Power-up” on page

2-19

Turn ON the power by pressing on the power switch located on the

front panel of the RMX 1500.

E1/T1 PRI
Connection(s)

Power Cable

LAN 2; media, MNG; signaling,
MNGB; management & Shelf

The LAN 1, LAN3, LAN4 and Modem ports are not be used and the plastic caps
covering those ports should not be removed.
