Patton electronic 1012ARC User Manual
Page 10
APPENDIX D
INTERFACE SETTINGS
PATTON MODULAR INTERFACE - 8/10 Wire RJ-45
Contact Number
Circuit
Description
1
N/A
Not Used
2
125
DSR
3
109
Received Line Signal Indicator
4
108 / 2
DTE Ready
5
102
Signal Common
6
104
Received Data
7
103
Transmitted Data
8
106
Clear to Send
9
105 / 133
Request to Send / Ready for Receiving
10
N/A
Not Used
Pins 2-9 conform to the EIA/TIA-561 eight position non-synchronous interface standard.
17

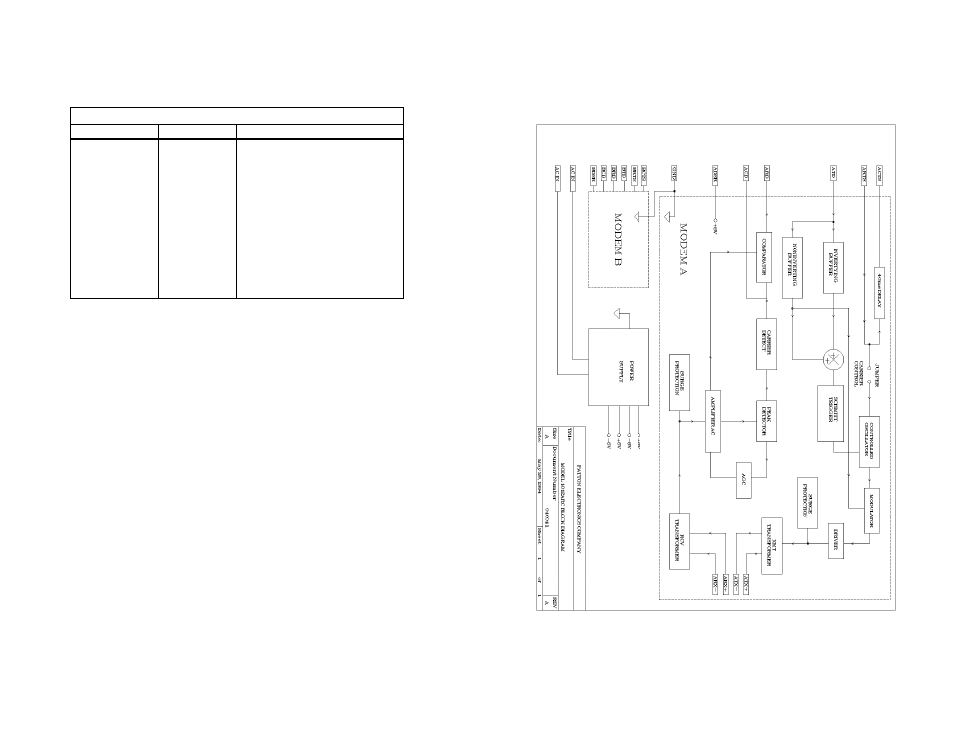

APPENDIX E
BLOCK DIAGRAM
Copyright ©
Patton Electronics Company
All Rights Reserved
18
