Patton electronic 1082 User Manual
Page 10
10

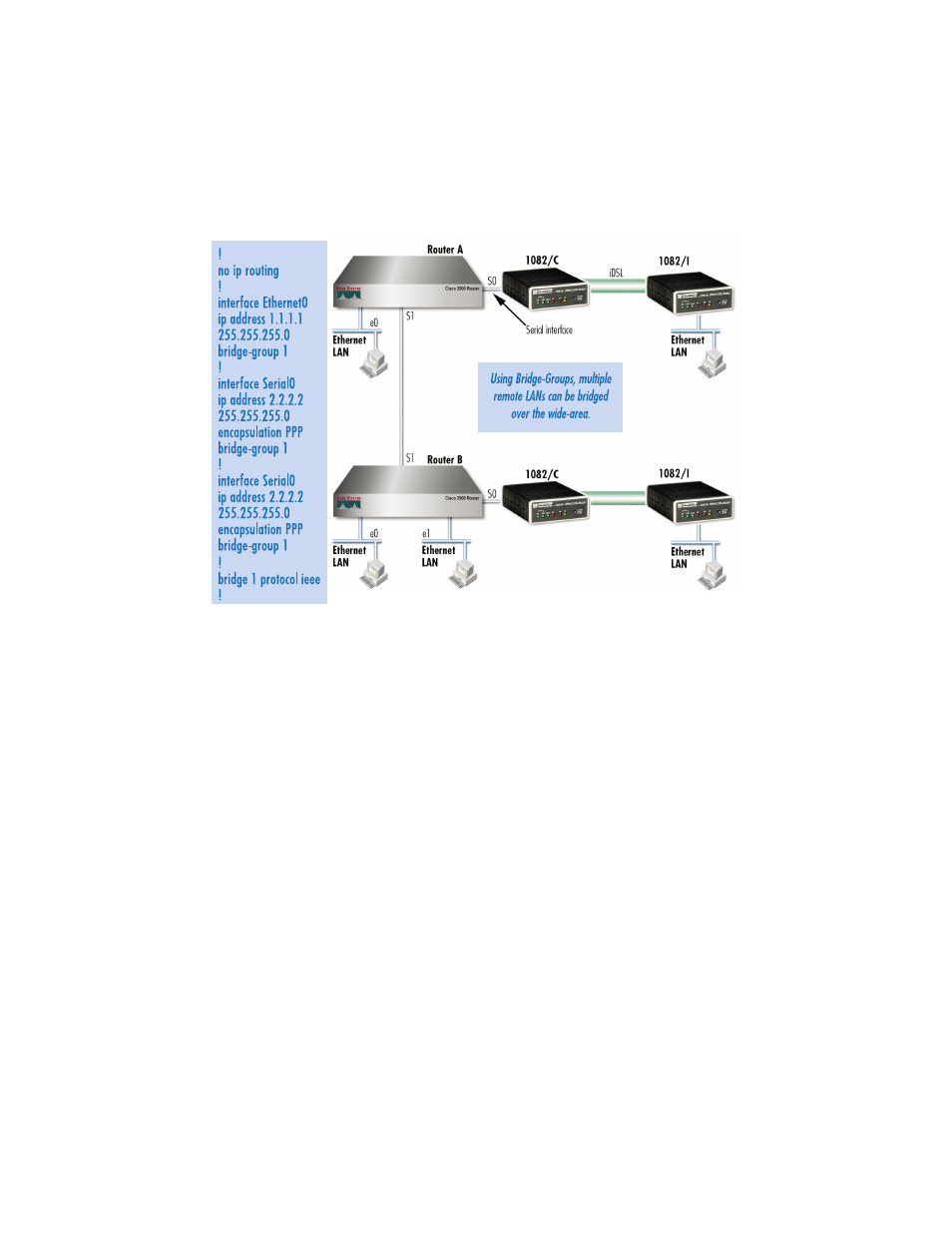

Figure 3.
Transparent bridging between two routers over a serial interface
Figure 3 illustrates transparent bridging between two routers over a
serial interface (s0). Bridging will occur between the two Ethernet inter-
faces on router A (e0 and e1) and the two Ethernet interfaces on router B
(e0 and e1).
