Installing the Flat Panel Display (CTM-MS2)
WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION
OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE
DAMAGE TO THE FLAT PANEL.
1.
Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert
the top hooks over the upper rod. The lower hooks should rest on the lower rod (Figure 17).

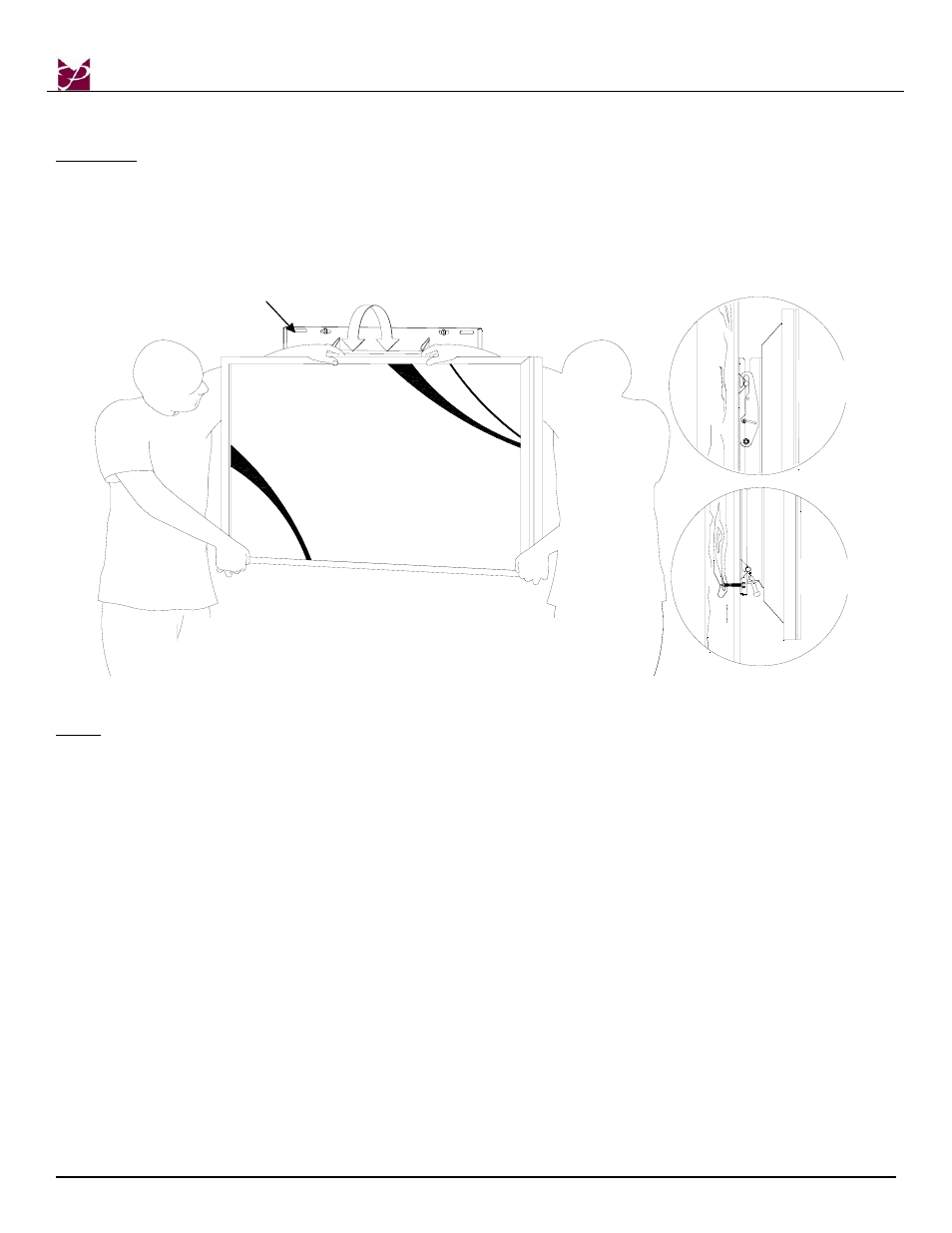

Figure 17
NOTE: Although not depicted in the illustrations shown above, the width of this wall mount will
encompass four wall studs (three studs if 24” apart).
Top
Wall Plate
Bottom
