Premier Mounts CTM-MS2 - Manual (Page 11)

CTM-MS2
Installation Manual Page - 11 -
L
C

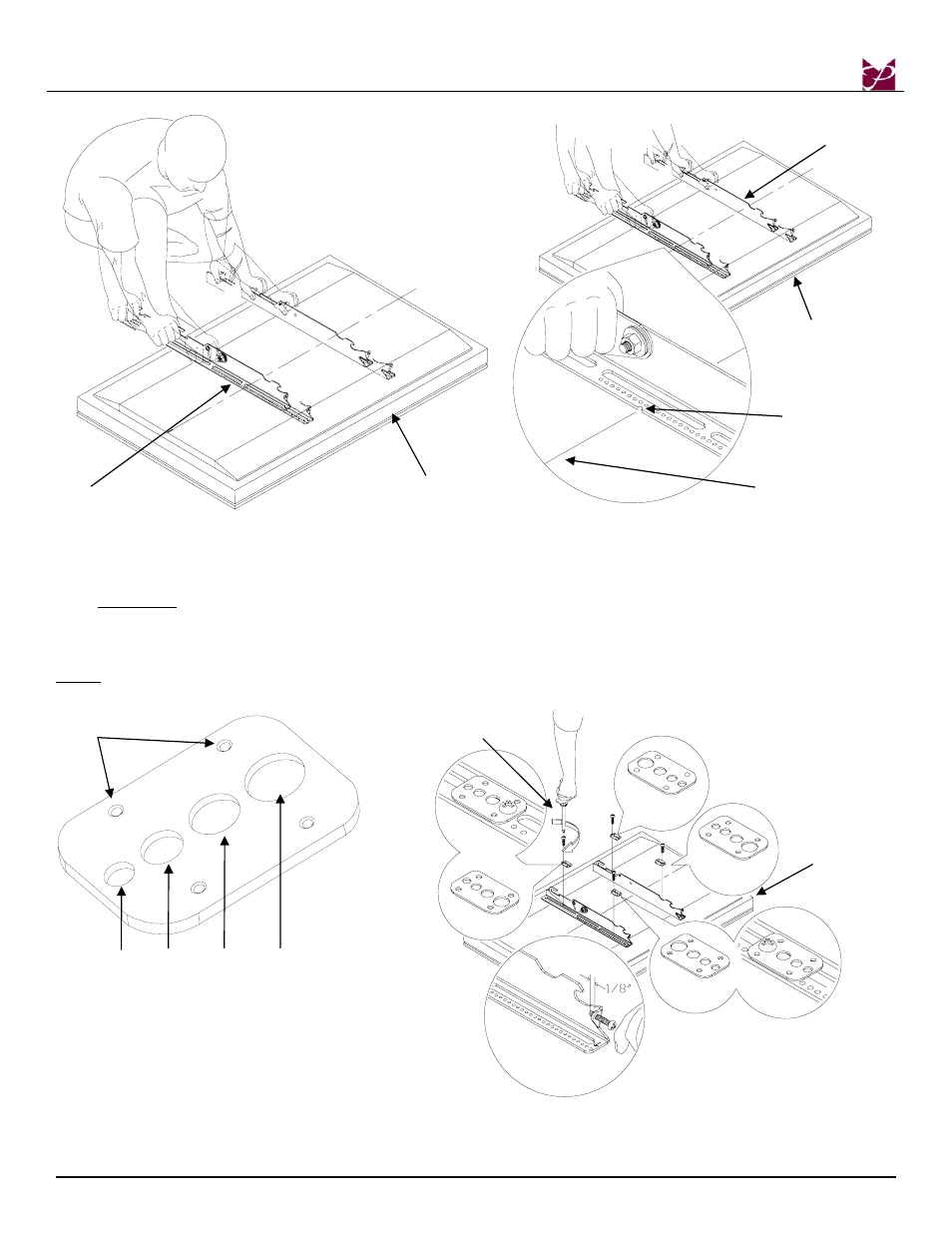

Figure 8 Figure 9
7. The Griplates™ have M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires.
EXAMPLE: If your plasma uses M8 x 20 Phillip screws. Use the M8 mounting points (Figure 10).
8. Once the mounting brackets are aligned secure the Griplate™ to the flat panel. Use (1) Griplate™ per
mounting point (Figure 11).
NOTE: The dimples of the top plates have to be facing up and the bottom dimples must be facing down.
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING UP
DIMPLES
FACING DOWN
Figure 10 Figure 11
Bottom of the
Flat Panel
Align the Mounting
Brackets
Mounting Bracket
Bottom of Flat
Panel
Center of
Viewing Guide
Center of Flat
Panel
Bottom of Flat
Panel
Dimples Facing
Up
M4 M5 M8 M6
Screw Driver
