CTM-MS2
Installation Manual
Page - 13 -
4.
Level the wall plate with the reference arrow pointing up to the ceiling (Figure 15).
5.
Drill six (6) ¼" pilot holes to the marked wall.
6.
Secure the plate using the six (6) 5/16" lag bolts and flat washers (Figure 16).
16"

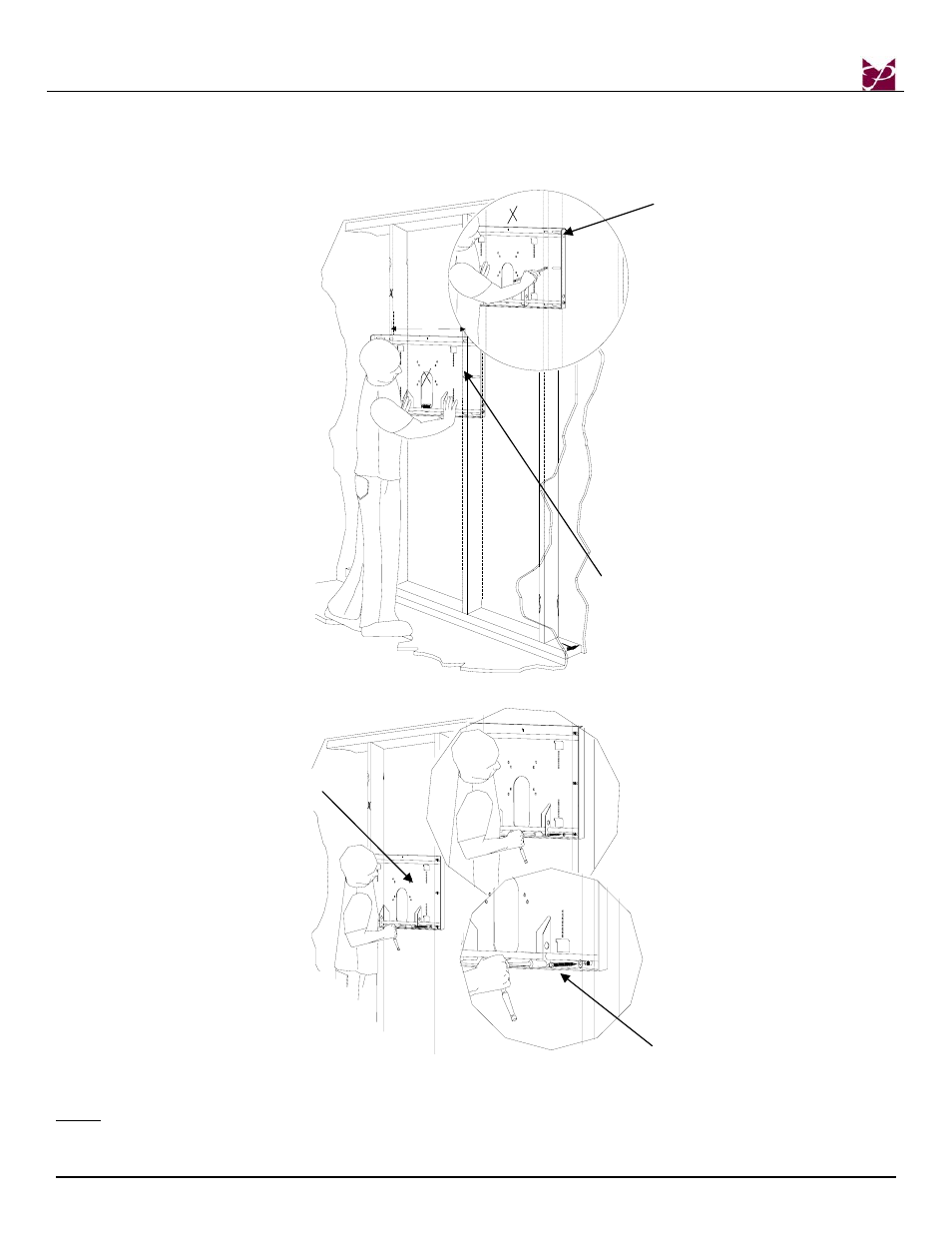

Figure 15
Figure 16. Wood Installation
NOTE:
Although not depicted in the illustrations shown above, the width of this wall mount will
encompass four wall studs (three studs if 24” apart).
Wall Plate
Mark the six (6) mounting
slot openings
Wall Plate
5/16” x 3” Lag
Bolts
