28
Connections

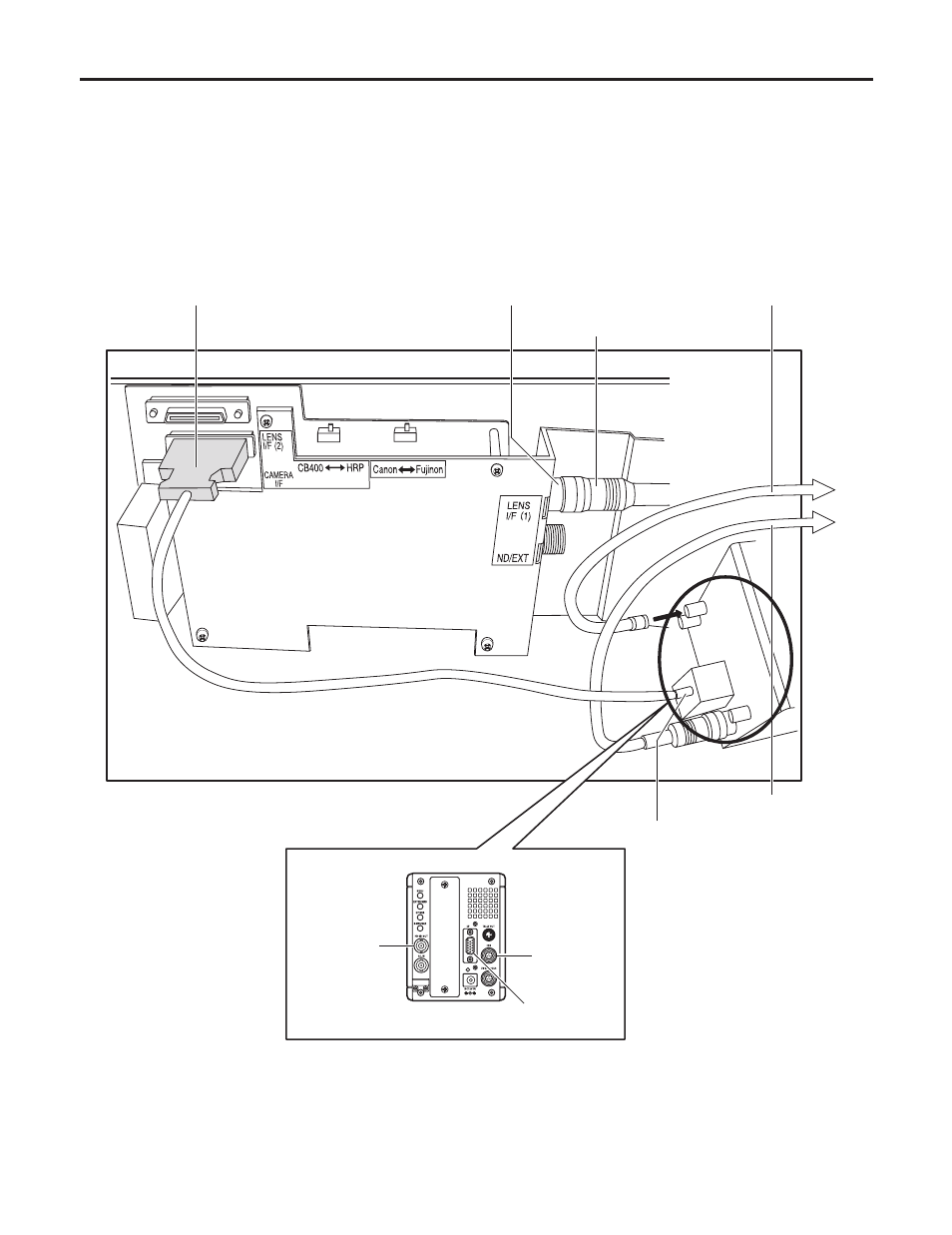

3. Connections with the AK-HC1500
In order to facilitate the connection procedure, stow the camera after connecting its I/F REMOTE connector.
(Particularly when using a large lens, this connector must be connected before the camera is stowed.)
 Use the supplied camera cable for these connections.
 Provide a coaxial cable [approx. 3.3 ft (1 m) long] (Size: 3C-FB or equivalent)
 Upon completion of the connections, bundle the routed cables together using the cable ties (supplied), making sure that the
cables will not be placed near a heater or fan.
I/F REMOTE
connector
AK-HC1500
Connect the cable for the AK-HC1500
to the CAMERA I/F connector.
Connect the ZOOM/FOCUS cable from
the lens to the LENS I/F (1) connector.
Connect this to the I/F REMOTE
connector on the camera.
Coaxial cable
Lens cable
Connect the cable (long
cable) from the lens here.
To SDI IN
connector
of housing
To lens
Connect the
coaxial cable
here (SDI OUT).
Connect the
lens cable
here (IRIS).
