19
Installation

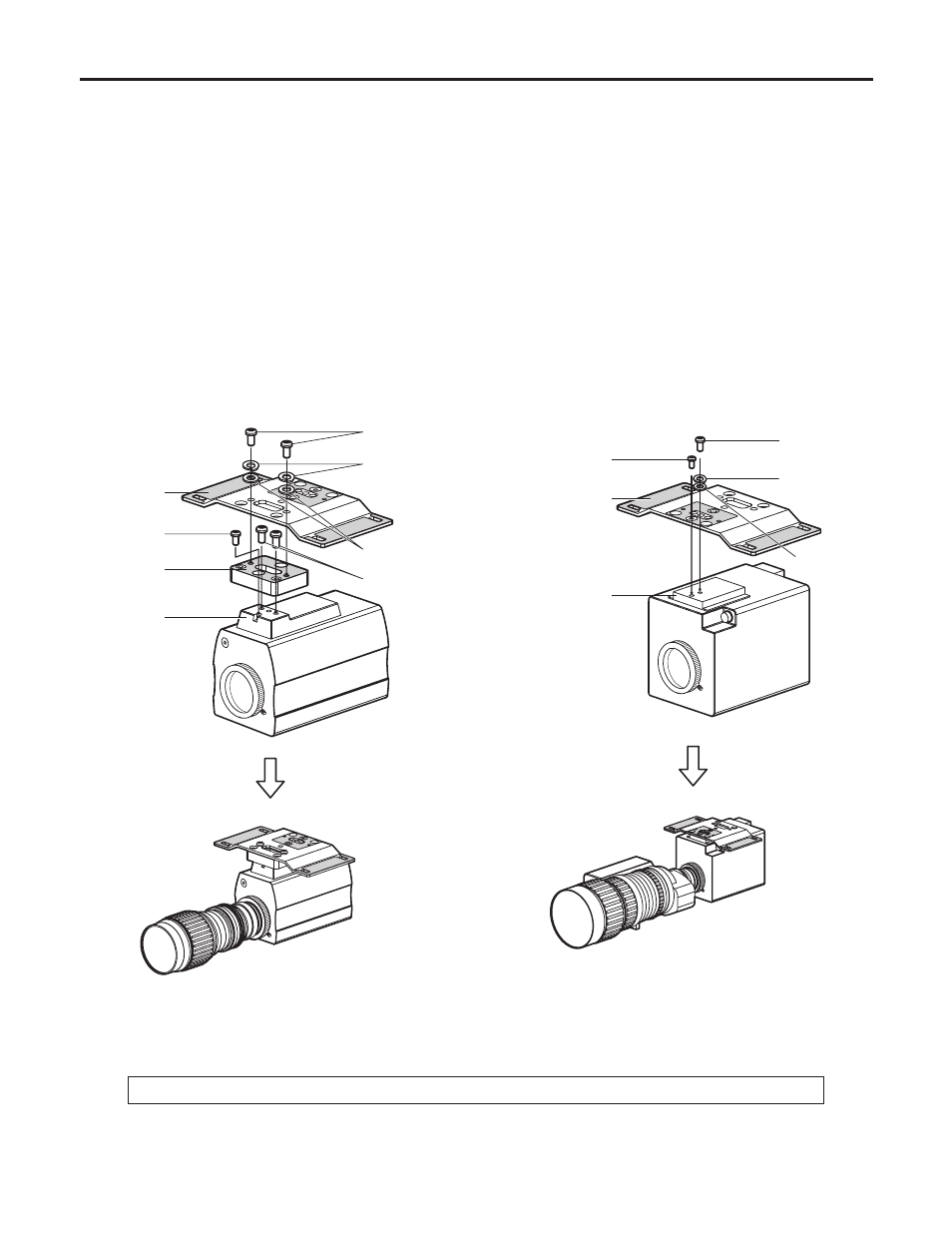

 Attach the positioning 1 screw  (supplied) to the
camera mount .
 Attach the camera mount  to the fan mounting part 
on the top panel of the camera using the 1 screw , flat
washer  and spring washer  (supplied). (The camera
mount points toward the front or back in the opposite
way from a convertible camera. For pointing upward or
downward, make sure that the two sides of the camera
mount are lower than the central area that is attached.)
 Attach the lens to the camera.
Remove the lens hood and zoom lever.
 Attach the positioning screw  (supplied) to the camera
mounting spacer .
 Use the 2 screws  (supplied) to attach the camera
mounting spacer  to the fan mounting seat  on the
top panel of the camera.
 Attach the camera mount  to the camera mounting
spacer  using the 2 screws , flat washers  and
spring washers  (supplied).
( Make sure that the two sides of the camera mount are
lower than the central area that is attached.)
 Attach the lens to the camera.
Remove the lens hood and zoom lever.
The camera mount in the opposite direction from when the AW-E750,
AW-E860 is used as the camera.














To ensure that none of the screws are loose, use a tool to tighten them up securely.
