Panasonic AW-PH650N - Manual (Page 13)

13

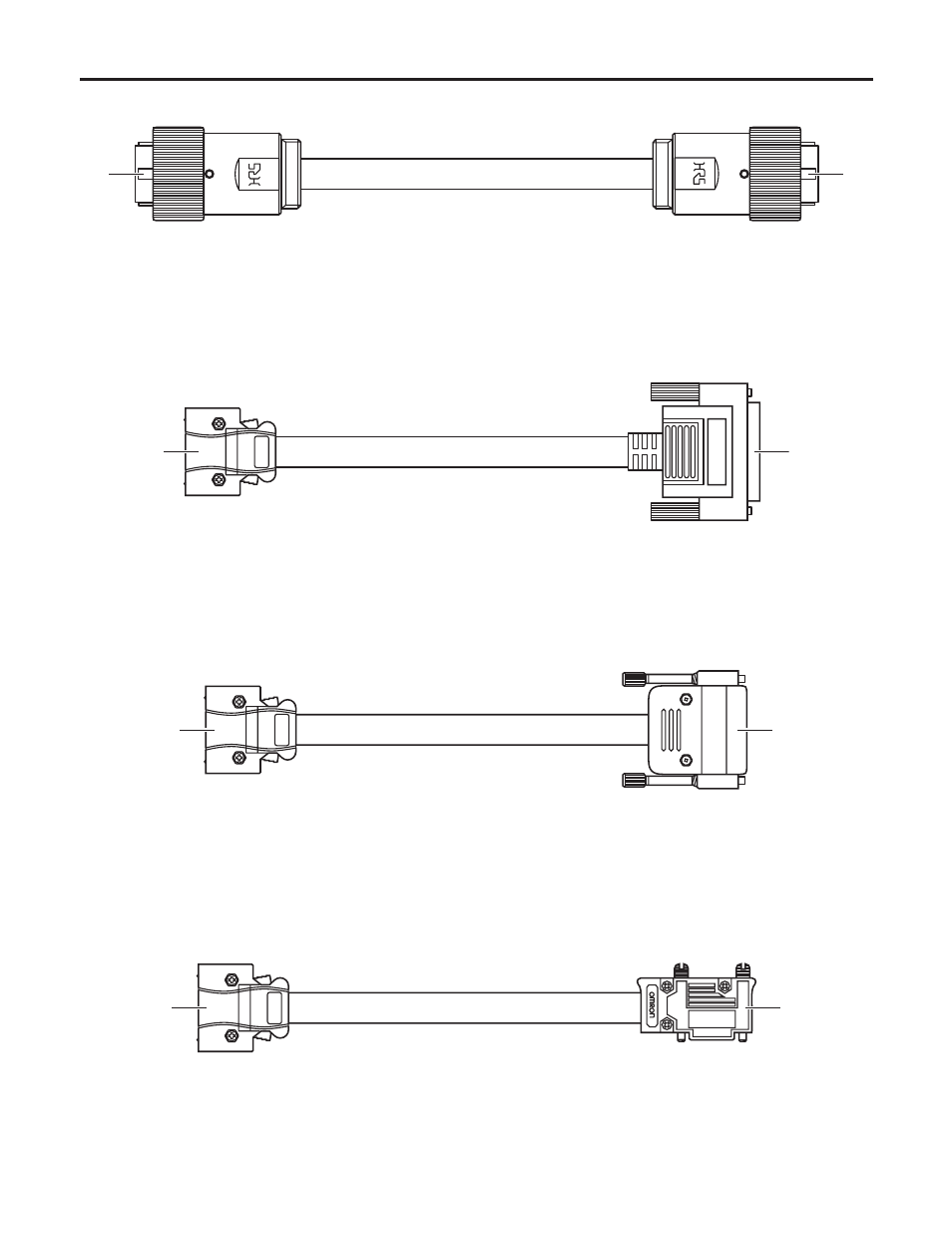

Parts and their functions

(VEEB0152)

 7P round water-proof plug (female)
Connect this to the power connector [POWER] on the
main unit.
 7P round water-proof plug (male)
Connect this to the DC output connector [DC 15V OUT]
on the AC adapter.

(VEEB0176)
 26P connector (male)
Connect this to the CAMERA I/F connector [CAMERA
I/F] on the housing.
 50P connector (male)
Connect this to the CAMERA I/F connector [CAMERA
I/F] on the convertible camera.
 

26P connector (male)
Connect this to the CAMERA I/F connector [CAMERA
I/F] on the housing.

D-SUB 15P connector (female)
Connect this to the I/F connector [CAMERA I/F] on the
AK-HC900 series.
(VEEB0177)
 
 26P connector (male)
Connect this to the CAMERA I/F connector [CAMERA
I/F] on the housing.
 High-density D-SUB 15P connector (male)
Connect this to the I/F connector [I/F] on the AK-HC1500.
(VEEB0178)

