Connecting up 02
17
En
1 Connect the cable from the antenna/
cable TV outlet to the antenna input on
your VCR.
• If you are not connecting a VCR in the
chain, connect it to the ANTENNA IN
(RF IN) jack on this recorder and skip the
next step.
2 Use an RF antenna cable (one is
supplied) to connect the antenna output
of your VCR to the ANTENNA IN (RF IN) of
this recorder.
3 Use another RF antenna cable to
connect the ANTENNA OUT of this
recorder to the antenna input on your
TV.
4 Use a SCART cable (not supplied) to
connect the AV1(RGB)-TV AV connector
on this recorder to the SCART AV
connector on your TV.
5 Use another SCART cable to connect
the AV2(INPUT 1/DECODER) AV
connector to a SCART AV connector on
your VCR.
Tip
• This recorder has a ‘through’ function
which allows you to record a TV program
from the built-in TV tuner in this recorder
while watching a video playing on your
VCR. (To use this feature when the
recorder is in standby,
Power Save
must be set to Off —see Power Save on
page 116).
Using other types of audio/
video output
If you can’t use the SCART AV connector to
connect your TV to this recorder, there are
standard audio/video output jacks, as well as
an S-video and component video output.
Using the supplied audio/video
cable
1 Connect the VIDEO OUTPUT jack to a
video input on your TV.
Use the yellow jack of the supplied audio/
video cable for the video connection.
2 Connect the AUDIO OUTPUT jacks to
the corresponding audio inputs on your
TV.
Use the red and white jacks of the supplied
audio/video cable for the audio connection.
Make sure you match up the left and right
outputs with their corresponding inputs for
correct stereo sound.

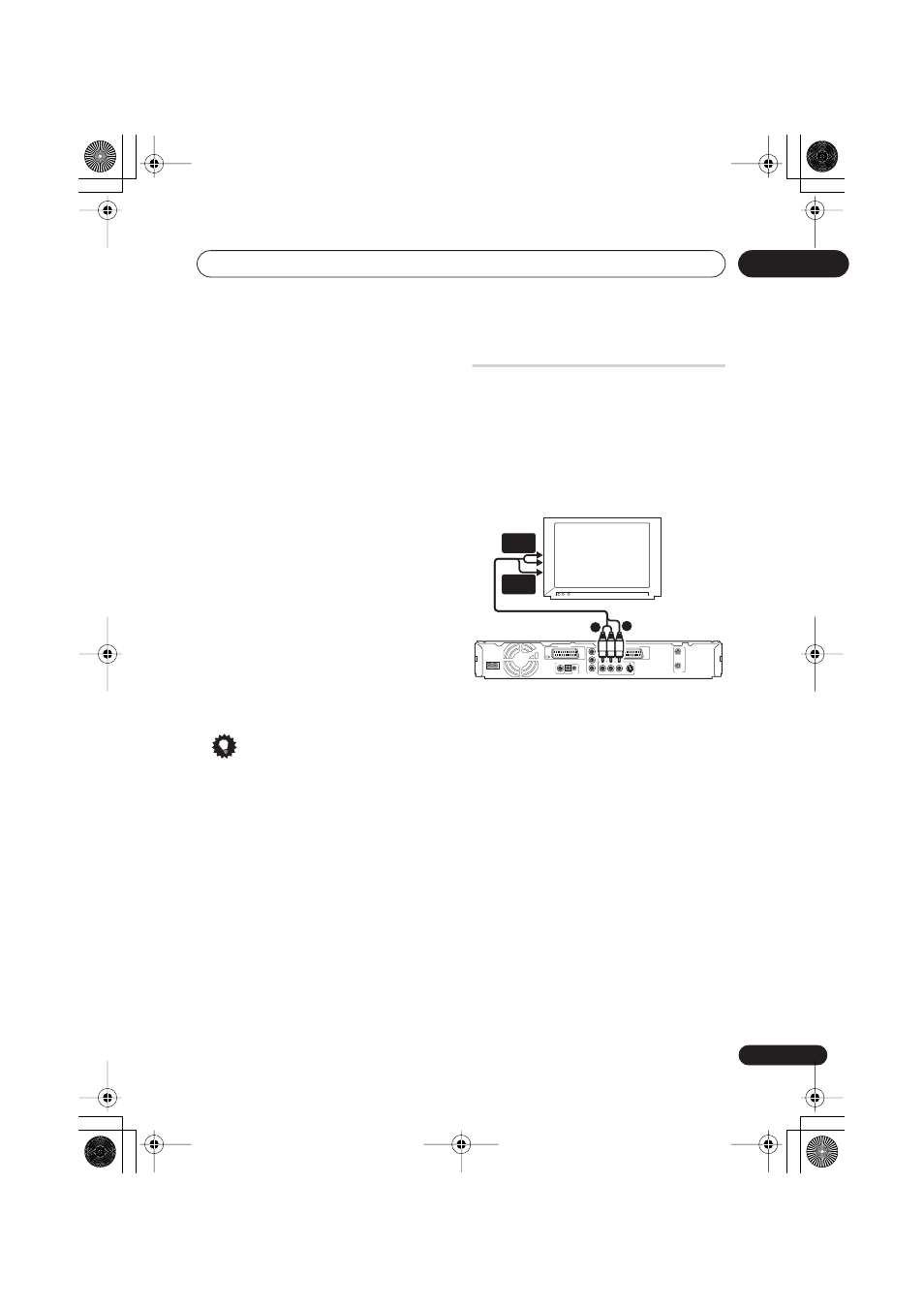

TV
AC IN DIGITAL OUT CONTROL
G-LINK COAXIAL IN S-VIDEO VIDEO AUDIO
L R
COMPONENT VIDEO OUT
Y
P B
P R
ANTENNA
IN
OUT
OUTPUT
AV 1 (RGB) – TV AV 2 (INPUT 1/DECODER)
VIDEO
INPUT
AUDIO
INPUT
1 2
