Connections

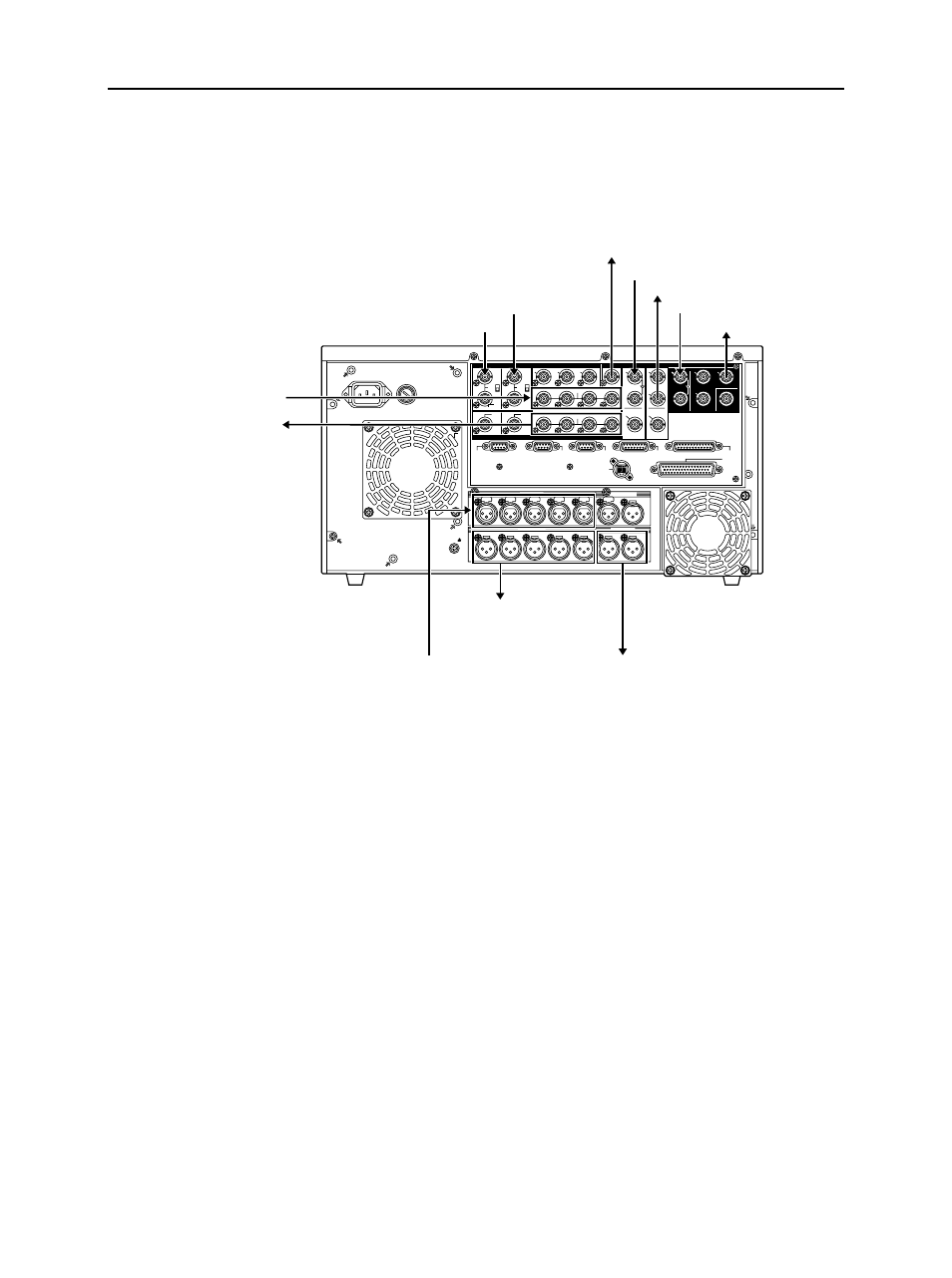

Connection for a single unit
Press the REMOTE button on the front panel to turn the lamp (LOCAL) off.
~ AC IN
SIGNAL GND
OUTPUT CH CH CH CH
INPUT CH CH CH CH
HD
HD
REMOTE
IN
ON
OFF
1 2 3
(SUPER)
(SUPER)
IN IN OUT
HD SDI SD SDI WFM VIDEO OUT REF IN
REF OUT DIGITAL AUDIO
1 OUT1
OUT2 OUT 2
OUT 3
MONITOR
MONITOR (SUPER) SPARE
ACTIVE THROUGH
REMOTE
OUT
REMOTE
IN/OUT
CONTROL
PANEL
V/A
CONTROL
RS-232C
PARALLEL IN/OUT (50P)
SD
SD
SD
ON
OFF
FUSE
125V 5A
ACTIVE THROUGH
CH 1 CH 2 CH 3 CH 4
CH 1 CH 2 CH 3 CH 4
CUE
CUE
L R
OUT IN
AUDIO OUT
AUDIO IN
MONITOR
TIME CODE
PUSH PUSH PUSH PUSH PUSH PUSH
75 Ω 75 Ω
3
4 π 1
2 π 7
8 π 5
6 π
7
8 π 5
6 π 3
4 π 1
2 π
Waveform monitor output
SD SDI input
SD SDI output
HD SDI input
HD SDI output
SD reference input
HD reference input
Digital audio input
Digital audio output
Analog audio/CUE output
Analog audio/CUE input Audio monitor output
