Controls and displays 04
24
En

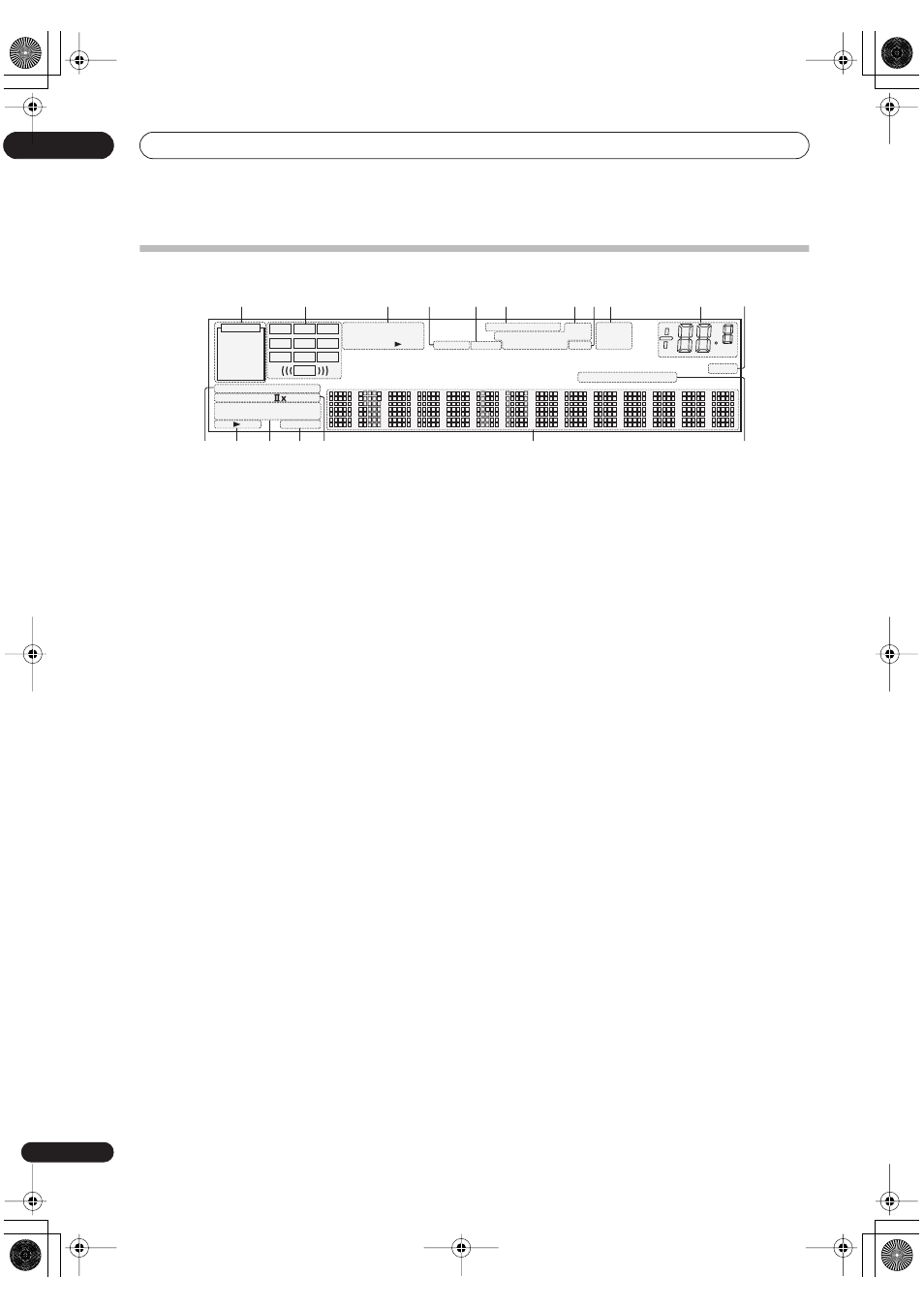

Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 30).
2 Program format indicators
These change according to which channels are active in
digital sources.
L – Left front channel
C – Center channel
R – Right front channel
SL – Left surround channel
S – Surround channel (mono)
SR – Right surround channel
SBL – Left surround back channel
SB – Surround back channel (mono)
SBR – Right surround back channel
LFE – Low frequency effects channel (the ((( ))) indicators light when
an LFE signal is being input)
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected (
DSD PCM lights during the DSD (Direct
Stream Digital) to PCM conversion with SACDs).
4 S.RTRV
Lights when the Sound Retriever is switched on (page 32) .
5 SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected (page 32).
6 PHASE CONTROL
Lights when the Phase Control is switched on (page 10).
7 Sound processing indicators
Light according to the active AV parameter(s) (page 58).
OVER lights to indicate that the level of an analog source
is too high. ATT lights when you use the attenuator
( ANALOG ATT ) to reduce it.
8 V.SB
Lights during Virtual surround back processing (page 31) .
9 TUNER indicators
TUNED – Lights when a broadcast is being received.
STEREO – Lights when a stereo FM broadcast is
being received in auto stereo mode.
MONO – Lights when the mono mode is set using
the MPX button.
10 Master volume level
11 SR+
Lights when the SR+ mode is switched on (page 55).
12 STREAM DIRECT
Lights when Direct / Pure Direct is selected (page 29).
13 Speaker indicators
Indicate the current speaker system, A and/or B (page 52) .
14 Listening mode indicators
THX – Lights when a Home THX mode is selected.
ADV.SURROUND – Lights when an Advanced
Surround mode has been selected (page 28).
STEREO – Lights when the stereo mode is selected
(page 29).
STANDARD – Lights when a Standard Surround
mode is switched on (see Listening in surround
sound on page 27).
15 SLEEP
Lights when the receiver is in sleep mode (page 60).
16 Matrix decoding format indicators
2 PRO LOGIC IIx – This lights to indicate 2 Pro
Logic II / 2 Pro Logic IIx decoding (page 27).
Neo:6 – When one of the Neo:6 modes of the receiver
is on, this lights to indicate Neo:6 processing
(page 27).
17 Character display
Displays various system information.
18 HDMI connection indicators
Light to indicate the HDMI input currently selected.
STREAM DIRECT
HDMI
PCM
L C R
SL S SR
SBL SB
LFE
SBR
AUTO
ADV.SURROUND
STANDARD
SLEEP
THX
STEREO
SP AB
DIGITAL
PRO LOGIC
DIGITAL
WMA9 Pro
SR+
DTS OVER ATT
S.RTRV MONO
dB
DIALOG E
PHASE CONTROL
STEREO
V.SB
TUNED
N eo : 6 2
2
ANALOG
2 HD
DSD PCM
DNR
SOUND Hi-Bit/Sampling
HDMI [ 1 ] [ 2 ]
2 1 3 7 6 5 9 10 11
17 13 12 15 18 16
4 8
14
