Label Specifications 41
Max Min
Label width 8.25" (210mm) 0.75" (19mm)
Liner width 8.375" (212mm) 1.5" (38mm)
Label height/length 24" (609.6mm) 0.75" (19mm)
Gap between labels 10" (253mm) 0.10 (2.5mm)
Width of thru-hole 0.5" (12.65mm) 0.25" (6.325mm)
opening
Distance from edge of
2.25" (57mm) 0.20" (5.06mm)
media to edge of
thru-hole

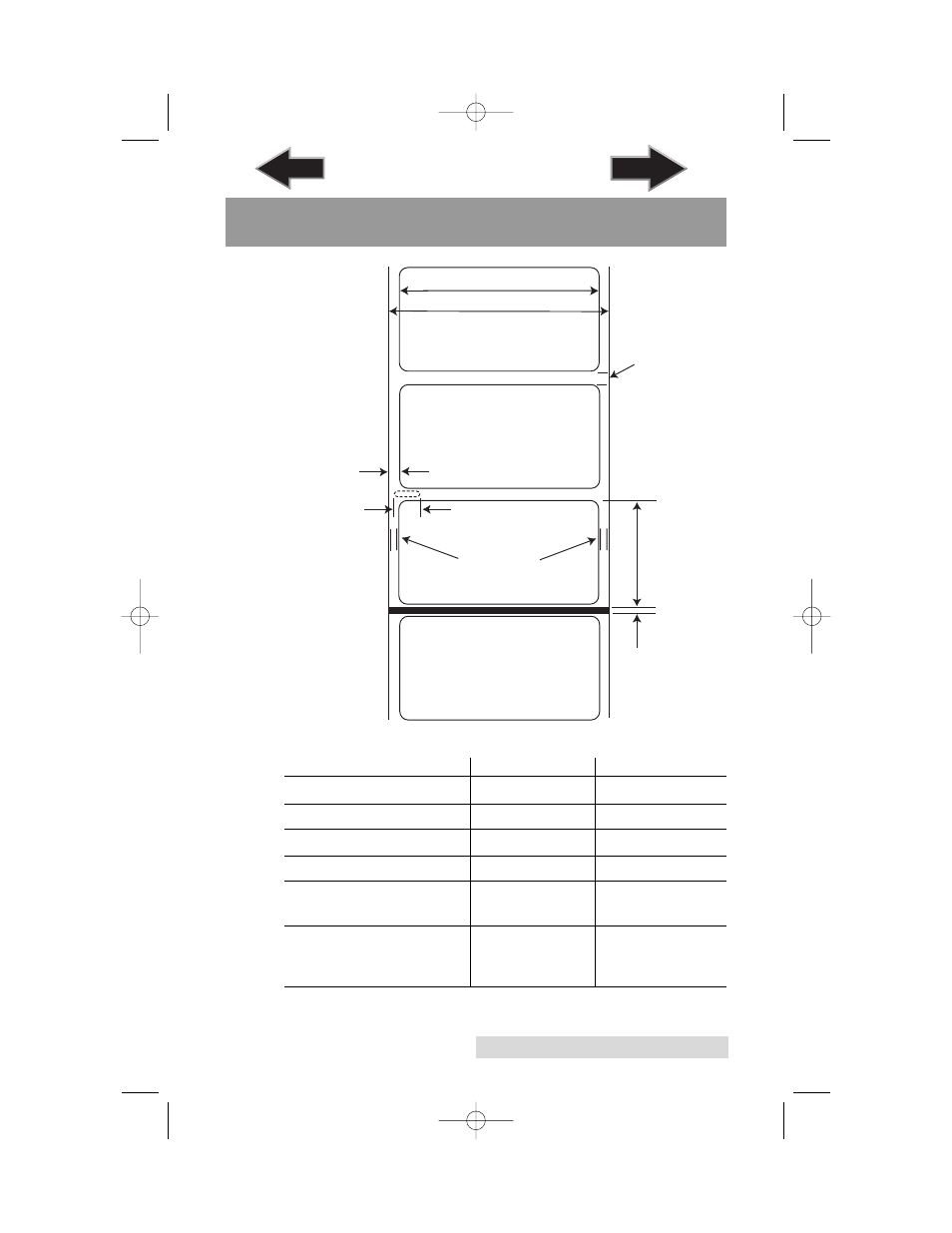

Section 5 : Label Specifications
Label Width
L iner Width
Distance from
e dge of Media
to edge of Label
Width of Opening
Black Mark
Width
Gap Between
Label
s
Label Height
Distance from
e
dge of Media
Label Sensing Methods
Method 1 : Label
Gap Sensing
Method 2 : Thru-Hole
Se nsing
Method 3 : Reflective/Black
Mark Sensing
(Black Mark must be printed
o
n back side of label stock)
Note: See table below for Max and Min values in inches and mm..
