Porter-Cable 17-990X - Manual (Page 9)

9

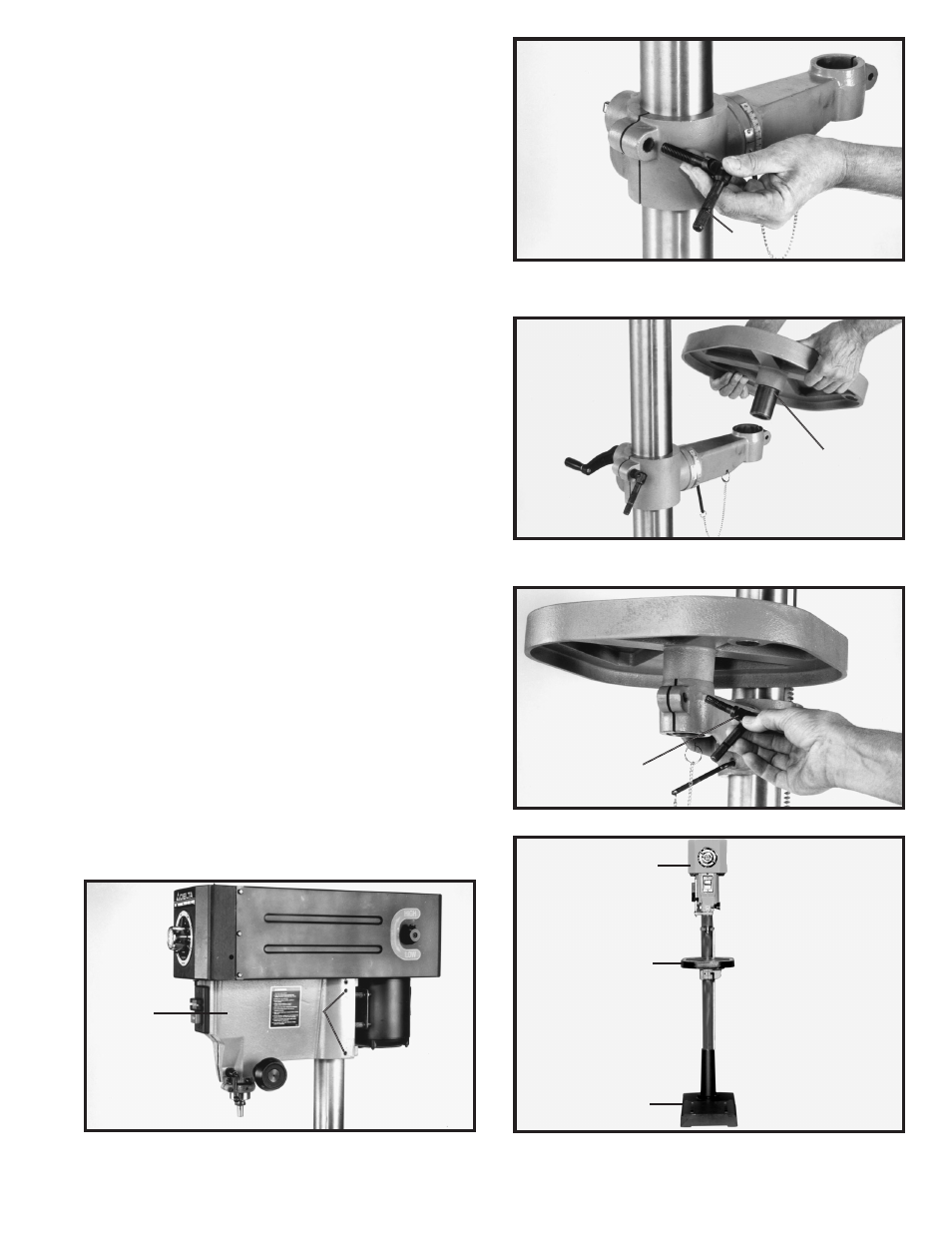

7. Thread clamp handle (M) Fig. 11, into hole in rear of
table bracket, as shown.
10. Place the drill press head (N) Fig. 14, onto the
column as far as it will go. Align head (N) Fig. 14A, to
table (C) Fig. 14A, and base (D) Fig. 14A, and tighten the
two head locking screws (O) Fig. 14 with the 5mm
wrench supplied.
Fig. 11
M
8. Insert table (P) Fig. 12, into hole in table bracket as
shown.
Fig. 12
P
9. Thread table lock lever (Q) Fig. 13, into hole in front
of table bracket as shown.
Fig. 13
Q
Fig. 14
N O
Fig. 14A
N
C
D
