6

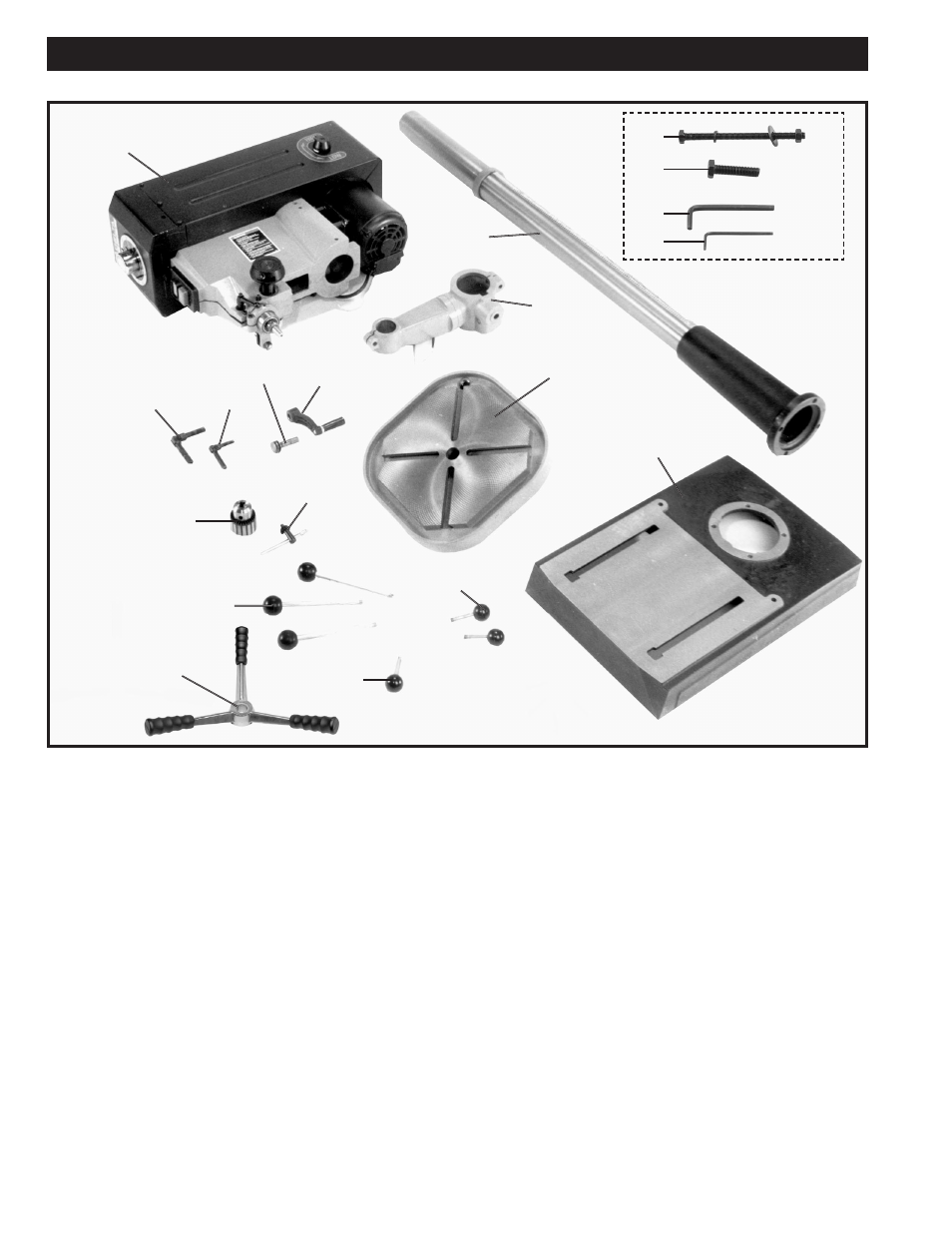

DRILL PRESS PARTS
1 - Drill Press head
2 - Column and table raising rack
3 - Table/column bracket
4 - Lock lever for column bracket 1/2-13x1-1/2"
5 - Lock lever for table 3/8-16x1-1/8"
6 - Worm for table raising mechanism
7 - Table raising and lowering handwheel
8 - Table
9 - Chuck
10 - Chuck key
11A Pinion shaft handles (3) (For model 17-925 ONLY)
11B Pinion shaft handle (For Model 17-990X ONLY)
12 - Speed range changing lever
13 - Speed changing levers (2)
14 - Base
15 - M8 x 125mm carriage head screw (2),
M8 Flat washer (2), M8.1 Lock washer (2),
M8 Hex nut (2)
16 M10 x 40mm hex head screw (4)
17 5mm hex wrench
18 3mm hex wrench
1
2
3
8
14
13
12
11A
9
10
4 5
6 7
Fig. 2
11B
15
16
17
18
