Pioneer PDP-LX508G - Manual (Page 13)

Part names 04
13
En
Eng
lis
h

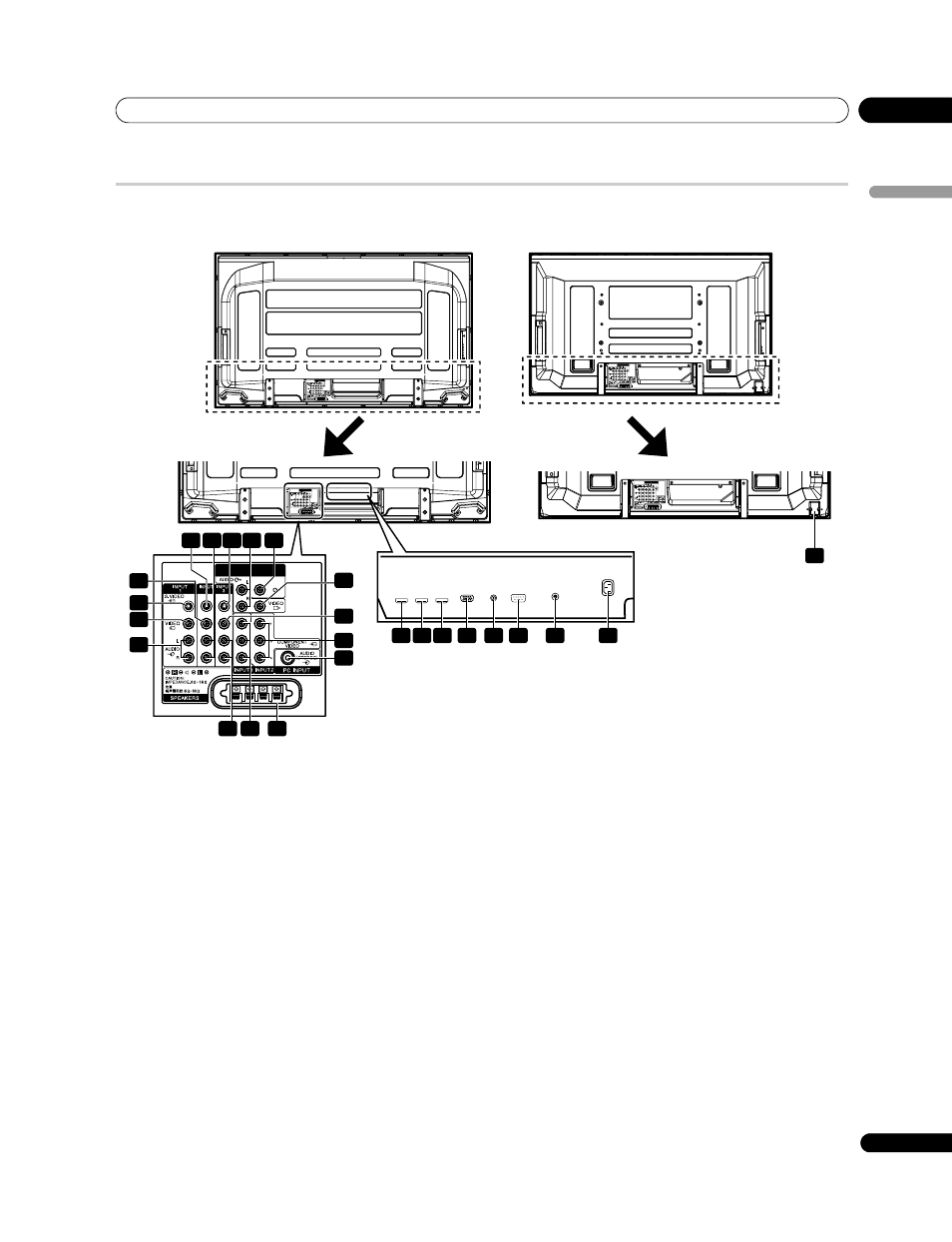

Plasma television
(Rear)
1  button
2 AC IN terminal
3 ANT (antenna) input terminal
4 RS-232C terminal (used for factory setup)
5 CONTROL OUT terminal (supports SR+)
6 PC INPUT terminal (analog RGB)
7 INPUT 5 terminal (HDMI)
8 INPUT 4 terminal (HDMI)
9 INPUT 3 terminal (HDMI)
10 INPUT 1 terminals (AUDIO L, R)
11 INPUT 1 terminal (VIDEO)
12 INPUT 1 terminal (S-VIDEO)
13 INPUT 2 terminal (VIDEO)
14 INPUT 2 terminal (S-VIDEO)
15 INPUT 2 terminals (AUDIO L, R)
16 INPUT 3 terminal (S-VIDEO)
17 MONITOR OUT terminals (AUDIO L, R)
18 SUBWOOFER output terminal
19 MONITOR OUT terminal (VIDEO)
20 INPUT 3 terminal (VIDEO)
21 INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
22 PC INPUT terminal (AUDIO (STEREO))
23 INPUT 1 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
24 INPUT 3 terminals (AUDIO L, R)
25 SPEAKERS L, R terminals
MONITOR OUT SUB WOOFER
MONITOR OUT SUB WOOFER
MONITOR OUT SUB WOOFER
MONITOR OUT SUB WOOFER
MONITOR
OUT
SUB
WOOFER
8 9 7 6 5 4 3 2
1
19
22
24 23 25
20
21
10
11
14 15 16 18 17
13
12
* For exact terminal positions, refer to the
terminal position sheet located near the
terminal compartment.
The terminals on the rear panel are common to the PDP-LX608G and PDP-LX508G.
PDP-LX608G PDP-LX508G
