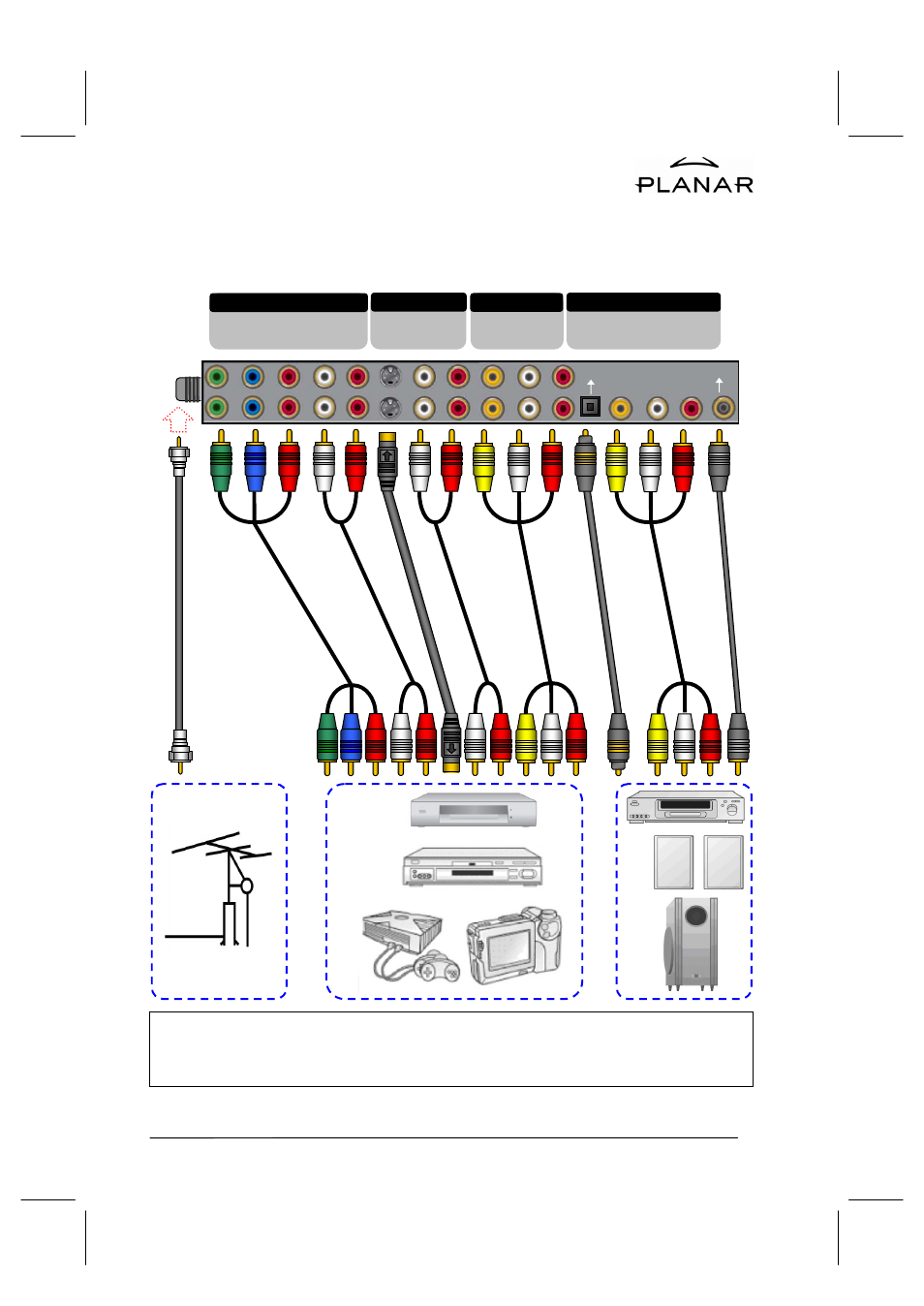

* How to connecting Video Device via general cable ?
Interface II VIDEO BOX
RF IN
ANALOG TV
Component IN S-Video IN Composite IN Video & Audio Out
Y1 Pb1 Pr1 L1 R1 SV1 L1 R1 AV1 L1 R1
Y2 Pb2 Pr2 L2 R2 SV2 L2 R2 AV2 L2 R2 AV L R
Subwoofer S/PDIF
This TV accept different Video Input, if video device has a connector with better quality, please
connect the better one. The sequence of video quality is Component, S-video, Video from the
best quality to the normal one.
