VIDEO DEVICE
(ex. DVD Player or Set-top Box…)

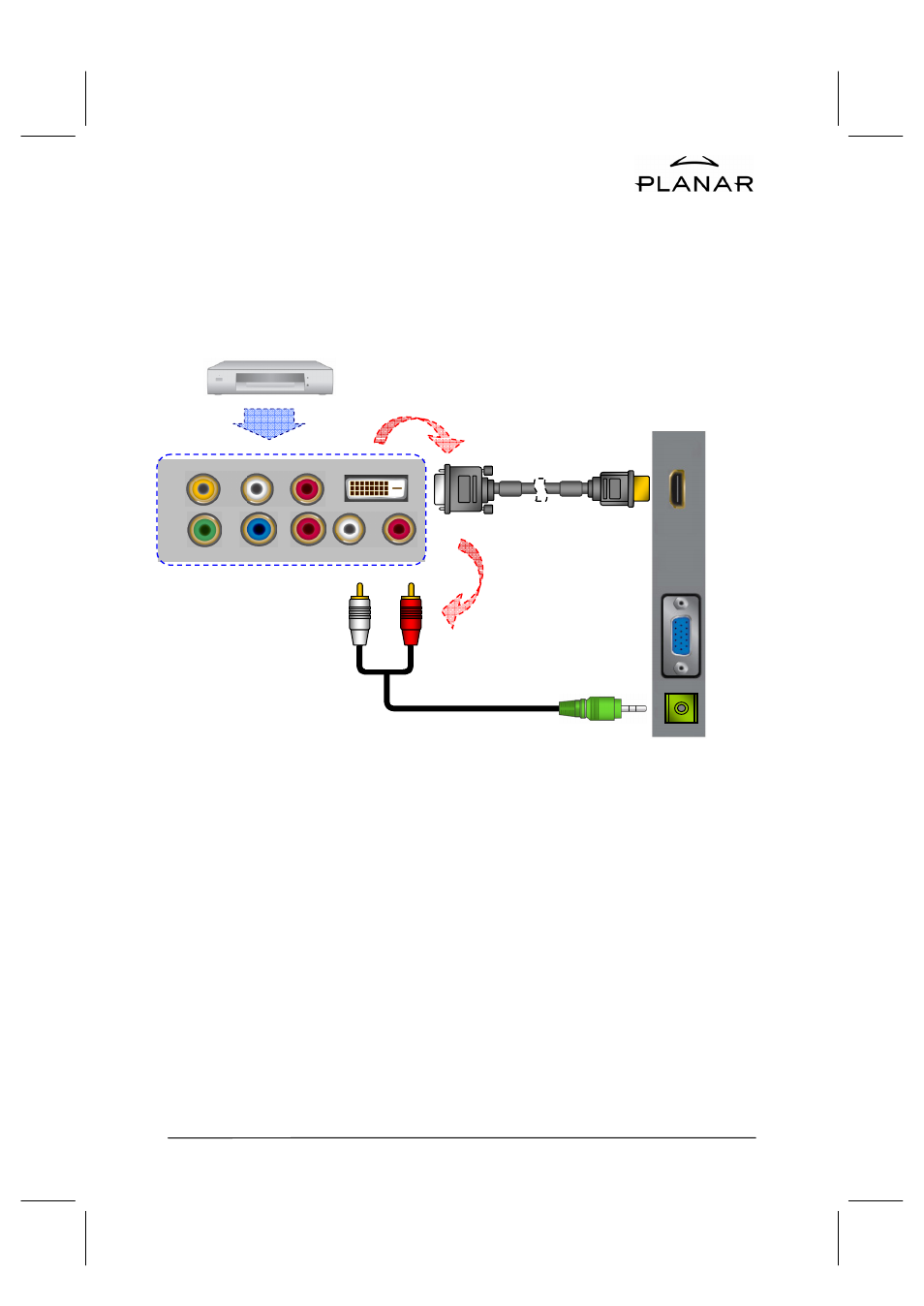

* How to connecting Video Device via DVI –HDMI ?
This can be applied only if there is the HDMI Output connector on the external device.
1. Connect a DVI-to-HDMI cable or DVI-HDMI adapter between the HDMI/DVI connector
On the TV and the DVI connector on the DVD player/ Set-top box.
2. Connect an audio cable between the PC AUDIO IN jack on the TV and AUDIO OUT jack
On the DVD player/ Set-top box.
Interface I
HDMI
D-SUB
AUDIO IN
DVI to HDMI Cable
VIDEO
L R DVI / HDCP
Y
Pb Pr L
R
1.
2.
