13 (E)
CONTENTS
8 Tape transport displays
The tape transport status is displayed here.
: Normal playback or recording
: Playback at a speed slower than 1a
: Playback at a speed faster than 1a
: Fast forwarding (FF)
: Playback in the reverse direction at 1a
: Playback in the reverse direction at a speed
slower than 1a
: Playback in the reverse direction at a speed
faster than 1a
: Rewinding (REW)
: Pause/still
9 Format displays
The recording format and the format of the tape
inserted in the unit are displayed here.
: Counter display
The tape counter, time code, etc. are displayed
here.
The type of value displayed is indicated by CTL, TC
or UB.
; Level meters
These meters indicate the levels of the CH1, CH2,
CH3, CH4 and CUE tracks of the PCM audio
signals.
During recording or while E-E is selected, the levels
of the audio input signals appear; during playback,
the levels of the audio output signals appear.
Using the METER selector button L, the audio
level display is switched from the FULL mode to the
FINE mode or vice versa. (See page
9 )
Parts and their functions

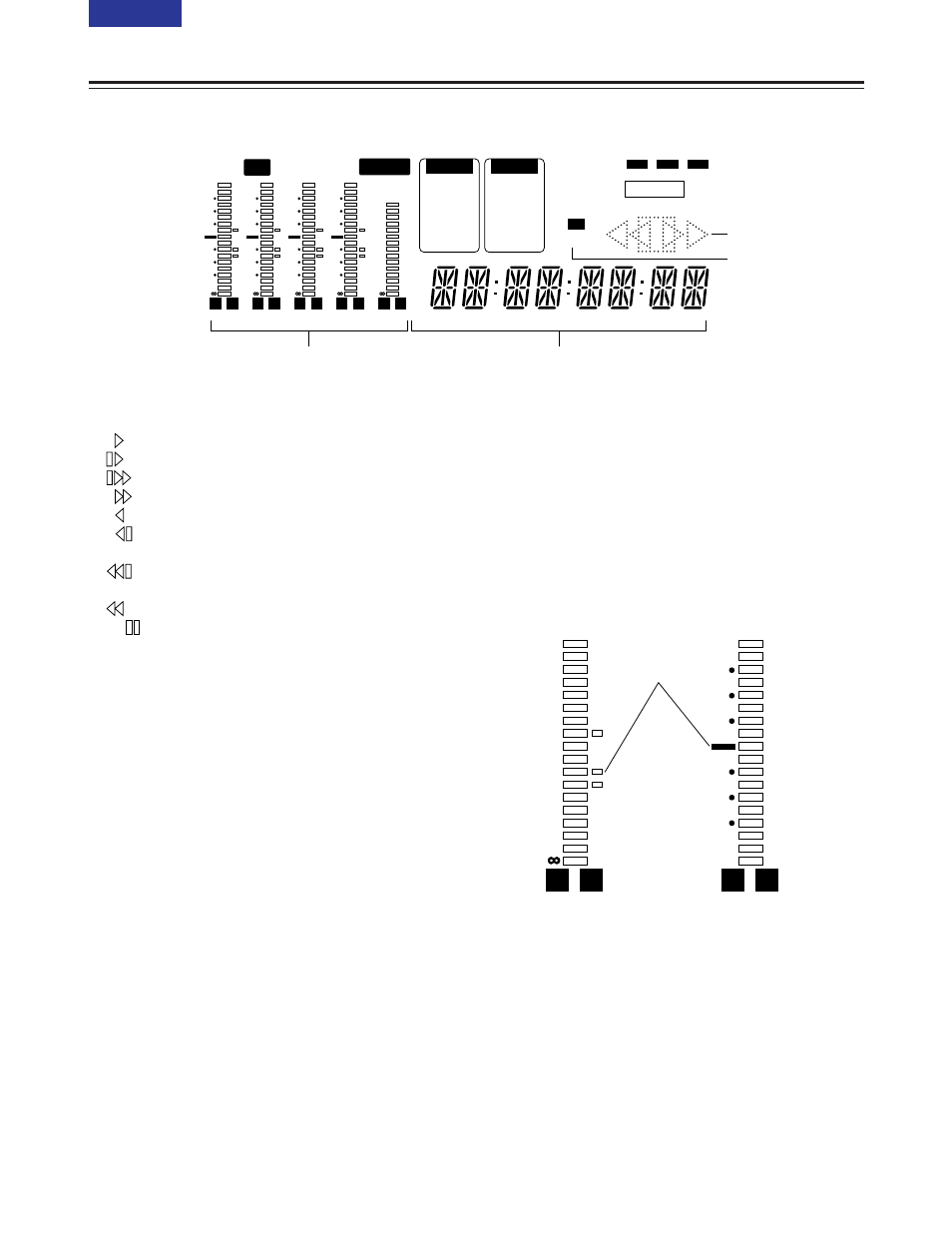

Display panel
CTL
ANALOG
AUDIO
AES/EBU
USER SET
SDI
SDTI/1394
SG
INH
SCH
DVCPRO
50
DVCAM
SERVO
EDIT REC
TC
UB
=
Y PB PR
VIDEO
CMPST
SDI
SDTI/1394
SG 1 2
REMOTE 625
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
CUE
-8
-12
-16
-20
-25
-30
-
L R
8
9
: ;
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
Reference level
(–18 dB)
Each of the dots (O) indicates
a 1 dB scale increment.
FULL mode FINE mode
