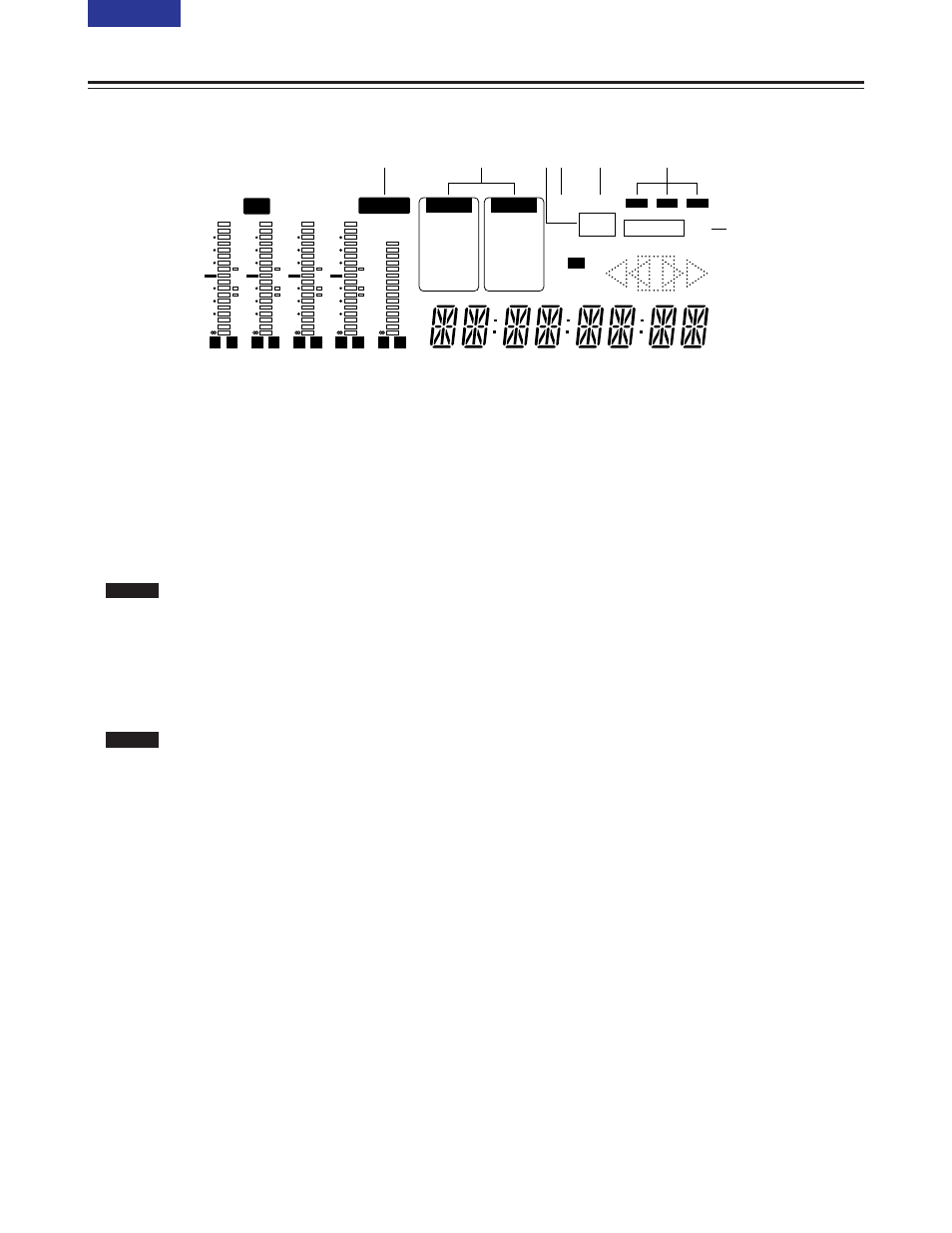

Display panel
1 REMOTE lamp
This lamp lights when the CONTROL switch has
been set to the REMOTE position.
2 INPUT SELECT display area
The characters corresponding to the selected input
signals light. With all input signals except for
analogue audio signals, the fact that no signals
have been selected is indicated by a flashing
display.
Y PB PR : Analogue component video signals
(option)
CMPST : Analogue composite video signals
(option)
SDI : Serial digital video signals
SDTI/1394 : Compressed digital signals (option)
SG/SG 1/SG 2 : Internal reference signals
ANALOG : Analogue audio signals
AES/EBU : Digital audio signals
USER SET : Recording audio signal selection
SDI : Serial digital audio signals
SDTI/1394 : Compressed digital signals (option)
SG : Internal reference signals
3 = lamp
This lamp lights when a cassette tape is inserted
into the VTR.
4 SCH lamp
This lamp lights when the SCH phase of the
external synchronized signal (REF VIDEO) is inside
the prescribed range.
At all other times, the lamp is off.
AUDIO
VIDEO
Parts and their functions
1 4 5
7
3 2 6
CTL
ANALOG
AUDIO
AES/EBU
USER SET
SDI
SDTI/1394
SG
INH
SCH
DVCPRO
50
DVCAM
SERVO
EDIT REC
TC
UB
=
Y PB PR
VIDEO
CMPST
SDI
SDTI/1394
SG 1 2
REMOTE 625
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
0
-4
-8
-12
-16
-20
-25
-30
-
L R
dB
CUE
-8
-12
-16
-20
-25
-30
-
L R
5 SERVO lamp
This lamp lights when the drum servo or capstan
servo locks.
6 Channel condition lamps
These lamps light to indicate the error rate status.
(green 5 white 5 red)
Green : This lights when the error rates for the video
and audio playback signals are both at
acceptable levels.
White : This lights when the error rate for the video
or audio playback level has increased.
The playback picture and sound remain
unaffected even while this lamp is lit.
Red : This lights when the error rate for the video
or audio playback level has increased to the
extent that correction or interpolation was
performed.
7 EDIT, EDIT REC, REC and REC INH lamps
EDIT:
This lights when an editing mode has been
selected.
EDIT REC:
This lights when the edit recording mode has
been established.
REC:
This lights when the recording mode has been
established.
REC INH:
This lights in the recording inhibit status (when
the REC INH switch at the bottom front panel is
set to ON or the cassette is in the accidental
erasure prevention status).
In this status, recording and editing are not
possible.
Whether the REC INH lamp is to light or flash
when recording has been inhibited by the
accidental erasure prevention tab on the
cassette tape can be selected using setup menu
No. 114 (REC INH LAMP).
