Getting Started 3
C. IDENTIFYING THE PARTS

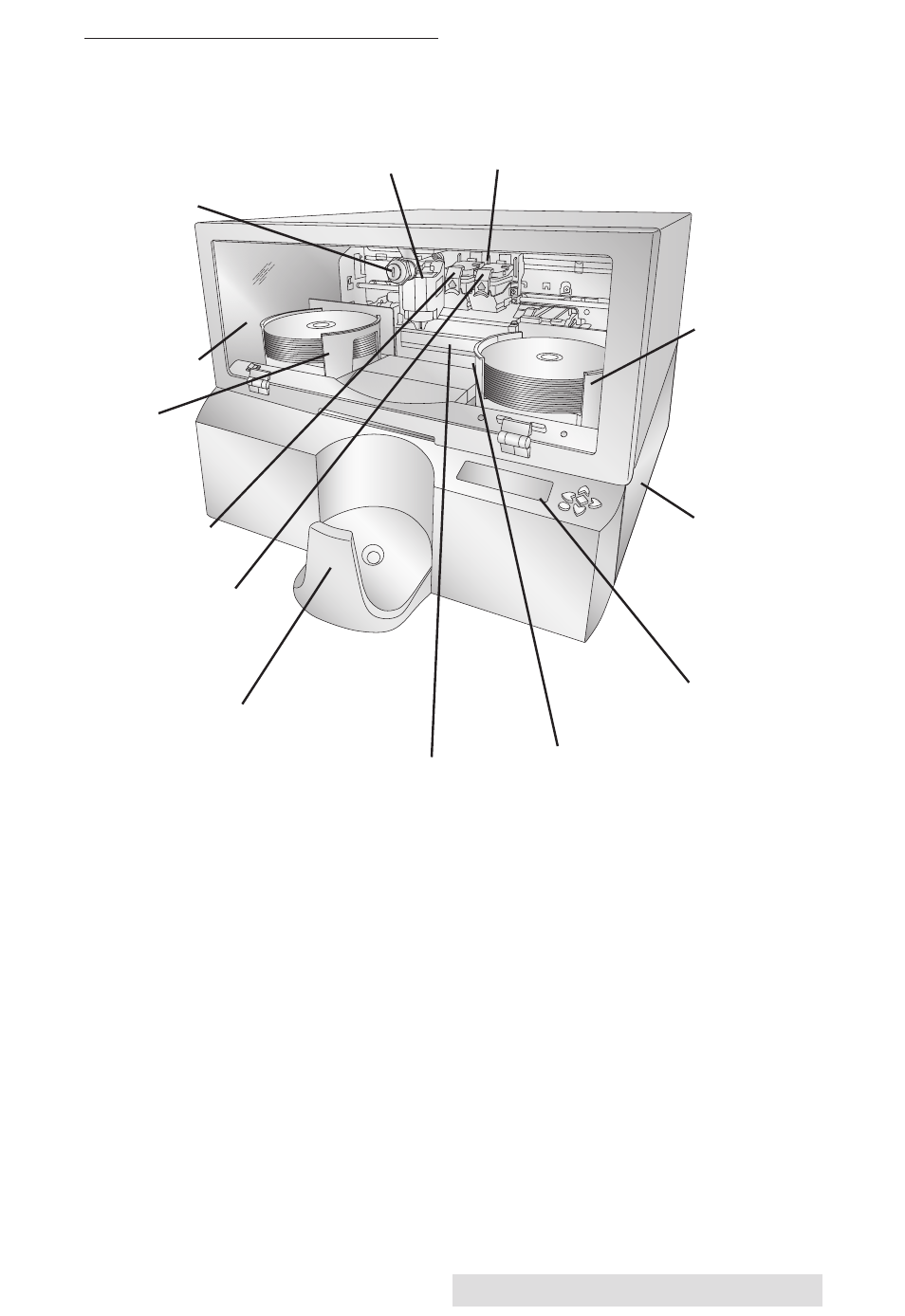

This illustration shows the XRn and its components.
The Robotic Disc Transporter moves discs from the left or
right Bin, to a CD/DVD Recorder, to the printer, and finally to
the Output Bin.
The CD/DVD Recorder is automatically loaded and unloaded
by the units's Robotic Disc Transporter.
The Recorder Tray Button manually opens or closes the
Recorder Tray. In normal operation, the in/out movement of
the Recorder Tray is controlled automatically and this button is
not used.
The Left and Right Bins are situated under the top cover of the
unit. Each bin can hold up to 25 discs. You can designate the
type of disc in each bin in the Administrator Utility
(Section 4A).
Color Cartridge
Black Cartridge
CD/DVD Recorders
Front Cover
LCD
Control Panel
Ink Cartridge Carrier Robotic Disc Transporter
Output Bin
Right Bin
Recorder Tray Button
CPU
Cover Lock
Left Bin
