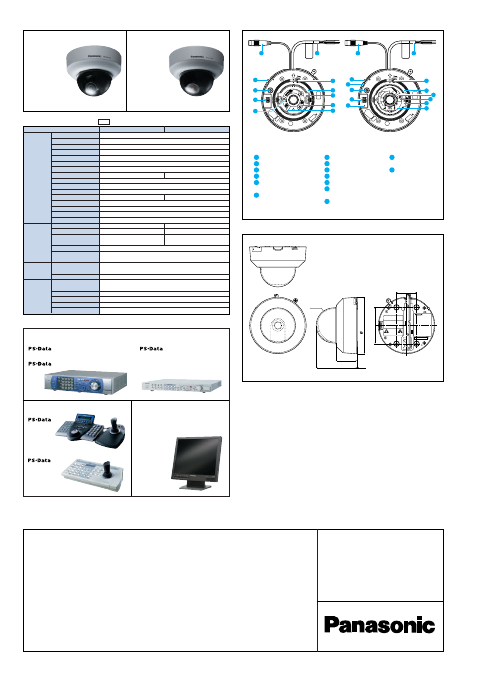

WV-CF284
WV-CF294
LOCK
TOP
ELC
ALC
BLC
OFF
ON
D/N
B.S.
LOCK
TOP
ELC
ALC
BLC
OFF
ON
D/N
B.S.
AF
9
10
2
1
11
1
11
3
4
5
7
6
8
15
14
8
9
10
2
12
13
3
4
7
Video Output Connector
Marker
Monitor Output Jack
Dip Switch
Focus Lock Lever
(WV-CF284 only)
Zoom Lock Lever
(WV-CF284 only)
1
2
3
4
5
6
Azimuth Adjuster
Tilting Table
Panning Table
Panning Table Lock Screw
Power Cable
AF Switch
(WV-CF294 only)
LED for AF
(WV-CF294 only)
7
8
9
10
11
12
13
Focus Lock Lever
(WV-CF294 only)
Zoom Lock Lever
(WV-CF294 only)
14
15
S T A N D A R D P R O D U C T C O N F I G U R A T I O N S
M A J O R O P E R A T I N G C O N T R O L S & T E R M I N A L S
O P T I O N A L C O M P O N E N T S & A C C E S S O R I E S
SR40
48
46
83.5
93
0.5
129.5
A P P E A R A N C E
Unit: mm
Digital Disk Recorders
WJ-HD316A
(16ch)
WJ-HD309A
(9ch)
Digital Disk Recorders
WJ-HD220
(8ch)
System Controllers
WV-CU650
System Controller
WV-CU360CJ
LCD AV Monitors
WV-LC1710
43.2cm (17")
WV-LD2000
50.8cm (20")
WV-LD1500
38.1cm (15")
Colour Dome Camera
WV-CF294
Colour Dome Camera
WV-CF284
• Auto Back Focus (ABF)
• 3.6x Variable Focal Lens
• 2x Variable Focal Lens
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic is the brandname of Matsushita Electric.
WV-JKCF294C(2N-764)
Printed in Japan
Panasonic System Solutions Company
Matsushita Electric Industrial Co.,Ltd.
4-3-1,Tsunashima-higashi, Kohoku-ku, Yokohama,
223-8639, Japan
Tel 81(0)45-540-5769
Fax 81(0)45-540-5773
URL http://panasonic.co.jp/pss/cctv/en/ index.html
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Scanning Frequency
Scanning Line
Horizontal Resolution
Minimum Illumination
Signal-to-Noise Ratio
White Balance
AGC/GAIN
Back Focus Adjustment
Light Control
Adaptive Black Stretch
Synchronization
Black and White Mode
Type
Focal Length
Angular Field of View
Focusing Range
Panning Range
Video Output
Monitor Output
Power Source and
Power Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Dimensions (D x H)
Weight (approx.)
Model No.
Camera
Lens
Input/Output
General
WV-CF294 WV-CF284
1/4-type interline transfer CCD
752 (H) x 582 (V)
2:1 interlace scan
3.6 (H) x 2.7 (V) mm (equivalent to scanning area of 1/4" pick-up tube)
Horizontal: 15.625 kHz Vertical: 50 Hz
625 lines
540 TV lines
0.9 lux at F1.3 (WIDE) 0.9 lux at F1.4 (WIDE)
50 dB (equivalent to AGC Off, Weight On)
ATW only
Always ON
ABF
-
ALC / ELC
ON / OFF with BLC ON / OFF
Internal (INT), Multiplexed Vertical Drive (VD2)
ON / OFF (No IR filter shifting)
3.6x variable focal lens
2.0x variable focal lens
2.8 ~ 10 mm
2.8 ~ 6.0 mm
H: 73.5° (WIDE) ~ 20.8° (TELE) H: 72.6° (WIDE) ~ 35.6° (TELE)
V: 54.4° (WIDE) ~ 15.6° (TELE) V: 54.0° (WIDE) ~ 26.7° (TELE)
1.2 m ~
∞
Panning range: +180° ~ -140° Tilting range: ±75°
Azimuth range: ±100°
1.0 V [p-p] / PAL composite 75
Ω / BNC Connector
Multiplexed VD2 capable
1.0 V [p-p] / 75
Ω / PAL composite signal / ø3.5 mm RCA jack
24 V AC 50 Hz, 2.7 W
12 V DC, 220 mA
-10 °C ~ +50 °C
90 % or less (no condensation)
ø 129.5 mm x 93 mm
460 g
S P E C I F I C A T I O N S
PAL
