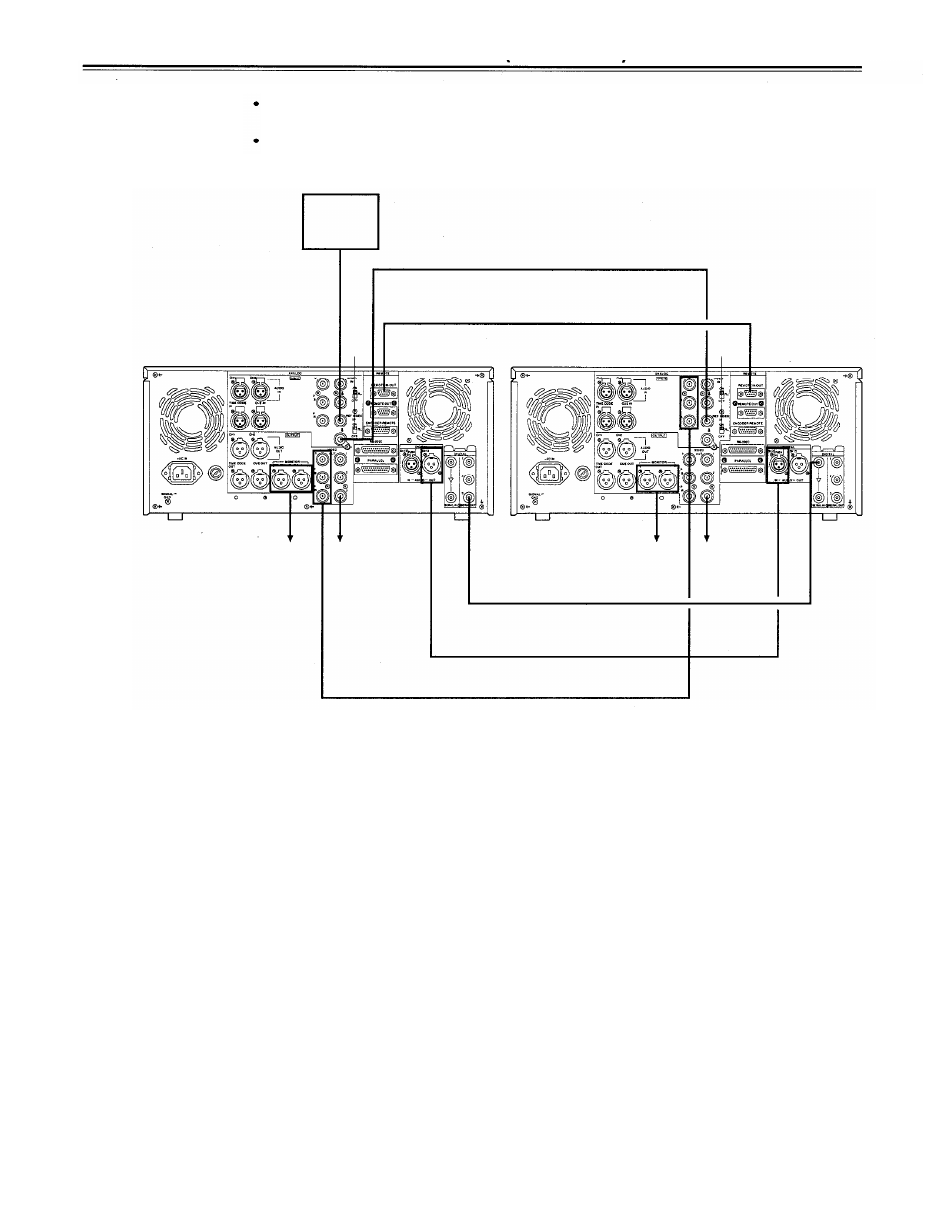

Connections when 2 units are used
(deck to deck)
Source machine:
Set the CONTROL switch on the front panel to REMOTE.
Recorder:
Set the CONTROL switch on the front panel to LOCAL.
Reference
Signal
generator
Source machine OFF
Remote control signal (9P)
Recorder ON
To audio monitor To video To audio monitor To video
device monitor device device monitor
device
Digital video/audio signal (option)
(Digital audio)
Analog video signal (component)
