Paxar 9856 User Manual
Page 14
2-2 Loading Supplies
4.

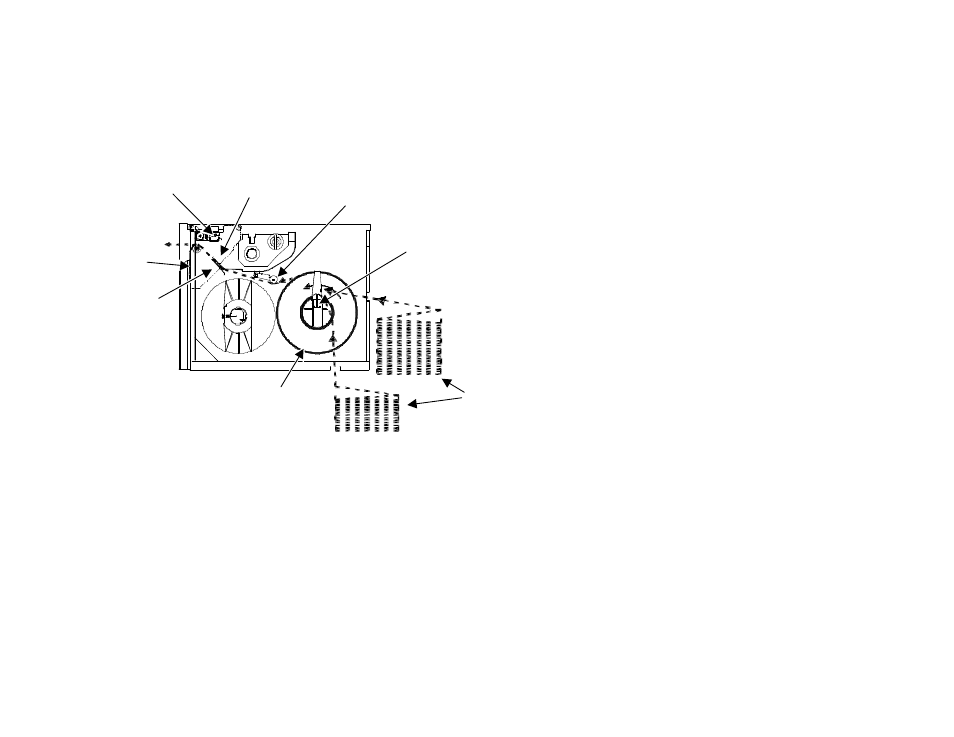

Thread the supply under the bouncer assembly and between the upper
and lower supply guides. Feed the supply until it exits the printhead
assembly through the front slot.
5.
Lower the printhead and close the printhead latch. Rotate the printhead
latch wing clockwise and snap it down to lock the printhead into position.
6.
Close the side access cover.
You may need to feed several labels to align the supply correctly.
Printhead
Latch
Tear Bar
Fan-fold
Roll Supply
Supply Hub
Upper Supply
Guide
Lower Supply
Guide
Bouncer
Assembly
