Controls and displays 03
26
En

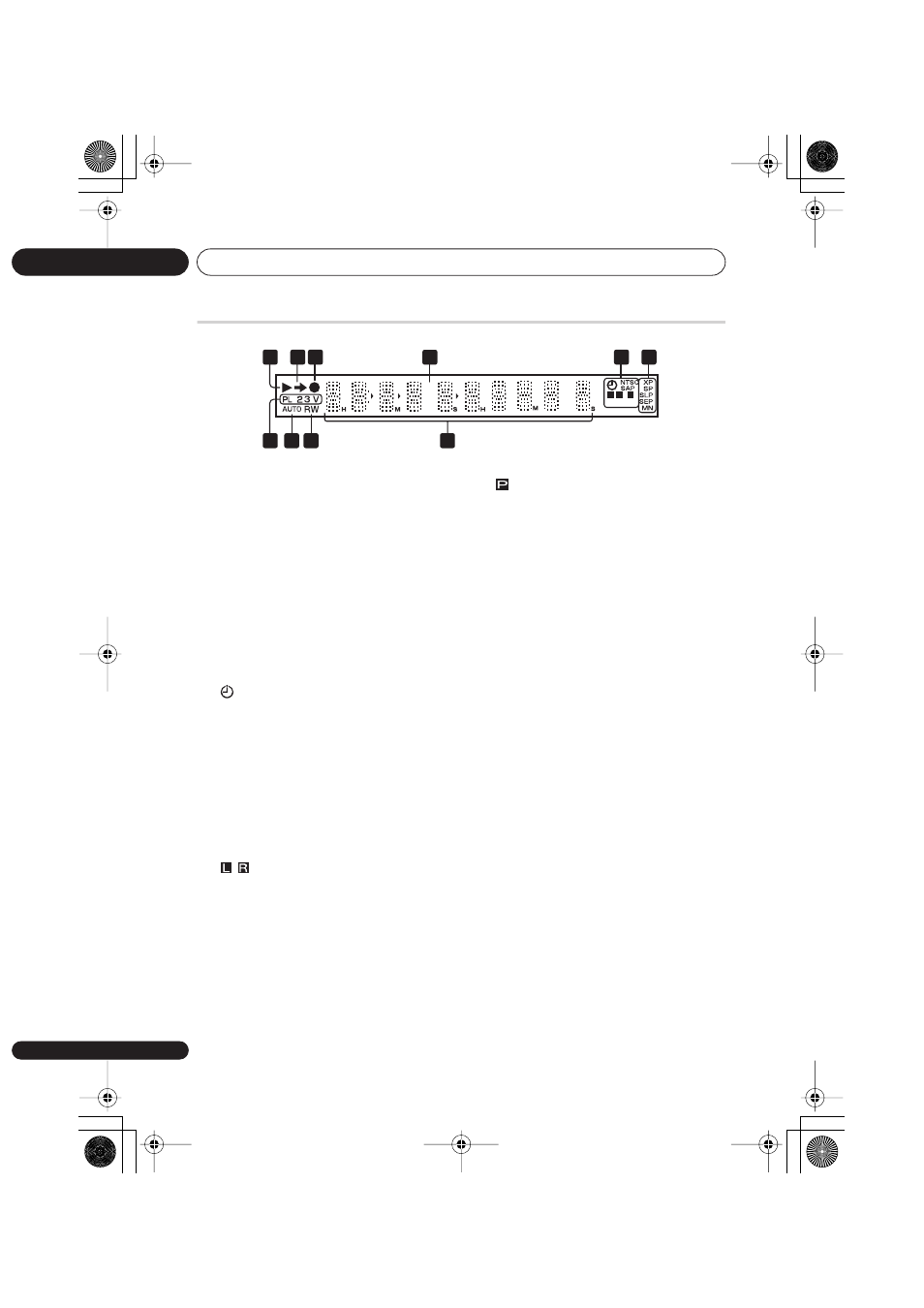

Display
1
Lights during playback; blinks when
playback is paused.
2
Lights when copying.
3 ì
Lights during recording; blinks when
recording is paused.
4 PM
Lights to indicate PM (after midday) for the
clock display.
5 (page 38)
Lights when a timer recording has been
set. (Indicator blinks if the timer has
been set to DVD but there isn’t a
recordable disc loaded, or the timer has
been set to HDD but the HDD is not
recordable.)
NTSC
Lights when the video output signal
format is NTSC.
(page 109)
Taiwan and Philippines model:
Indicates which channels are recorded
when dual mono is selected.
Other:
Indicates which channels of a bilingual
broadcast are recorded.
(page 108)
Lights when the component video output
is set to progressive scan (except in
some cases when a component is
connected using HDMI).
SAP (page 35) ( Taiwan and Philippines
model only )
Lights when the currently selected TV
channel has a Second Audio Program
channel.
6 Recording quality indicators (page 36)
XP
Lights when the recording mode is set to
XP (best quality).
SP
Lights when the recording mode is set to
SP (standard play).
LP / SLP
Lights when the recording mode is set to
LP (long play) or SLP (super long play).
EP / SEP
Lights when the recording mode is set to
EP (extended play) or SEP (super
extended play).
MN
Lights when the recording mode is set to
MN (manual recording level) mode.
7 Character display
8 R / RW
Indicates the type of recordable DVD loaded:
DVD-R or DVD-RW.
P R L
8 9 7
2 3 5 6 1
10
PM
4
