Connecting up 02
19
En
Connecting to a cable box or
satellite receiver (2)
If many or all the channels you receive by
cable or satellite are scrambled, we
recommend using this setup.
1
Using the setup on this page you can:
• Record any channel by selecting it on
the cable box/satellite receiver.
• Record using the Auto Start Recording
feature (see Automatic recording from a
satellite tuner on page 46).
Important
• Do not connect this recorder ‘through’
your VCR, satellite receiver or cable box.
Always connect each component
directly to your TV or AV amp/receiver.

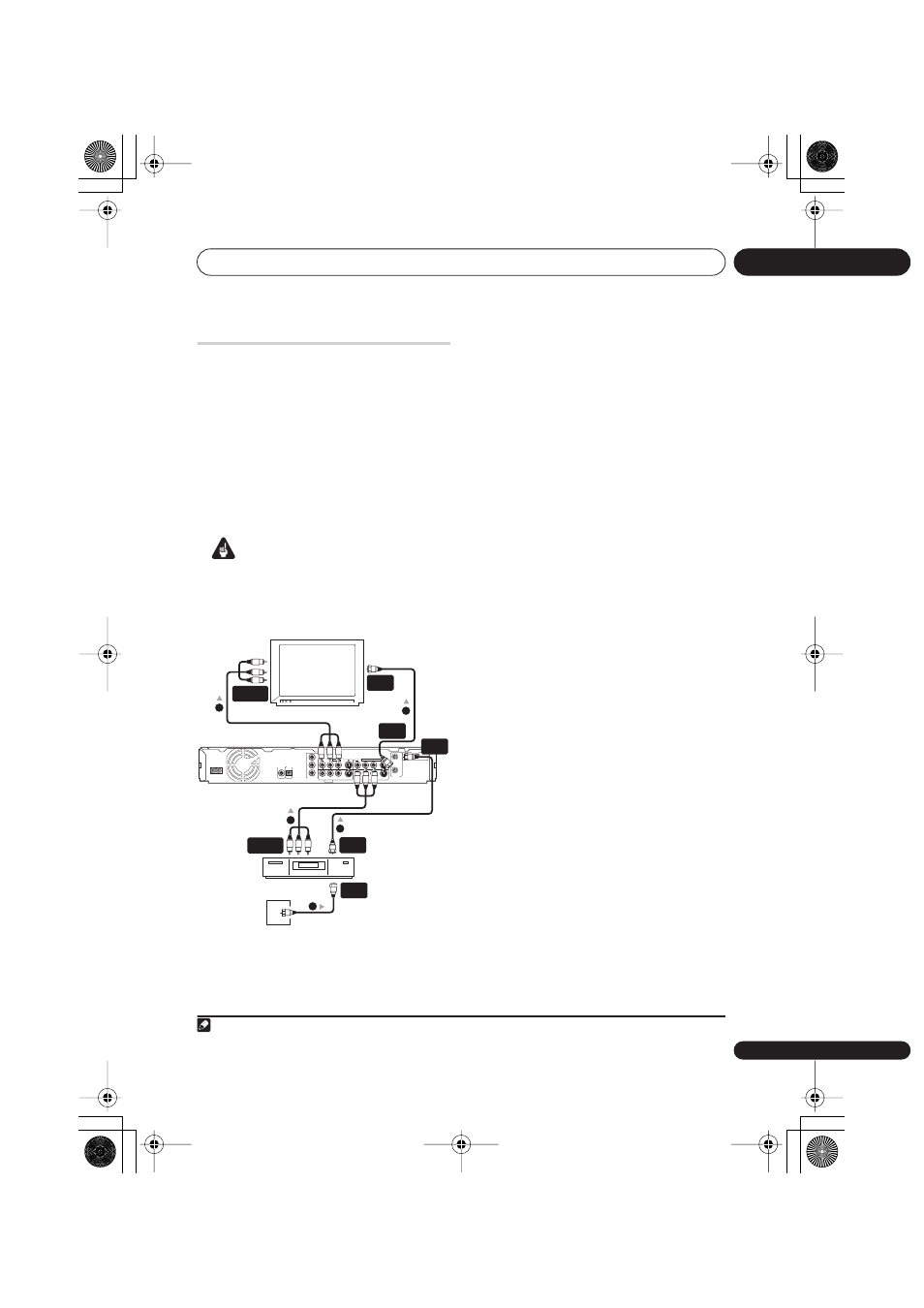

1 Connect RF antenna cables as shown.
This enables you to watch and record TV
channels.
2 Connect the AUDIO and VIDEO
OUTPUT jacks (1 or 2) on this recorder to
a set of audio/video inputs on your TV
using a set of A/V cables (as supplied).
This enables you to watch discs.
3 Connect the audio/video output of
your cable box/satellite receiver to the
INPUT jacks on this recorder using a set
of A/V cables.
This enables you to record scrambled TV
channels.
Note
1 • The setup on this page does not allow you to watch one channel and record another.
• The diagram shows standard video connections, but you can alternatively use the S-video or component video
connections if they’re available.
TV
AC IN
S-VIDEO VIDEO AUDIO
L R
OUTPUT 2 COMPONENT VIDEO OUT
Y
P B
P R ANTENNA
IN
OUT
COAXIAL IN
CONTROL DIGITAL OUT
OUTPUT 1
VIDEO AUDIO
L R
INPUT 3
OUTPUT 1 INPUT 1/AUTO START REC
S-VIDEO
HDMI OUT
Cable box/
Satellite receiver
Antenna/cable TV
wall outlet
ANTENNA
IN
ANTENNA
OUT
ANTENNA
OUT
ANTENNA
IN
ANTENNA
IN (RF IN)
AUDIO/VIDEO
OUTPUT
AUDIO/VIDEO
INPUT
1
1
1
2
3
