ParkerVision WR1500 - Manual (Page 168)

WR1500
4-Port Wireless DSL/Cable Router
®
170
Windows 2000/XP - Continued
6. If you do not know your gateway’s IP
address, remove any previously installed
gateways in the IP Settings tab and
click OK.
Do one or more of the following if you want to
confi gure additional IP addresses:

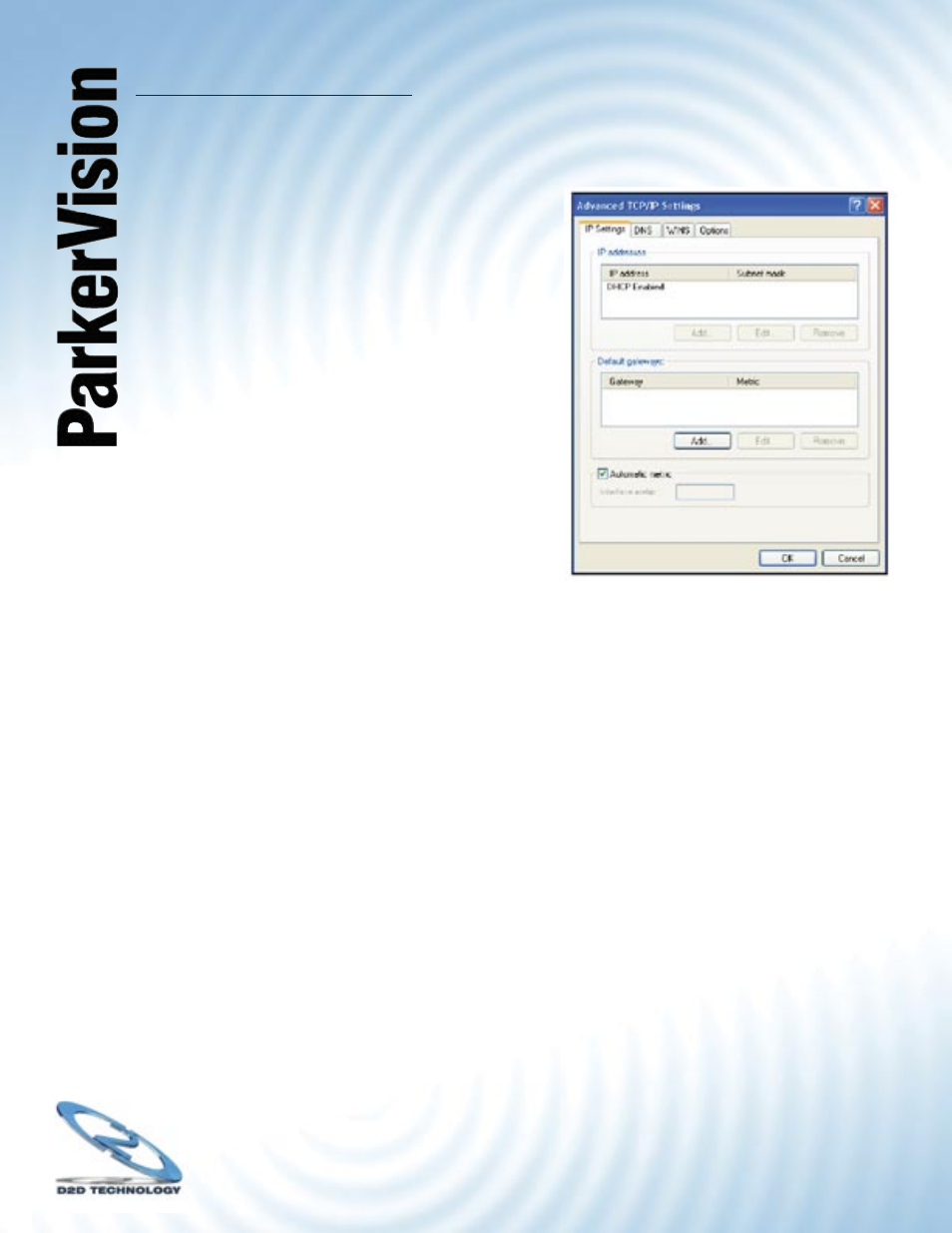

-In the IP Settings tab, in IP addresses, click Add.
-In TCP/IP Address, type an IP address in IP
address and a subnet mask in Subnet mask, and
then click Add.
-Repeat the above two steps for each IP address
you want to add.
-Confi gure additional default gateways in the IP
Settings tab by clicking Add in Default gateways.
-In TCP/IP Gateway Address, type the IP address of the default gateway in Gateway.
To manually confi gure a default metric (the number of transmission hops), clear the Automatic
metric check box and type a metric in Metric.
-Click Add.
-Repeat the previous three steps for each default gateway you want to add.
-Click OK when fi nished.
