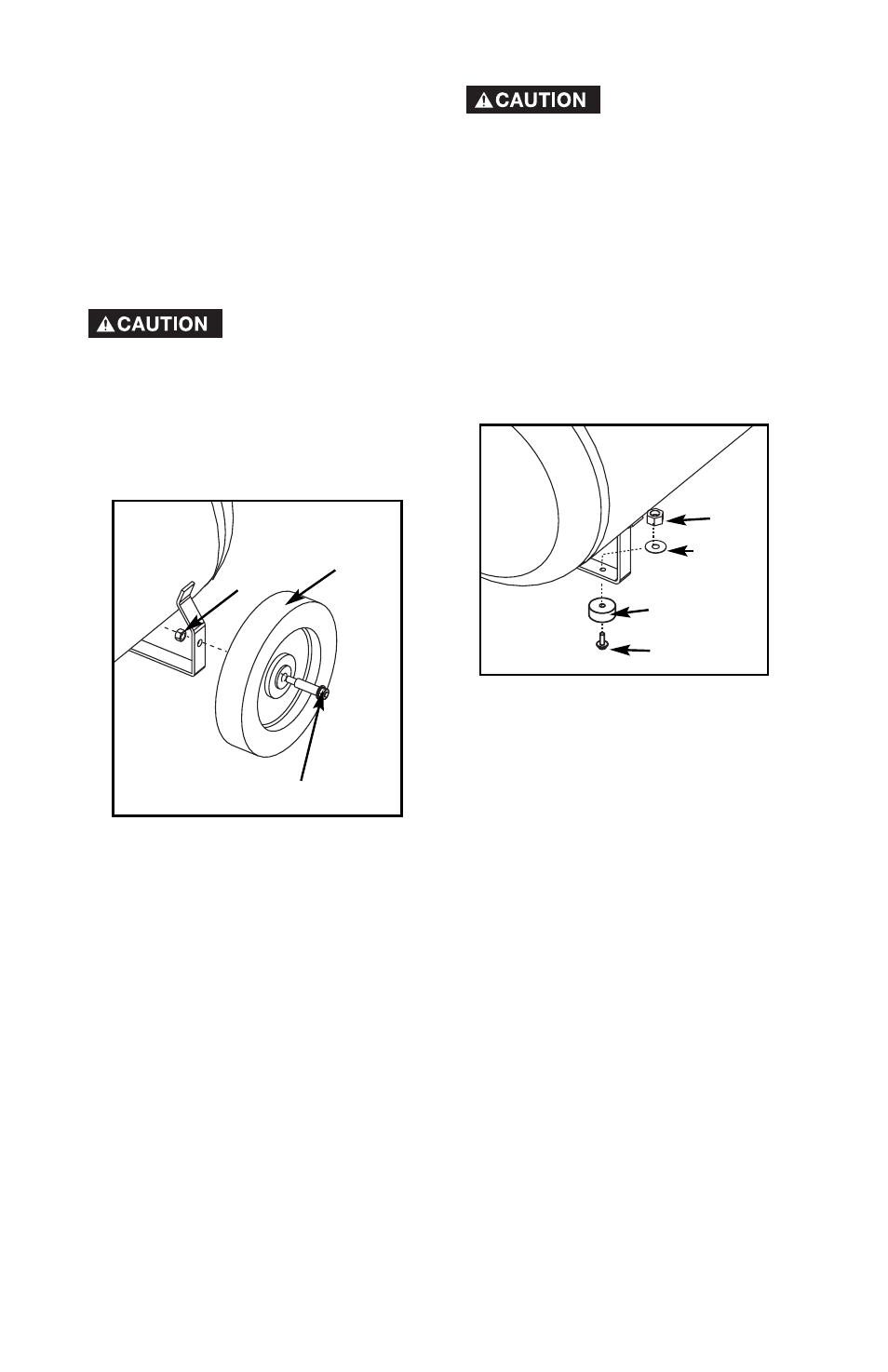

To Assemble Wheels

It will be necessary
to brace or support

one side of the unit when installing
the wheels because the
compressor will have a tendency to
tip.

1.

Attach wheels with shoulder
bolts and nuts as shown.

2.

Tighten securely. NOTE: The unit
will sit level if the wheels are
properly installed.

Wheel

Shoulder Bolt

Nut

The wheels and
handle do not

provide adequate clearance,
stability or support for pulling the
unit up and down stairs or steps.
The unit must be lifted, or pushed
up a ramp.

6.

If the handle has excessive
movement, it is improperly
installed. Check the following.
A.

Are both tabs inside the
handle (Step #3)?

B.

Does each clip pass through
both the saddle and handle
(Step #4)?

Assemble Rubber Feet

1.

Attach rubber feet with the
screws, washers, and nuts
provided as shown.

2.

Tighten securely.

Screw

Nut

Flat
Washer

Rubber Foot
